Nokia 8310 - 1 Exploded View

PAGE 4 (28) Approved 2.0
Nokia Mobile Phones Customer Care E&A SQX 00288-en MWy
Technical Services Repair Concepts
Confidential
01.10.2001

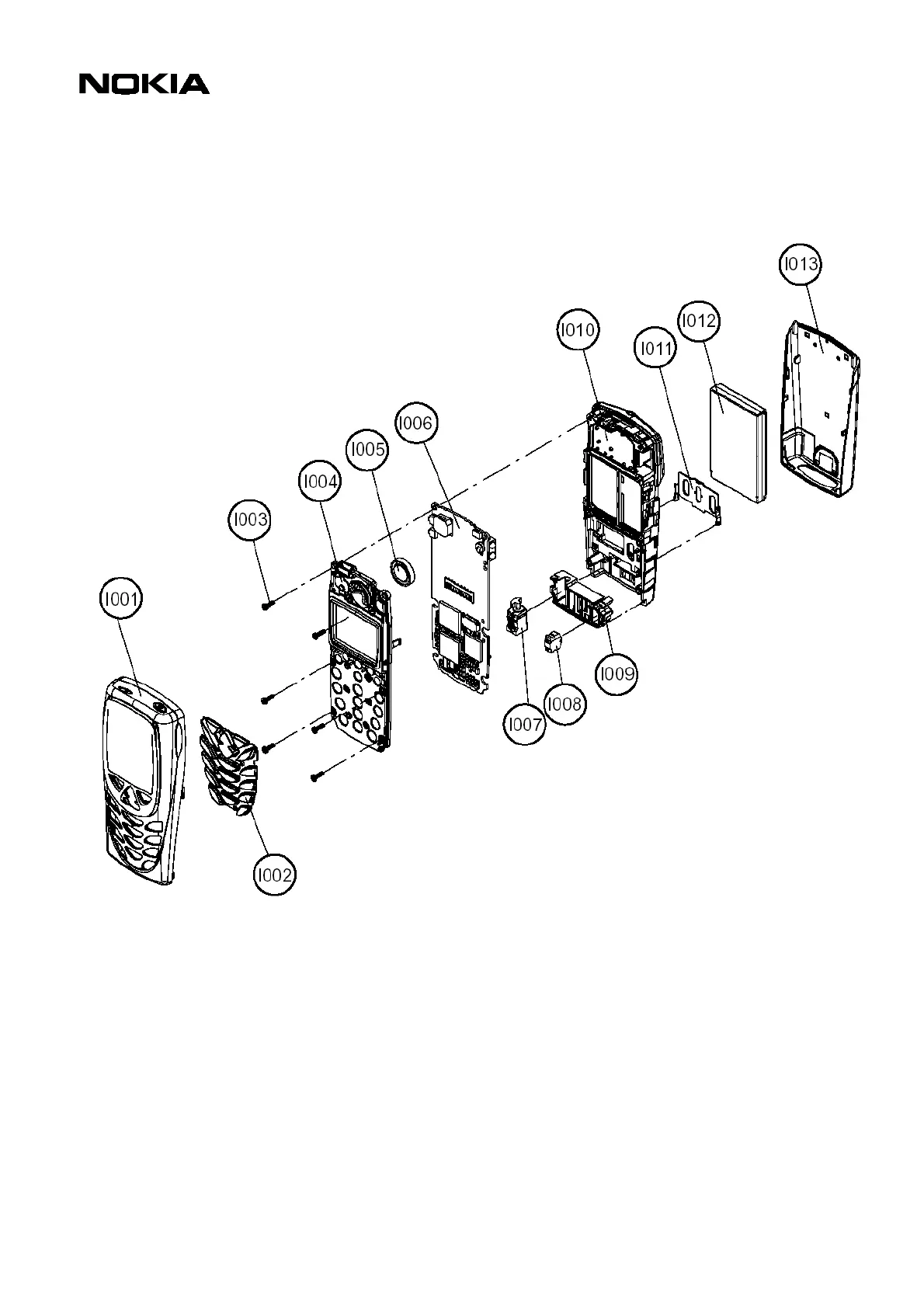

1. EXPLODED VIEW
Description: See corresponding ITEM/CIRCUIT REF of the BOR (Bill Of Repair)
Service Manual 8310 Level 2 Copyright 2001 © Nokia Mobile Phones
