Nokia C1-02

Nokia C1-
02
RM-643 / RM-644
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

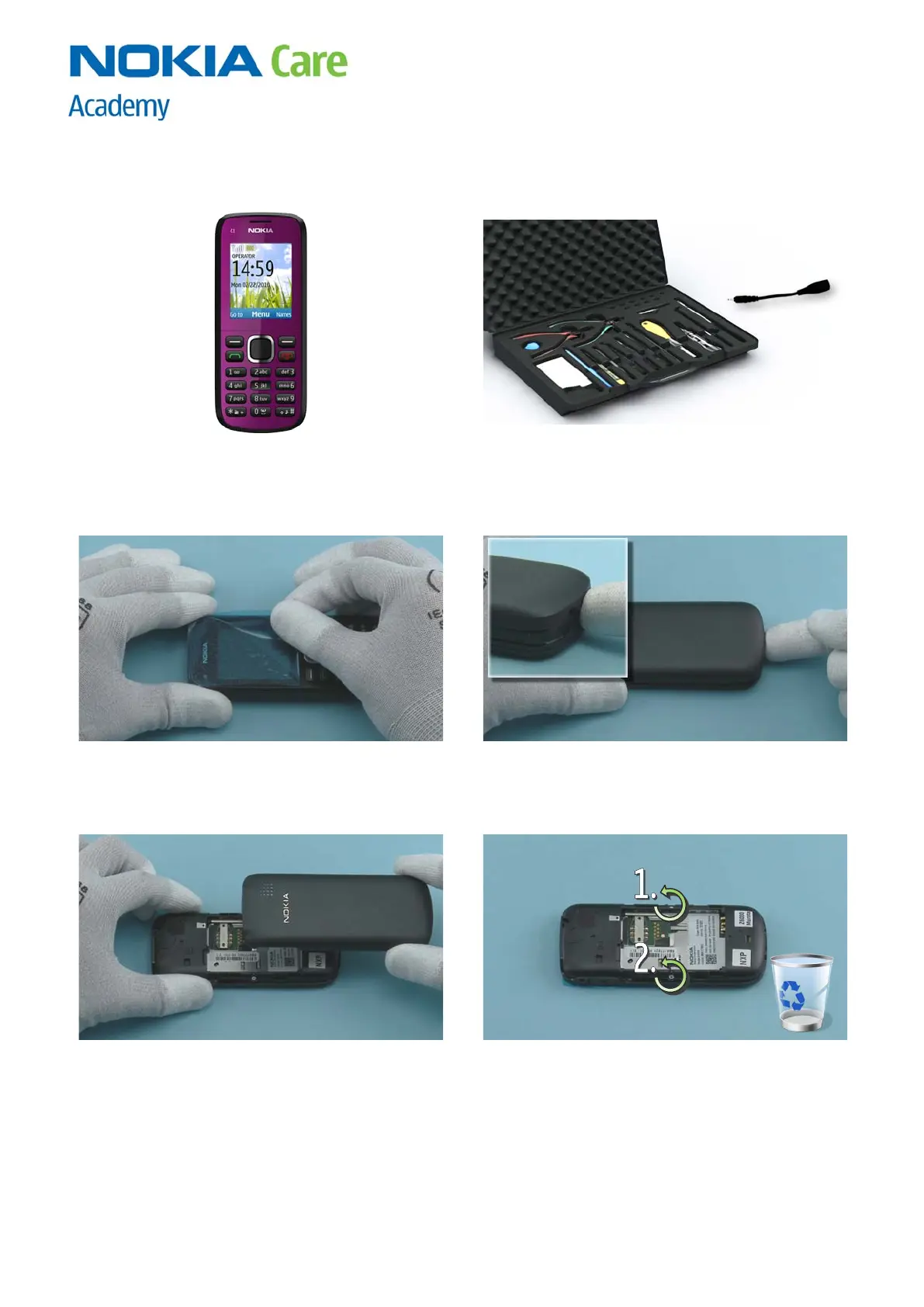

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C1-02 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the DC plug.
3) Protect the A-COVER with the protective film. 4) Open the BATTERY COVER by using the release
notch.
5) Remove the BATTERY COVER. 6) Unscrew the two Torx+ size 4 screws. Do not use
them again. Discard them.
