Nokia C1-02 Service Manual

Nokia C1-
02
RM-643 / RM-644
Service Manual Level 1&2
9 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

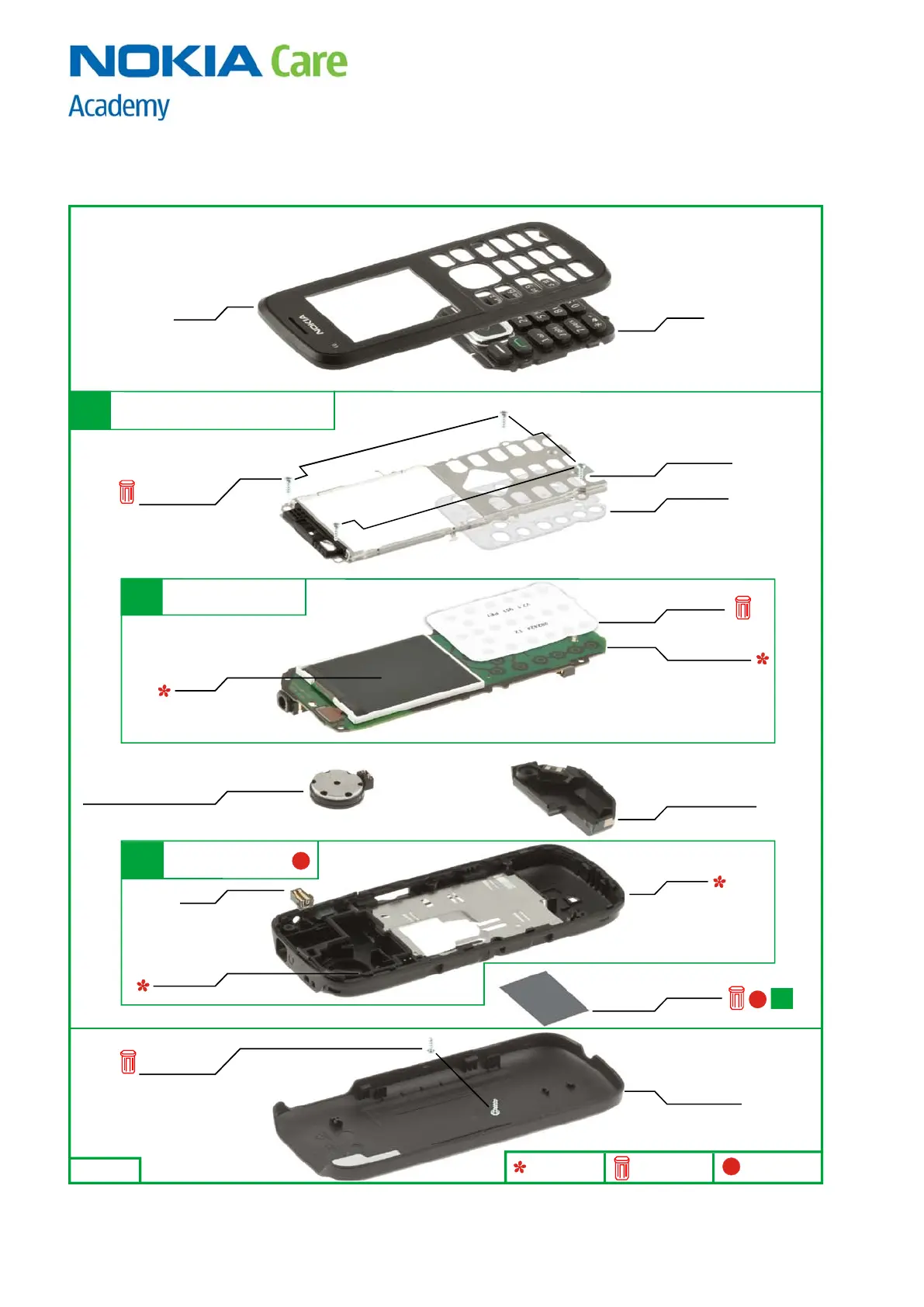

6. EXPLODED VIEW
A1
ATO SWAP PACKAGE
(I0003 - I0005, A2, I0010, A3, I0014)
A2
LIGHT SWAP PACKAGE
(I0006 - I0009)
A3
D-COVER ASSEMBLY
(I0011 - I0013)
Ver. 1.0
A-COVER
I0001
SCREW TORX+ 6
RF 1.6x4.5
I0003
BATTERY COVER
I0016
SCREW TORX+ 4
RF 1.6 x 4.5
I00015
TYPE LABEL
I0009
UI SHIELDING
I0005
KEYMAT
I0002
ANTENNA MODULE
I0010
D-COVER
I0013
DOMESHEET
I0007
LIGHT SWAP PWB
I0008
LIGHT GUIDE
I0004
EARPIECE / SPEAKER / VIBRA
I0014
DISPLAY
I0006
DC JACK
I0011
BT ANTENNA
I0012
A2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
L3

Nokia C1-02 Specifications

General

Display	TFT, 65K colors
Battery	Removable Li-Ion 1020 mAh battery (BL-5C)
Weight	78 g (2.75 oz)
SIM	Mini-SIM
Network	GSM 900 / 1800
Bluetooth	No
Radio	FM radio
USB	No
Status	Discontinued
Stand-by	Up to 504 h
Talk time	Up to 10 h 40 min
Alert types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	No
Browser	WAP 2.0/xHTML
Games	Yes
Camera	No
Dimensions	108 x 45 x 13.8 mm
Announced	2010, June
Colors	Black, Red, Blue
Messaging	SMS, MMS, Email
Java	Yes
