Nokia C2-02 /C 2-07 (RM-692/RM-693)
Nokia C2-03 /C 2-06/C 2-08 (RM-702)
L1L2 Service Manual
13
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rs ion 1 .0

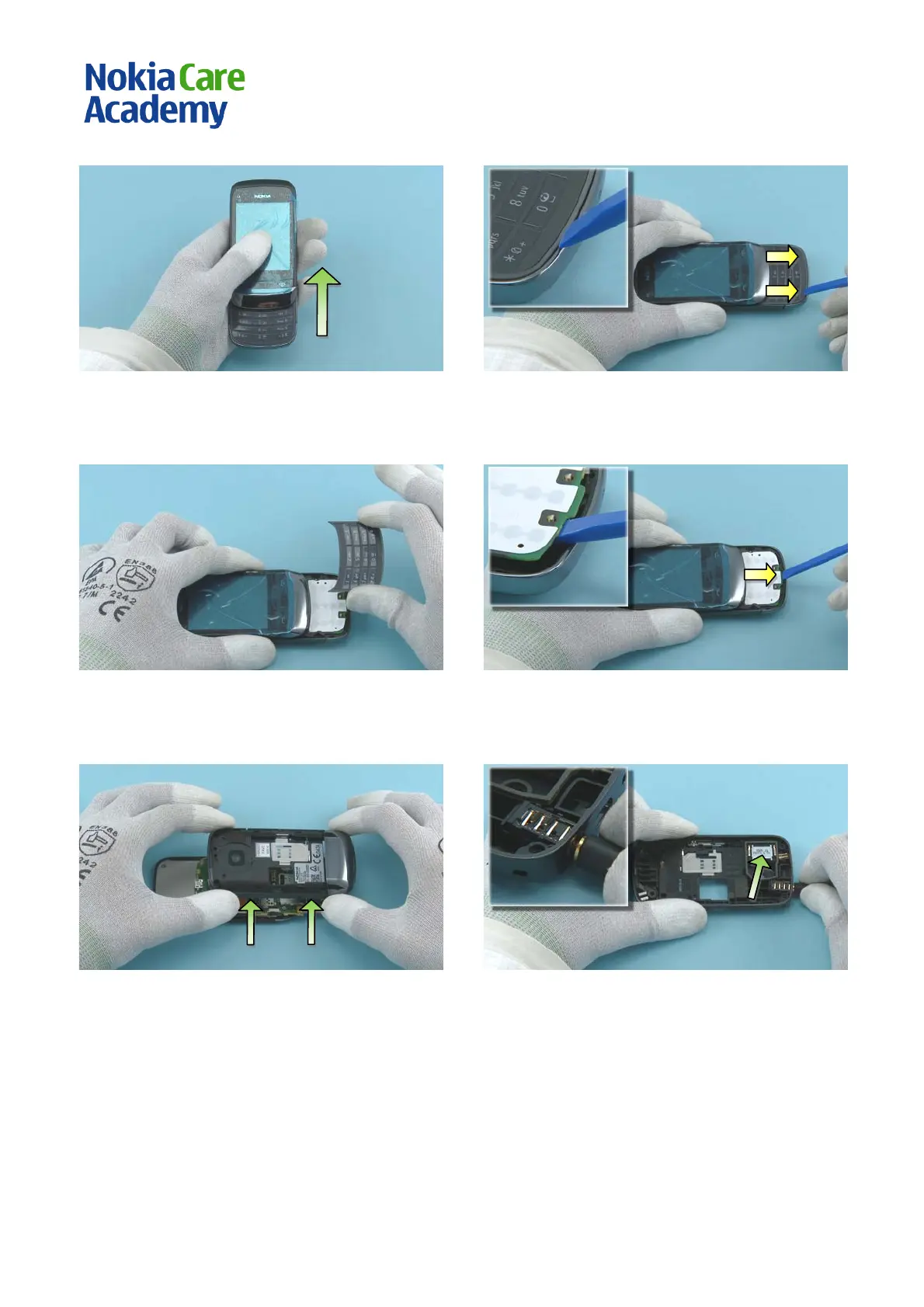

7) Slide the phone open.
8) Use the SS-93 to release the KEYMAT.
9) Remove the KEYMAT.
10) Use the SS-93 to release the D-COVER from the
shown place.
11) Turn the phone over and lift up the D-COVER.
12) Release the AV JACK with an AV plug.
