Nokia C2-02 /C 2-07 (RM-692/RM-693)
Nokia C2-03 /C 2-06/C 2-08 (RM-702)
L1L2 Service Manual
9
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rs ion 1 .0

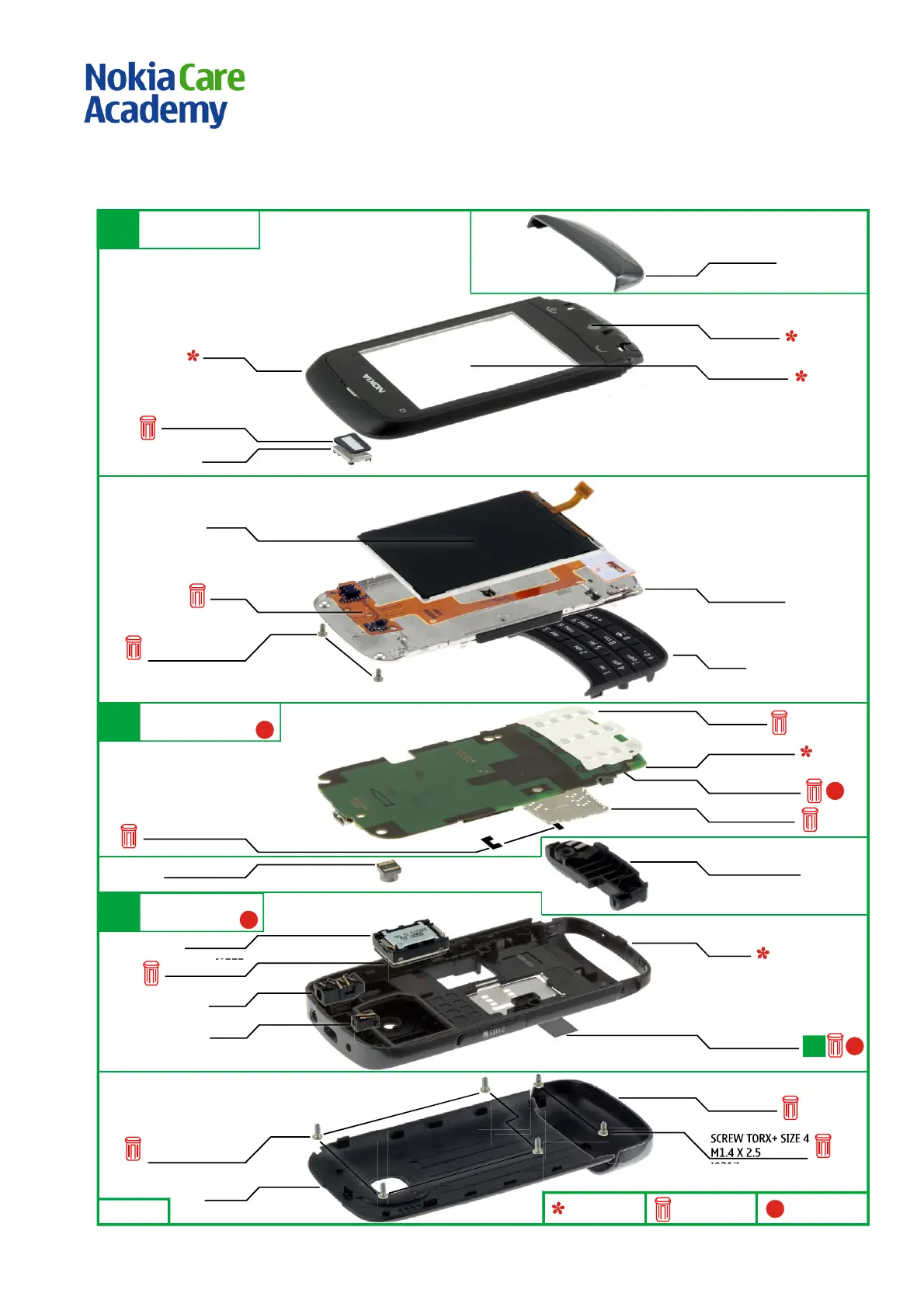

6. EXLPODED VIEW
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
Ver. 1.0
L3
A2
L3
L3
EARPIECE
I0005
SCREW TORX+ SIZE 4
M1.4 X 2.5
I0103
AV JACK
I0210
TOUCH WINDOW
I0002
A-COVER DECO
I0001
SLIDER MODULE
I0102
DOMESHEET
I0202
LIGHT SWAP PWB
I0203
FUNCTION KEY
I0003
CAMERA MODULE
I0208
D-COVER
I0214
ANTENNA MODULE
I0209
DC JACK
I0211
UI FLEX
I0101
KEYMAT
I0201
BB SHIELDING LID
I0204
SIM PROTECTIVE TAPE
I0206
B-COVER DECO
I0215
SCREW TORX+ SIZE 4
M1.4 X 3.2
I0216
SCREW TORX+ SIZE 4
M1.4 X 2.5
I0217
B-COVER
I0218
EARPIECE GASKET
I0006
IHF SPEAKER
I0212
BLANK TYPE LABEL
I0207
DISPLAY
I0007
SPEAKER GASKET
I0213
FEM SHIELDING LID
I0205
A-COVER
I0004
A2
LIGHT SWAP PACKAGE
(I0202 - I0207)
A1
A-COVER ASSEMBLY
(I0002 - I0006)
A3
D-COVER ASSEMBLY
(I0210 - I0214)
L3
