Nokia C2-02 - Disassembly Instructions

Nokia C2-02 /C 2-07 (RM-692/RM-693)
Nokia C2-03 /C 2-06/C 2-08 (RM-702)
L1L2 Service Manual
12
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rs ion 1 .0

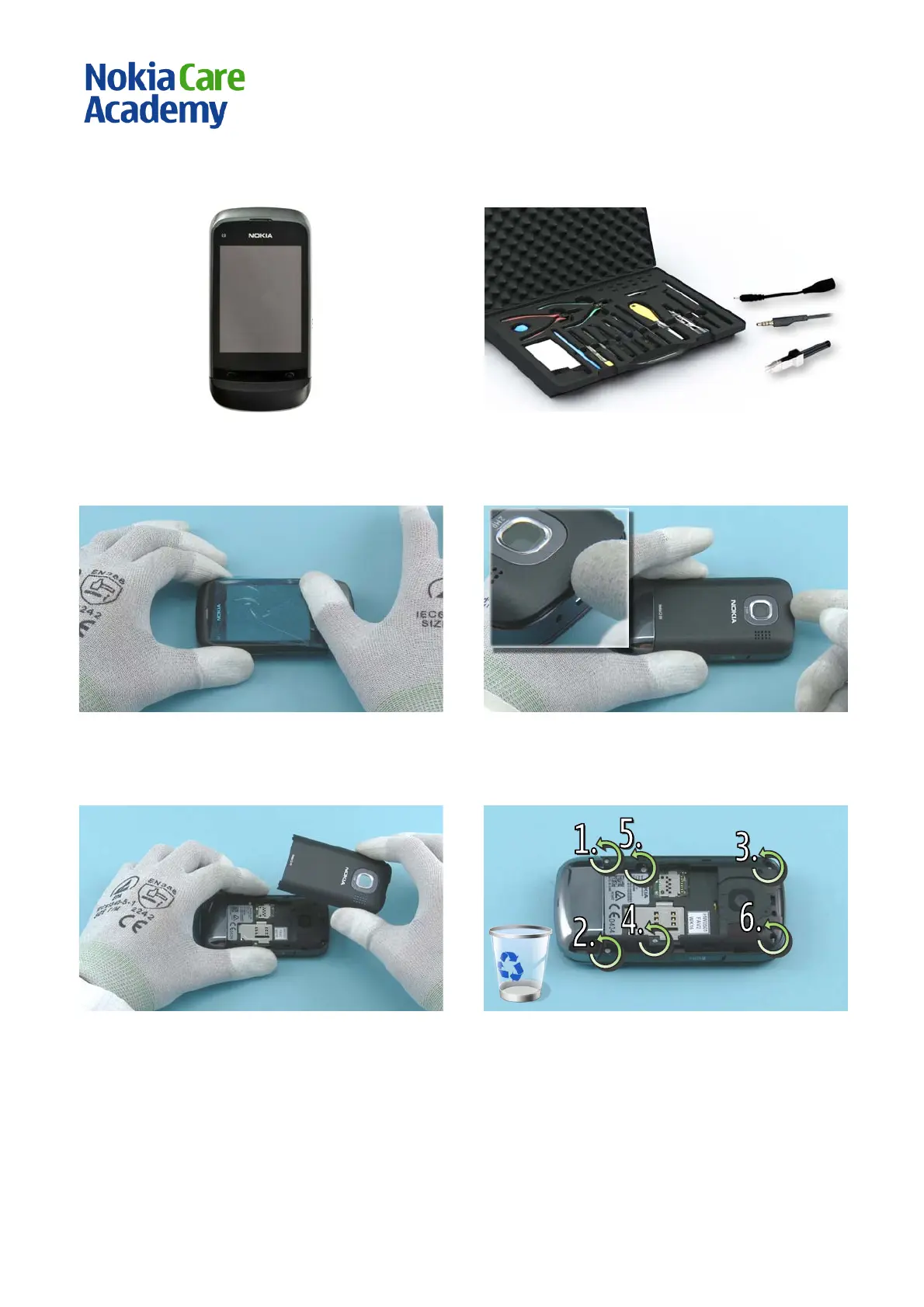

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C2-03 disassembly.
2) You must use the Nokia Standard Toolkit version
2. You will also need a DC plug, an AV plug and the
camera removal tool SS-88.
3) Protect the A-COVER TOUCH WI NDOW with
protective film.
4) Open the BATTERY COVER by using the release
notch.
5) Remove the BATTERY COVER.
6) Unscrew the six TORX+ size 4 screws in the order
shown. Do not use them again. Discard them.
