Nokia C2-02 - Assembly Hints

Nokia C2-02 /C 2-07 (RM-692/RM-693)
Nokia C2-03 /C 2-06/C 2-08 (RM-702)
L1L2 Service Manual
20
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rs ion 1 .0

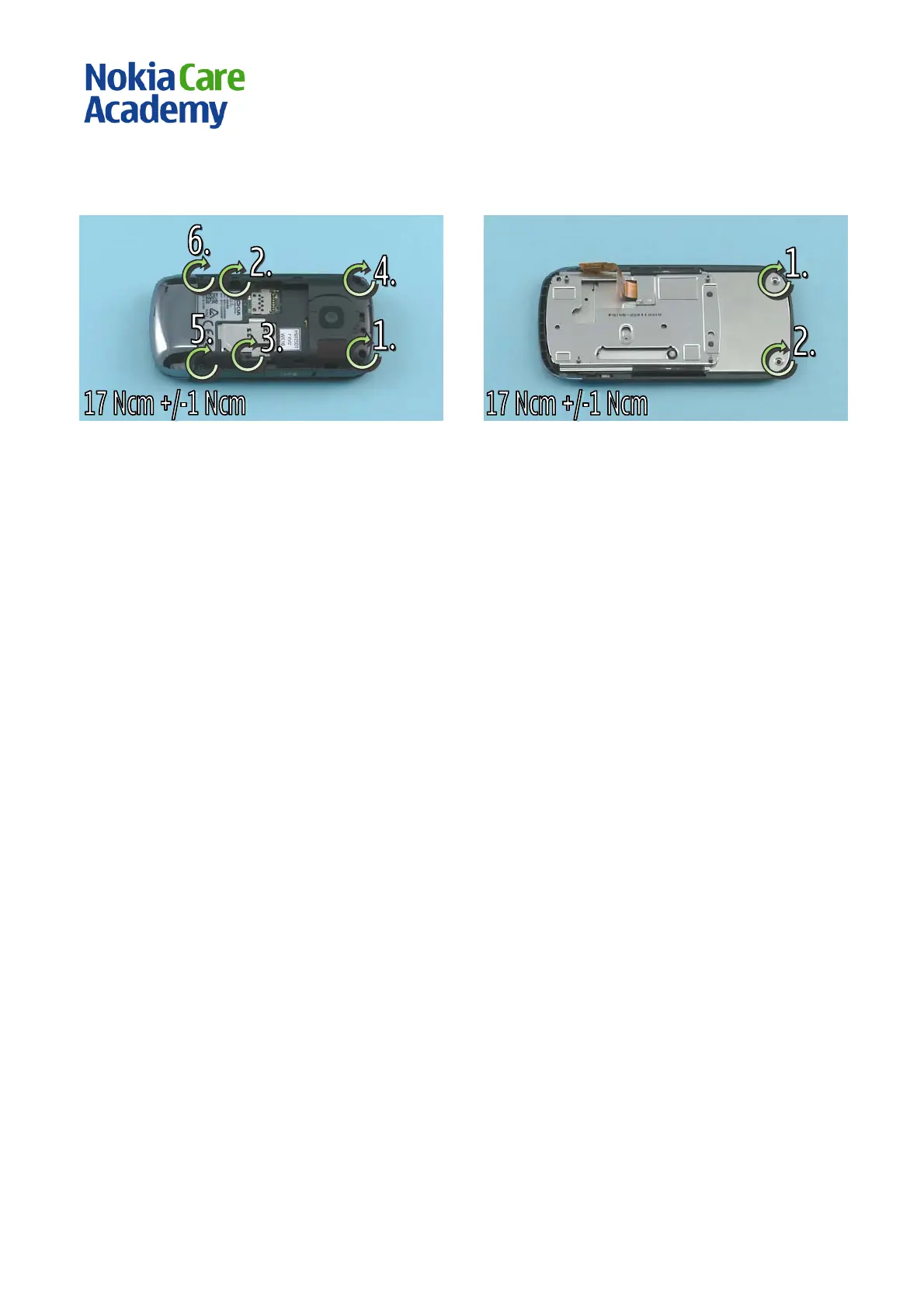

10. ASSEMBLY HINTS
1) Tighten the six TORX+ size 4 screws to the torque
of 17 Ncm +/-1 Ncm.
2) Tighten the two TORX+ size 4 screws to the torque
of 17 Ncm +/-1 Ncm.
