Nokia C2-02 /C 2-07 (RM-692/RM-693)
Nokia C2-03 /C 2-06/C 2-08 (RM-702)
L1L2 Service Manual
19
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rs ion 1 .0

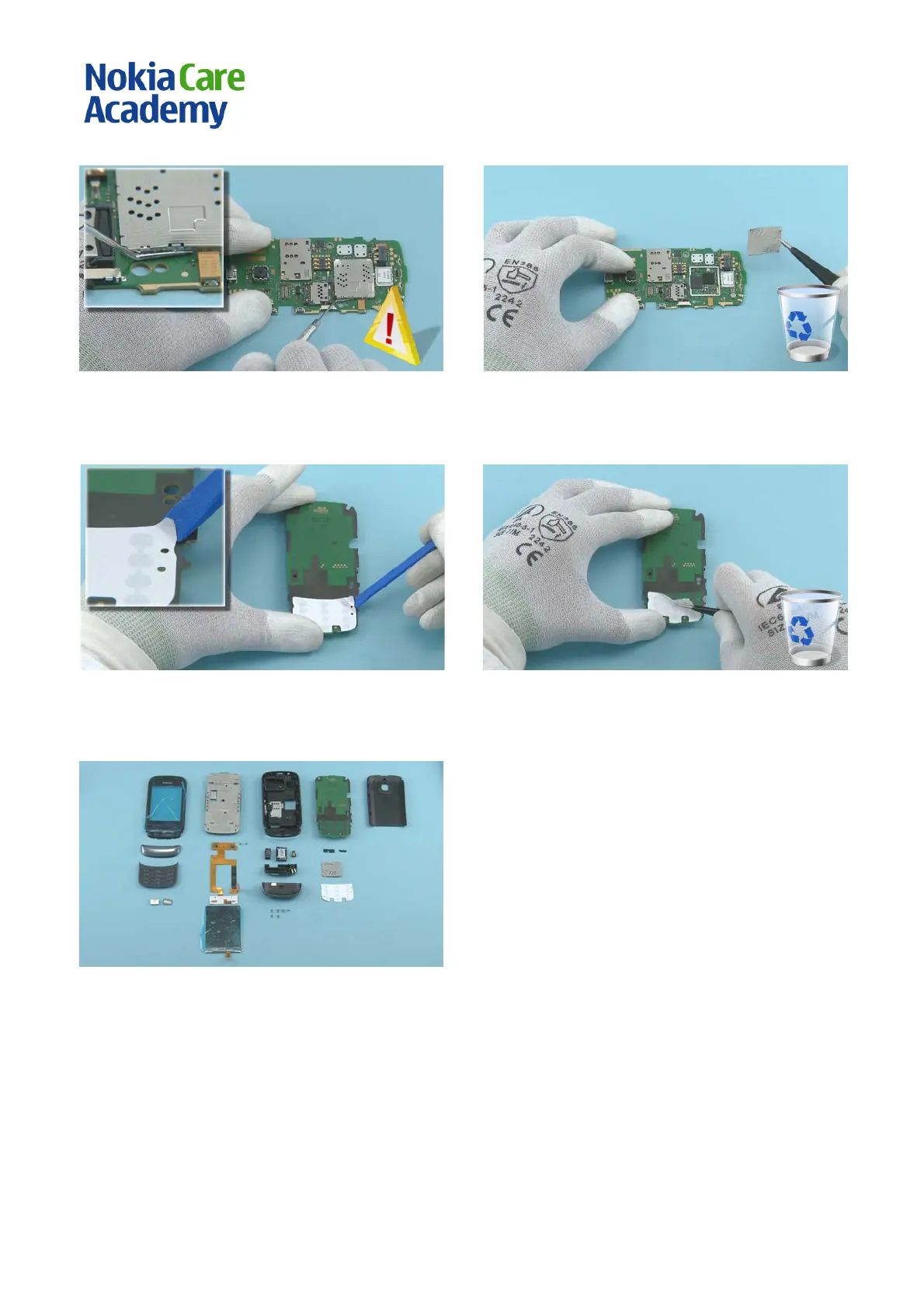

43) Lever out the BB SHIELDI NG LID with the dental
tool. Be careful not to damage any nearby
components.
44) Remove the BB SHIELDING LID with the tweezers.
Do not use it again. Discard it.
45) Release the DOMESHEET with the SS-93.
46) Peel off the DOMESHEET with the tweezers. Do
not use it again. Discard it.
47) The Nokia C2-03 disassembly is now complete.
-END OF DISASSEMBLY-
