Nokia C3-01 Service Manual

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
14 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

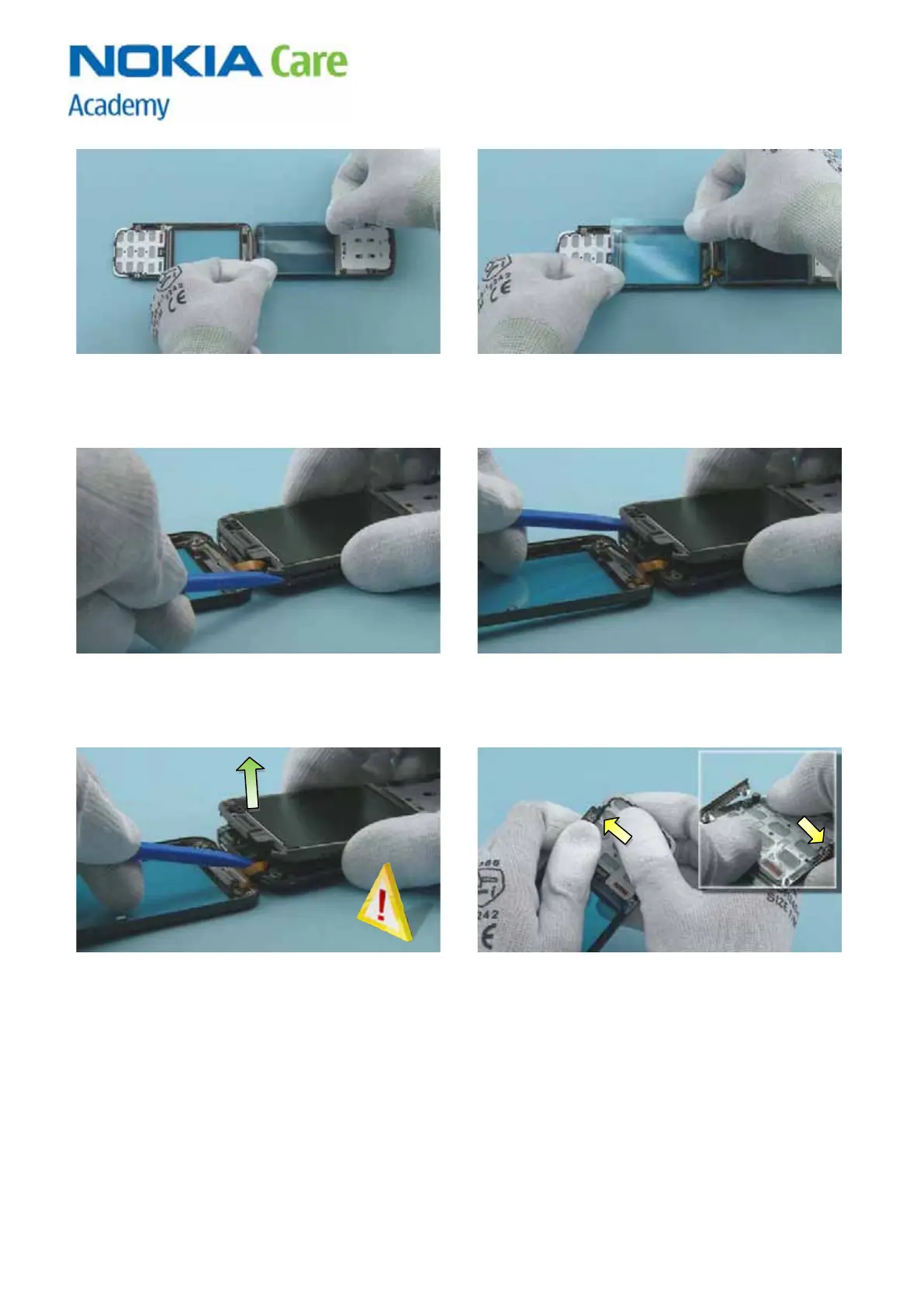

13) Protect the DISPLAY with protective film. 14) Protect also the other side of the TOUCH PANEL
with protective film.
15) Use the SS-93 to detach the top end of the
DISPLAY CARRIER.
16) Detach also the other side of the top end.
17) Hold the DISPLAY CARRIER in a lifted position as
shown. Disconnect the touch panel connector
carefully with the SS-93. Be careful not to damage
the connector or nearby components.
18) Push the corner of the KEYMAT as shown to
detach the clip holding it. Release also the clip on
the other corner. Pull out the KEYMAT and remove it.
