Nokia C3-01

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
17 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

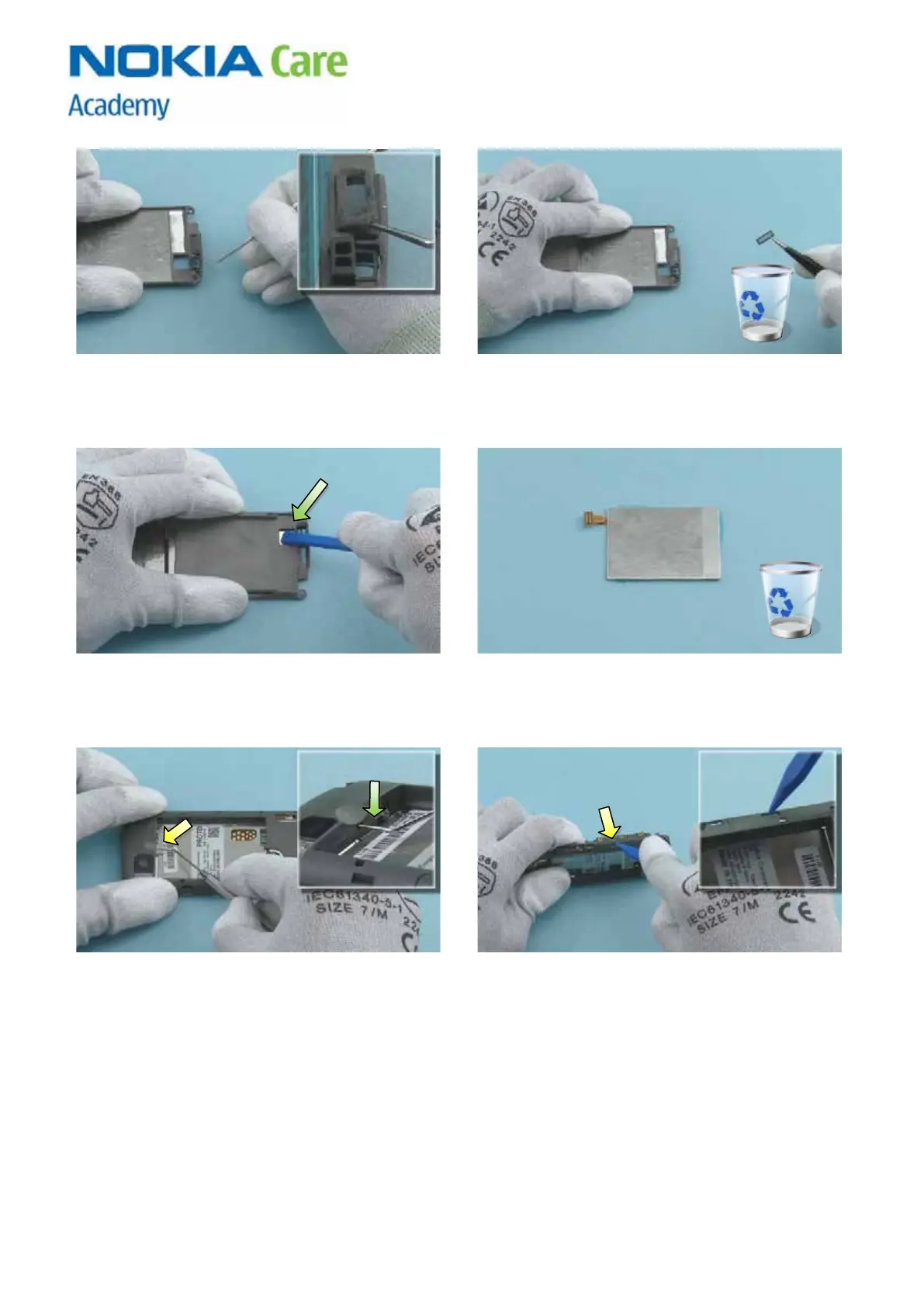

31) Use the dental tool to detach the EARPIECE NET.
32) Remove the EARPIECE NET with the tweezers.
Discard it.
33) Push the SS-93 through the opening on the back
side of the DISPLAY CARRIER to release the DISPLAY.
34) Discard the DISPLAY. Do not use it again.
35) Place the tip of the dental tool through the hole
in the B-COVER. Push down to detach the clip
holding the ENGINE BOARD.
36) Release the SIDE-KEY PWB by pushing the clip
shown with the sharp end of the SS-93.
