Nokia C3-01

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
16 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

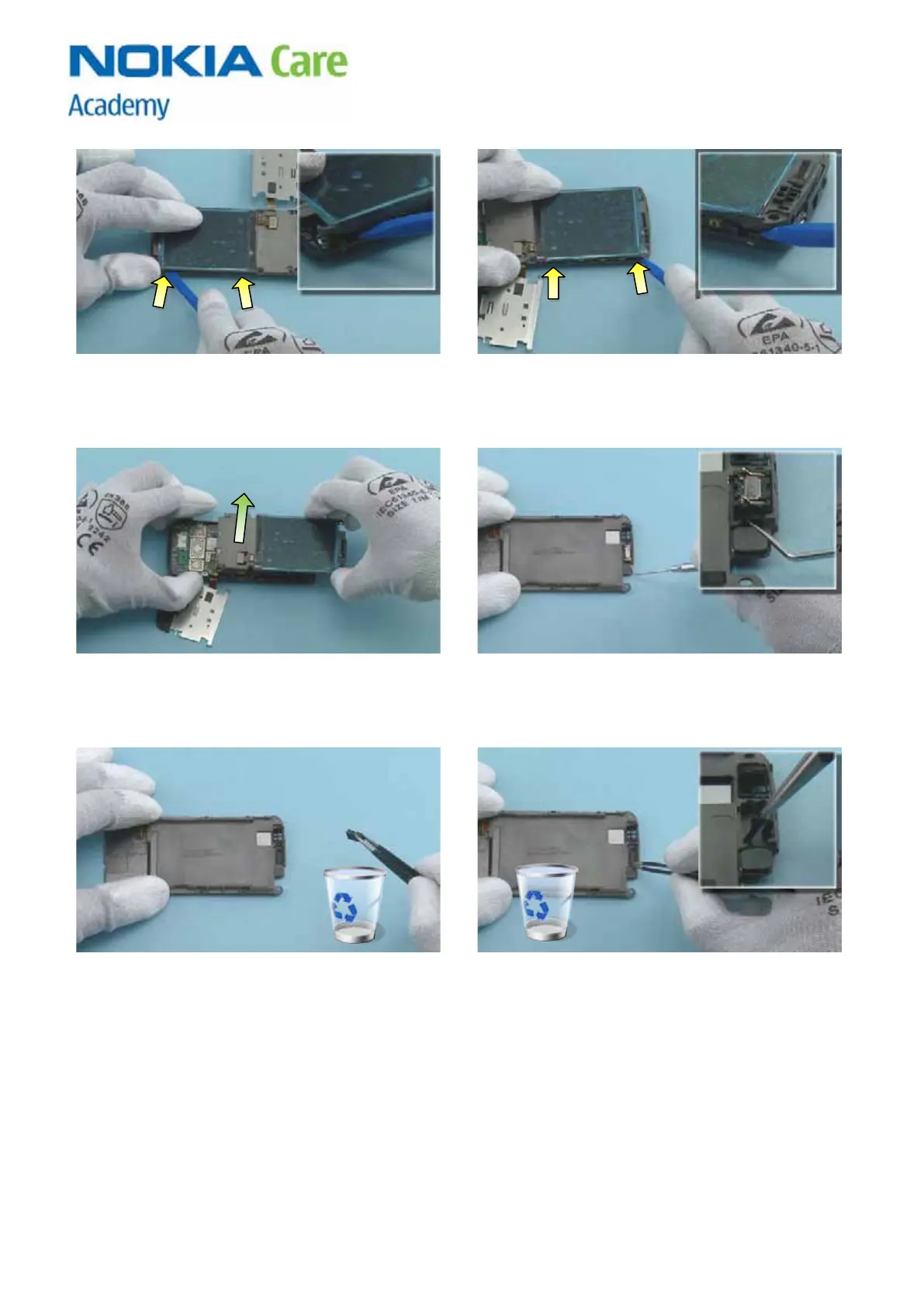

25) Detach the two clips holding the DISPLAY
CARRIER on the B-COVER by using the SS-93.
26) Detach also the two clips on the other side with
the sharp end of the SS-93.
27) Lift up the DISPLAY CARRIER. 28) Use the dental tool to detach the EARPIECE.
29) Remove the EARPIECE with the tweezers. Discard
it.
30) Use the tweezers to peel off the EARPIECE
ADHESIVE. Discard it.
