Nokia C3-01

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
19 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

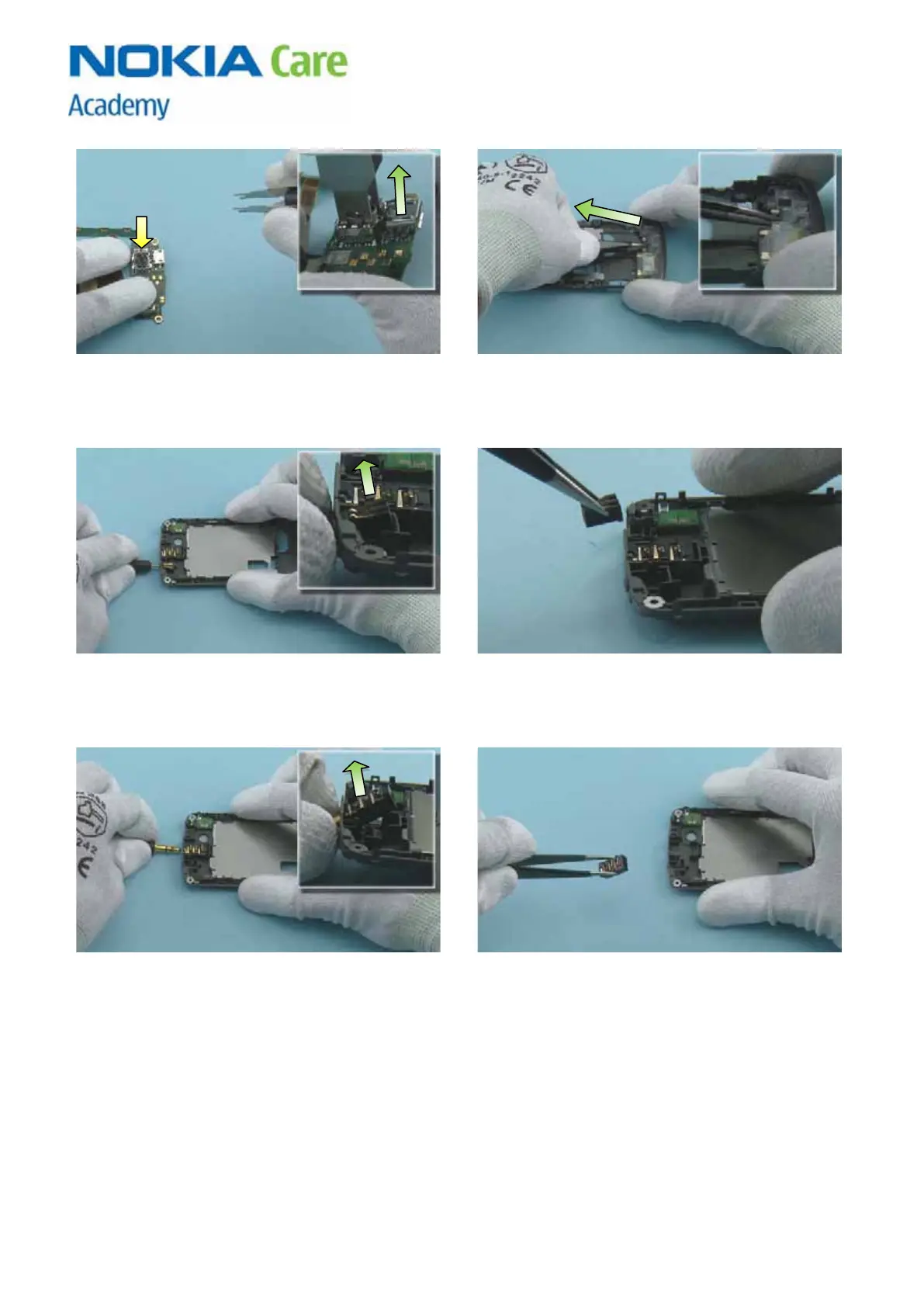

43) Use the SS-88 camera removal tool to remove
the CAMERA from the ENGINE BOARD.
44) Pull out and remove the ANTENNA/SPEAKER BOX
with the tweezers.
45) Use the DC plug to lift the DC JACK from its socket. 46) Remove the DC JACK with the tweezers.
47) Use the AV plug to lift the AV JACK from its
socket.
48) Remove the AV JACK with the tweezers.
