Nokia C3-01

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
20 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

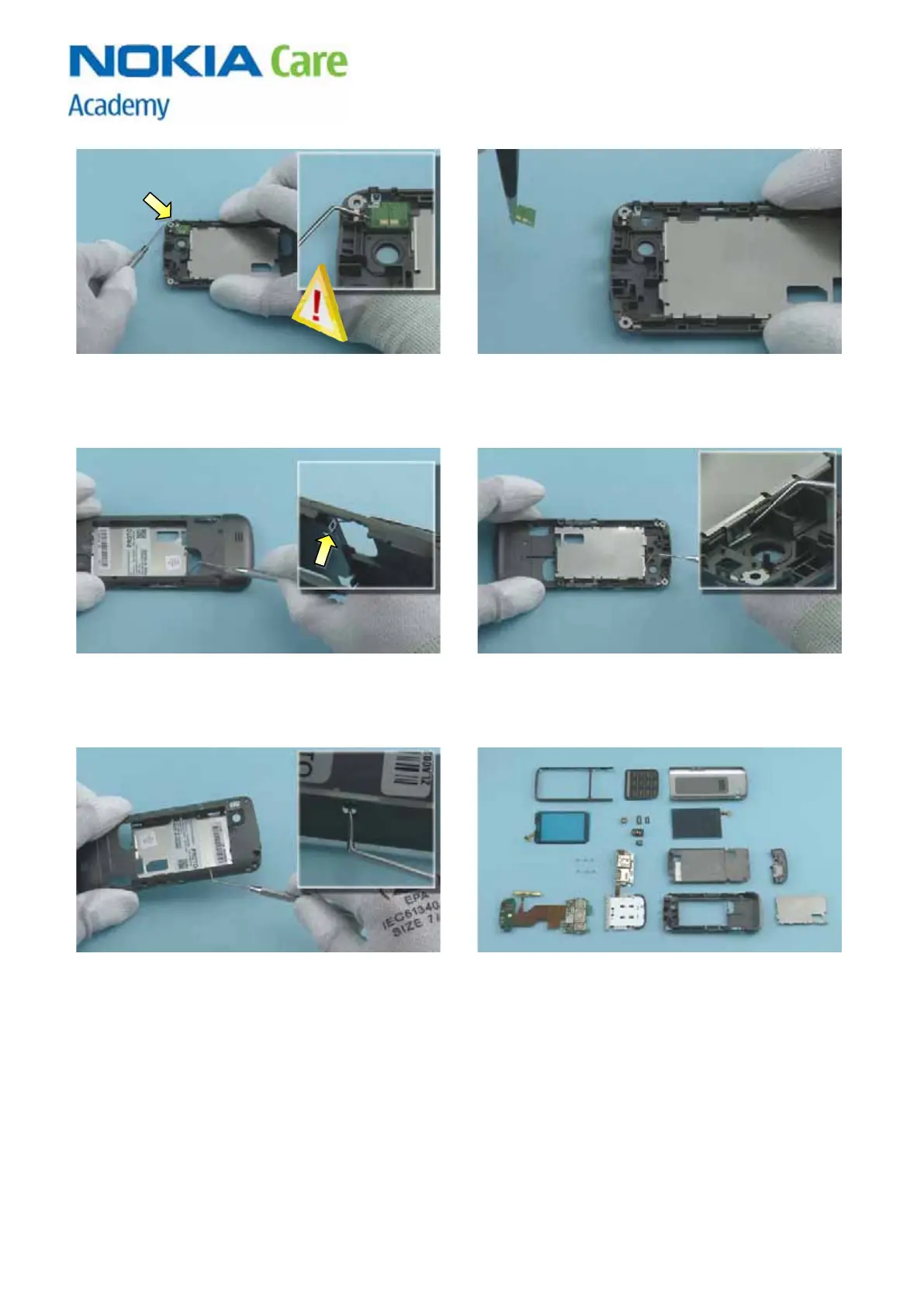

49) Use the dental tool to detach the FLASH PWB
from the B-COVER. Be careful not to damage the
FLASH PWB or any nearby components.
50) Remove the FLASH PWB with the tweezers.
51) Detach the first clip of the METAL INLAY with the
dental tool as shown.
52) Detach the second clip of the METAL INLAY with
the dental tool as shown.
53) Detach the third clip of the METAL INLAY with the
dental tool as shown. The METAL INLAY can now be
removed.
54) Nokia C3-01 disassembly is now complete.
-END OF DISASSEMBLY-
