CCS Technical Documentation Car Kit
NPM-2NX
Issue 1 07/02 ãNokia Corporation Page 5
• Handsfree SpeakerHFS-12
• HandsetHSU-1 (only included in CARK-91H)

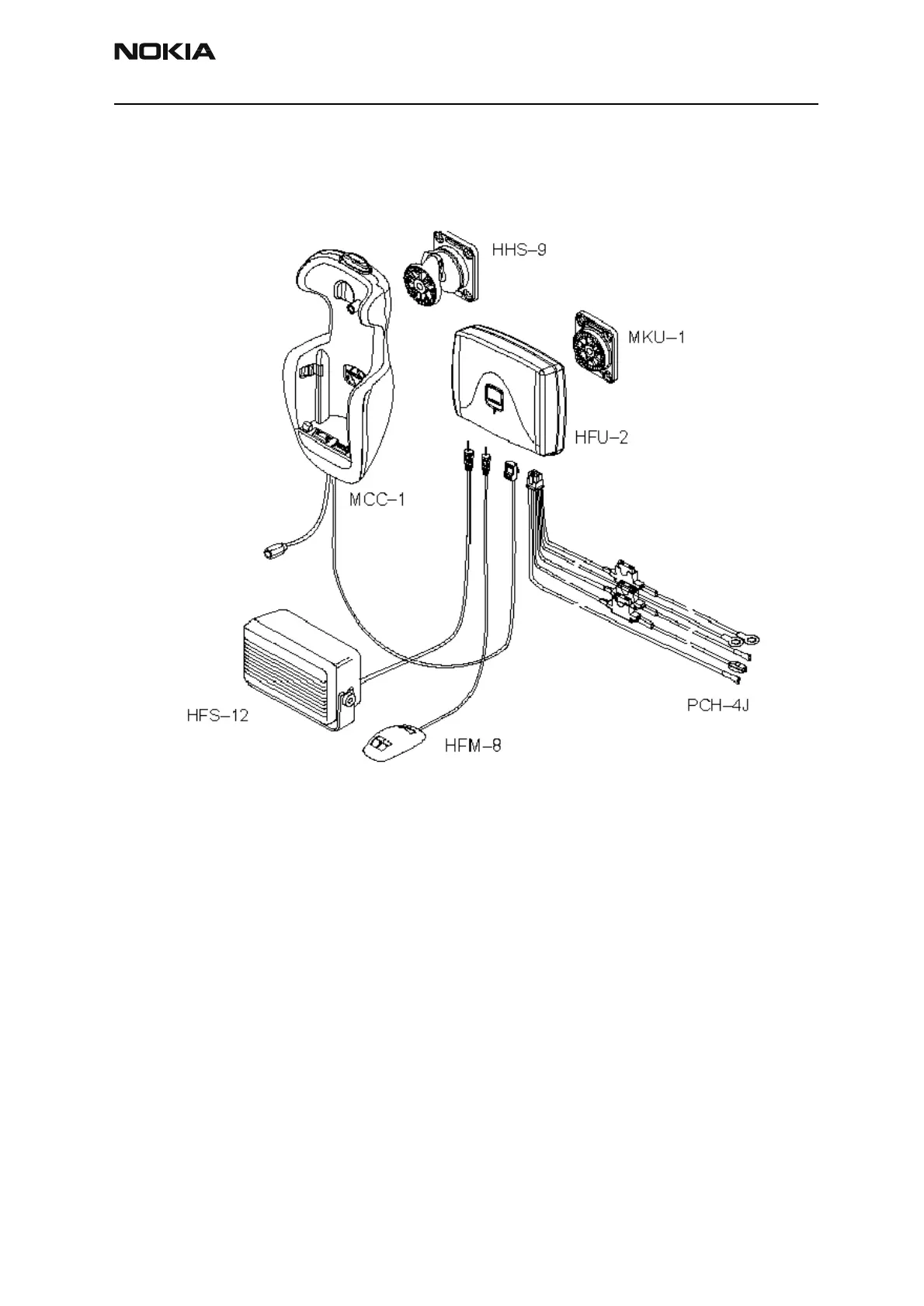

Figure 3: Equipment
Component Parts
Advanced Active Holder MCC–1
The holder allows the phone to be firmly located in a convenient position. The holder is
attached to the vehicle’s interior using the swivel mount HHS–9. The mounting must be
secured with a screw (included with HHS–9). The screw recess can then be covered with
the Nokia logo plate.
Product Code
Mobile Holder MCC-10620043
Advanced Handsfree Unit HFU–2
The handsfree unit enables the phone to operate in handsfree mode. The unit is attached
to the vehicle interior using the mounting plate MKU–1. The mounting must be secured
with a screw (included with MKU–1). A temporary installation can be achieved using
installation belts (not supplied).
