WW Competence Transfer
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
29.03.2006
14
Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (25)

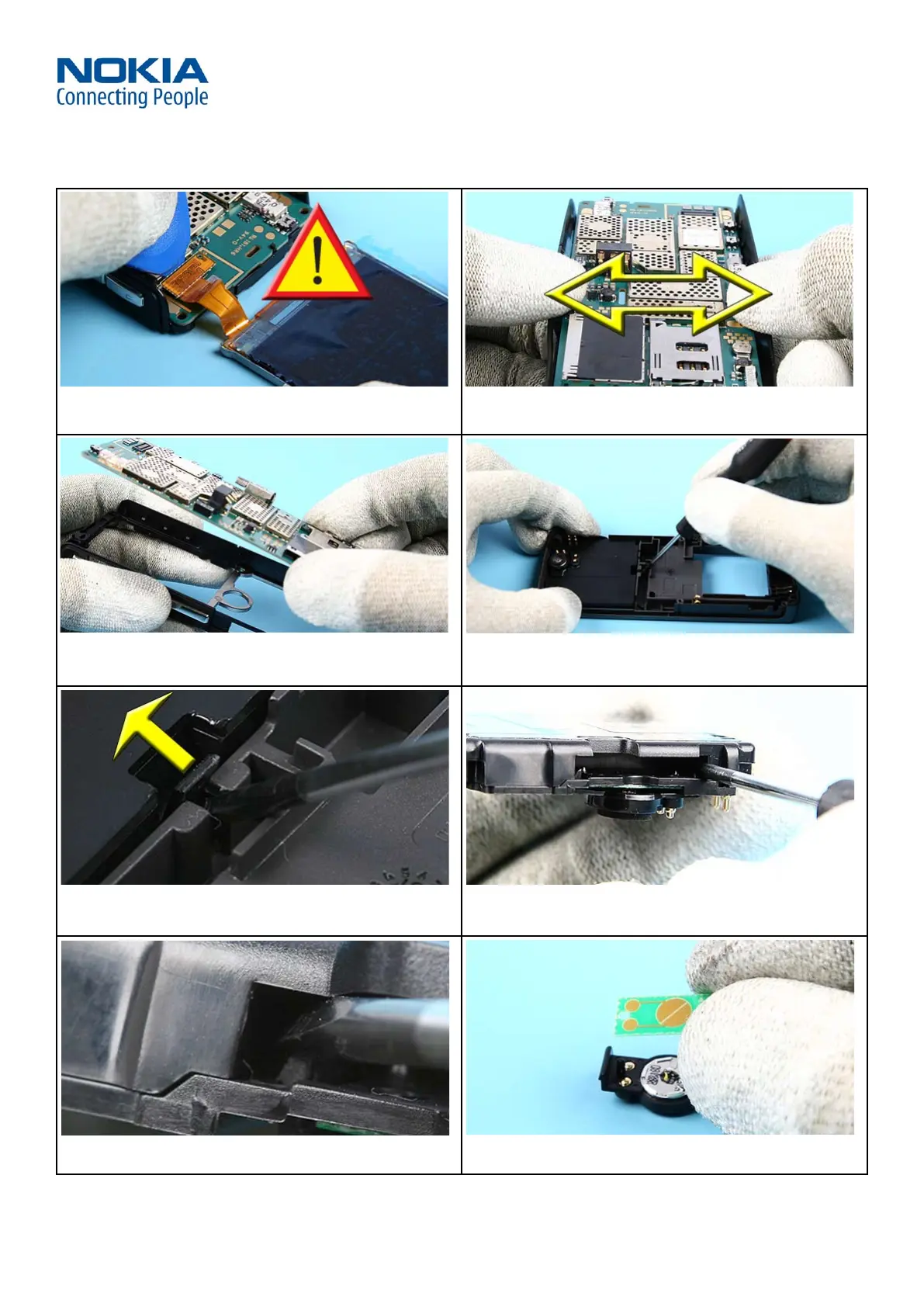

17.) Open the flex connector.
18.) First, pull the edges of the cover. Then carefully lift out
the Engine Module as shown.
19.) Lift out the Engine Module.
20.) Use a slotted screwdriver to release the
Antenna Module Assy.
21.) Unlock the clip of the Antenna Module Assy in shown
direction.
22.) Use a screwdriver to unlock the Earpiece Cover.
23.) Unlock both clips as shown to release the
Earpiece Cover.
24.) Remove the Earpiece Contact PWB.
