Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (25)

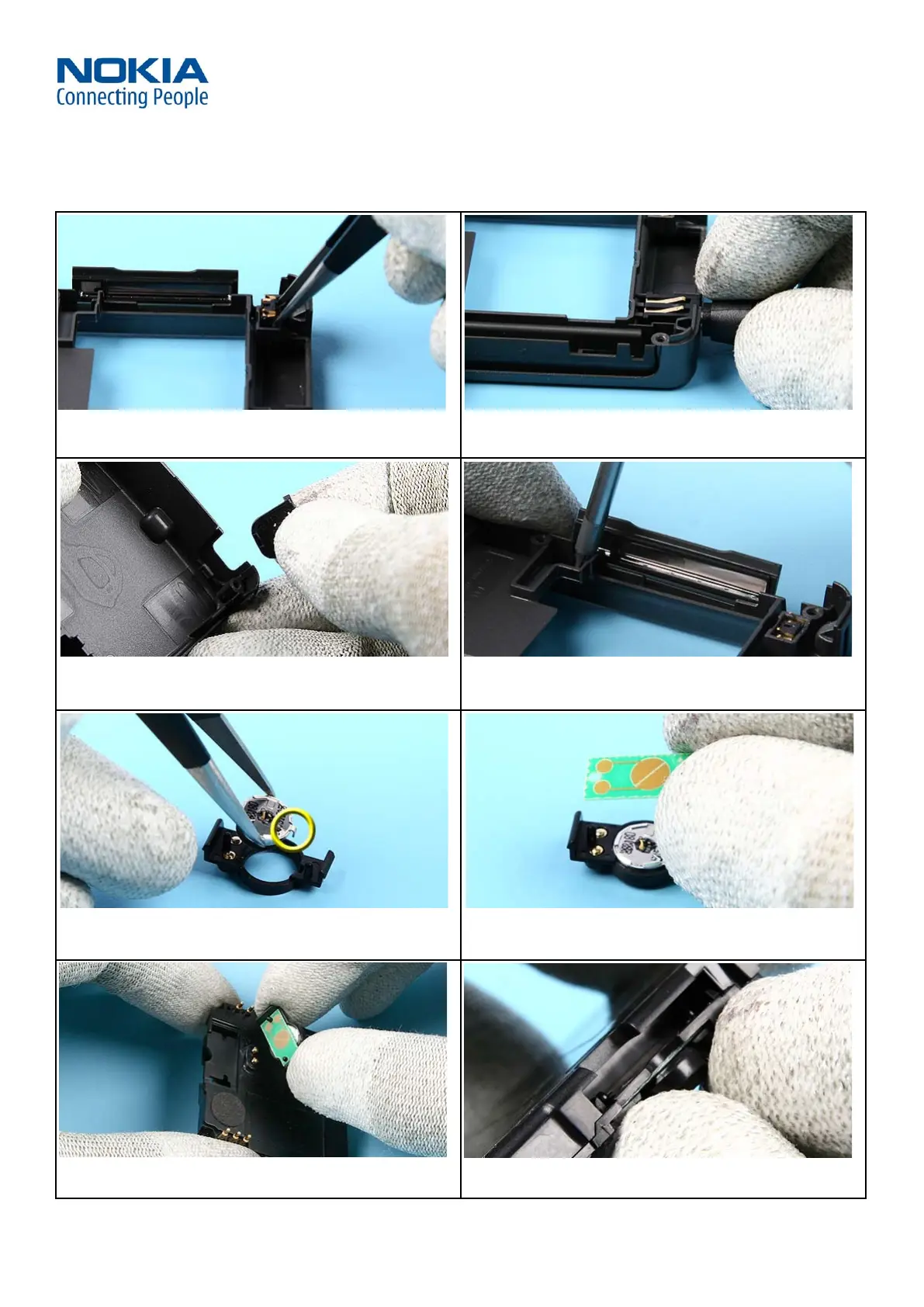

ASSEMBLY INSTRUCTION10.
1.) Insert the Microphone into its compartment.
2.) Insert the DC Jack.
4.) Inset the MMC Door and fix it into its compartment.
3.) Place the Power Key.
6.) Place the Earpiece Contact PWB.
5.) Place the Earpiece, mind the guiding. Always fit a new
Earpiece Adhesive when replacing the Earpiece.
7.) Mind the correct position before placing the
Earpiece Cover.
8.) Fix the Earpiece guide at the Antenna Module Assy.
