Nokia E61 Service Manual

Training and Vendor Development
CMO Service Operations
Multimedia Creation & Support CONFIDENTIAL
27.Apr.2006
12
Service Manual E61 RM-89
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
DJk
Page (19)

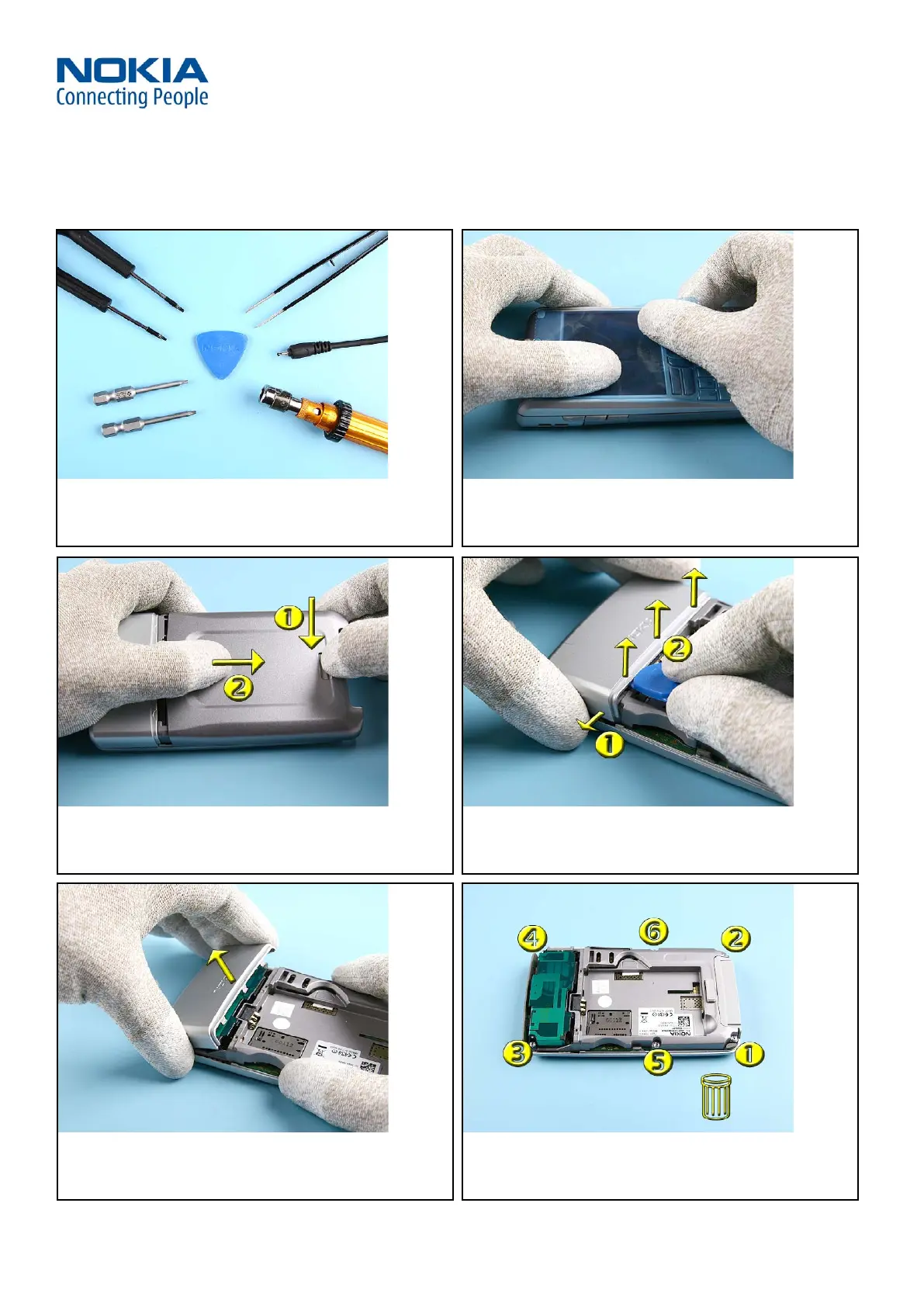

DISASSEMBLY INSTRUCTION9.
1. Needed tools.
2. Cover the window with a protective lm.
3. Push the BATTERY RELEASE BUTTON and remove the
BATTERY COVER.
4. Unlock the snaps of the ANTENNA LID with
the SRT-6.
5. Carefully, lift up the ANTENNA LID.
6. Unscrew the six Torx Plus
®
size 6 screws in the order
shown. Do not reuse the screws.
SRT-6
TORX PLUS
®
SIZE 6
SCREWDRIVER
METAL TWEEZERS
DC-PLUG
TORQUE DRIVER
TORX PLUS
®
TORX PLUS
®
SIZE 6
SCREWDRIVER
SIZE 4 BIT
SIZE 6 BIT
