Nokia E70 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
28.Apr.2006
10
Service Manual E70 RM-10 / RM-24
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(20)

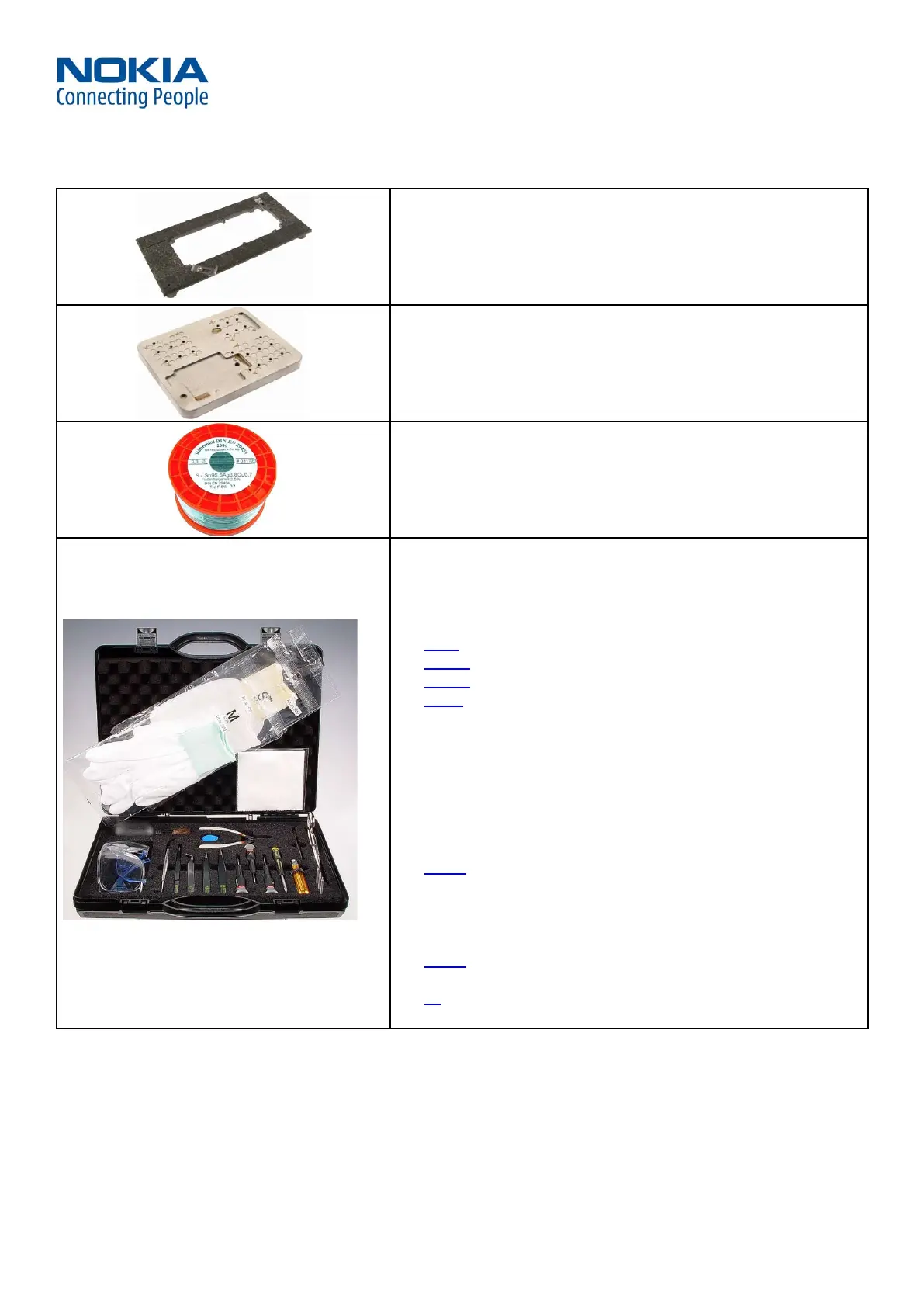

RJ-82
Soldering Jig
SS-70
Domesheet Jig
Lead-free Solder Wire
Mandatory for lead-free products (Level 2 only).
0772040 NMP Standard Toolkit
NOKIA opening tool SRT-6 NOKIA No. 0770431
Tonichi torque driver NOKIA No. 6901525
Hoya micro Fibre cloth MX304
Dastex gloves S, M, XL
Artilux goggles AH166
Wera bit T5 867/4TX 5x50
Wera 867/4 6IP; 50mm (Torx 6 PLUS®)
Wera bit T6 867/4TX 6x50
Wera 867/1 5IP; 25mm (Torx 5 PLUS®)
Wera bit T6 PLUS® 867/4TX 6IP
Facom side cutter 416E
Facom T5 driver SP.14032
Facom T6 driver SP.14033
Facom slot screwdriver AEF. 2x35.E
Wetec tweezers 7abb SA-ESD
Wetec tweezers 22 SA-ESD
Wetec tweezers 13 SA-SMD ESD
Wetec tweezers PSF SA-ESD
Wetec ESD brush E1211
Kaiser Fototechnik airbrush 6315
Wetec dental tool DEM83266/0
RS Components Scissors 323-5732
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Nokia E70 Specifications

General

Zoom capability	2x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 288 pixels
2G standards	GPRS
Ringer type	Polyphonic
FM radio	No
Panel type	TFT
Display resolution	352 x 416 pixels
Internal memory	75 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	PC Suite
Product color	Silver
Talk time (2G)	7.3 h
Battery capacity	1150 mAh
Standby time (2G)	216 h
Keyboard layout	QWERTY

Weight and Dimensions

Depth	53 mm
Width	117 mm
Height	22 mm
Weight	127 g
