Nokia E70 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
28.Apr.2006
18
Service Manual E70 RM-10 / RM-24
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(20)

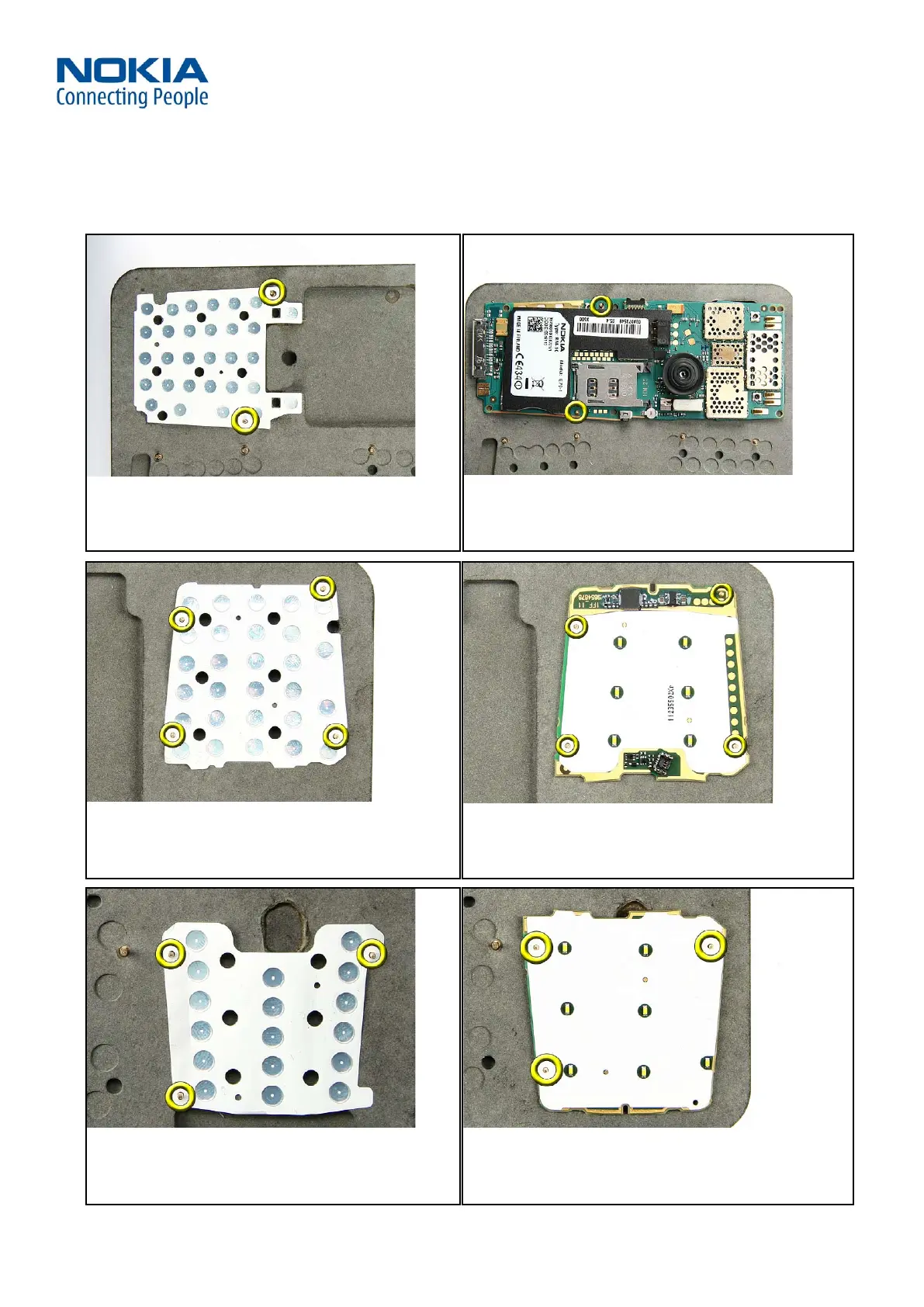

DOMESHEET EXCHANGE INSTRUCTION10.
1. Place the new ENGINE QWERTY DOMESHEET on the SS-70.
Align it with the two guide pins and remove the protection
foil.
2. Place the 1EM ENGINE MODULE over the SS-70 and align it with
the two guide pins. Now press the module on the domesheet
and remove the assembly.
3. Place the new FLIP QWERTY DOMESHEET on the SS-70. Align
it with the four guide pins and remove the protection foil.
4. Place the FLIP PWB over the SS-70 and align it with the four
guide pins. Now press the FLIP PWB on the domesheet and
remove the assembly.
5. Place the new T9 DOMESHEET on the SS-70. Align it with the
three guide pins and remove the protection foil.
6. Place the FLIP PWB over the SS-70 and align it with the three
guide pins. Now press the FLIP PWB on the domesheet and
remove the assembly.

Nokia E70 Specifications

General

Zoom capability	2x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 288 pixels
2G standards	GPRS
Ringer type	Polyphonic
FM radio	No
Panel type	TFT
Display resolution	352 x 416 pixels
Internal memory	75 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	PC Suite
Product color	Silver
Talk time (2G)	7.3 h
Battery capacity	1150 mAh
Standby time (2G)	216 h
Keyboard layout	QWERTY

Weight and Dimensions

Depth	53 mm
Width	117 mm
Height	22 mm
Weight	127 g
