Nokia E70 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
28.Apr.2006
17
Service Manual E70 RM-10 / RM-24
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(20)

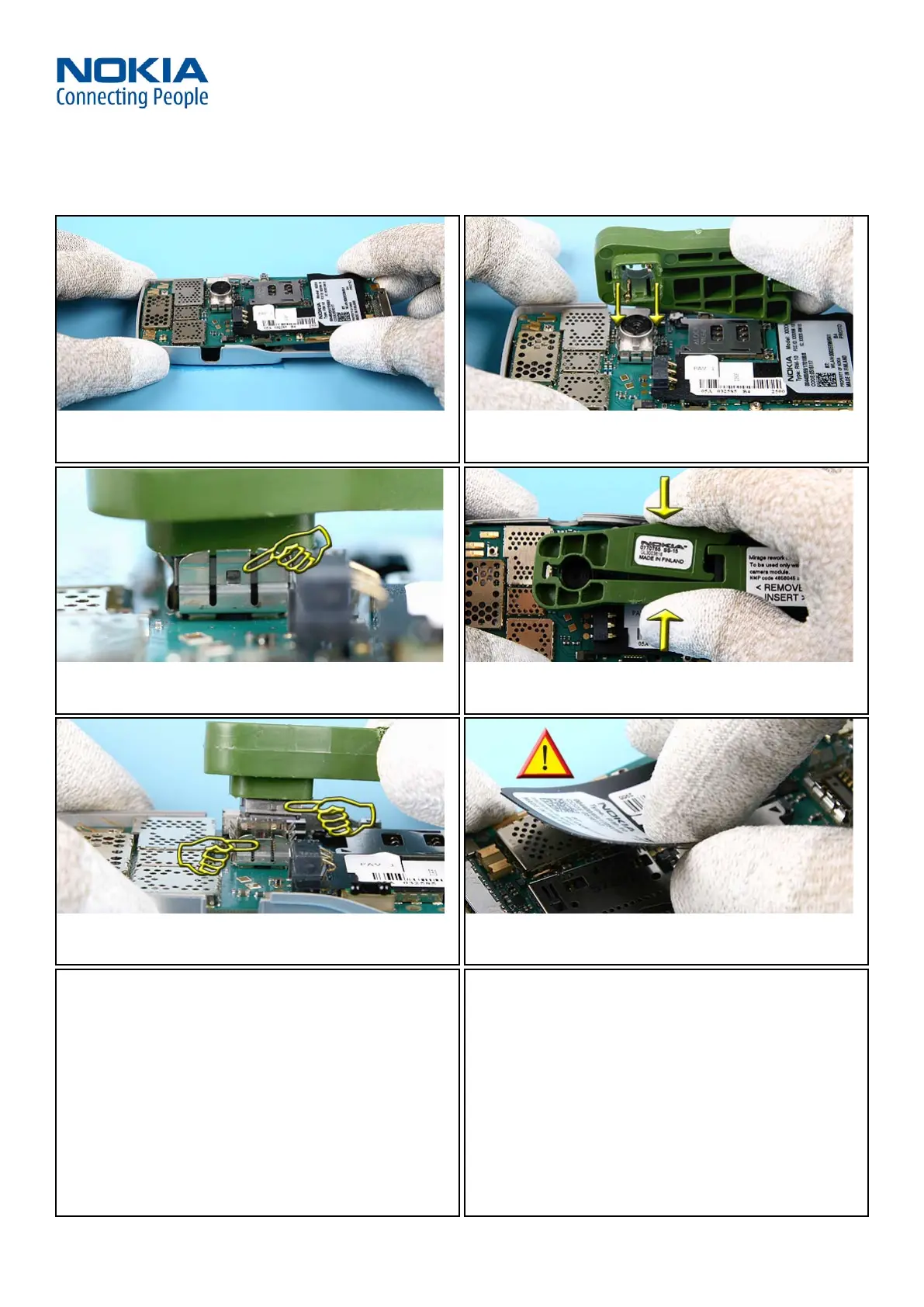

41. Use the A-COVER as a support when removing the CAMERA
MODULE.
42. Note the correct position of the SS-15 before placing it over the
CAMERA MODULE.
43. Press the SS-15 lightly in shown direction until the CAMERA
MODULE have been unlocked.
44. Press the Camera removal tool together.
45. Gently, remove the CAMERA MODULE. Note the correct position
of the Camera when reassembling the unit.
46. Remove the BATTERY DECK. Do not use to much force.

Nokia E70 Specifications

General

Zoom capability	2x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 288 pixels
2G standards	GPRS
Ringer type	Polyphonic
FM radio	No
Panel type	TFT
Display resolution	352 x 416 pixels
Internal memory	75 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	PC Suite
Product color	Silver
Talk time (2G)	7.3 h
Battery capacity	1150 mAh
Standby time (2G)	216 h
Keyboard layout	QWERTY

Weight and Dimensions

Depth	53 mm
Width	117 mm
Height	22 mm
Weight	127 g
