Nokia E70 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
28.Apr.2006
12
Service Manual E70 RM-10 / RM-24
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(20)

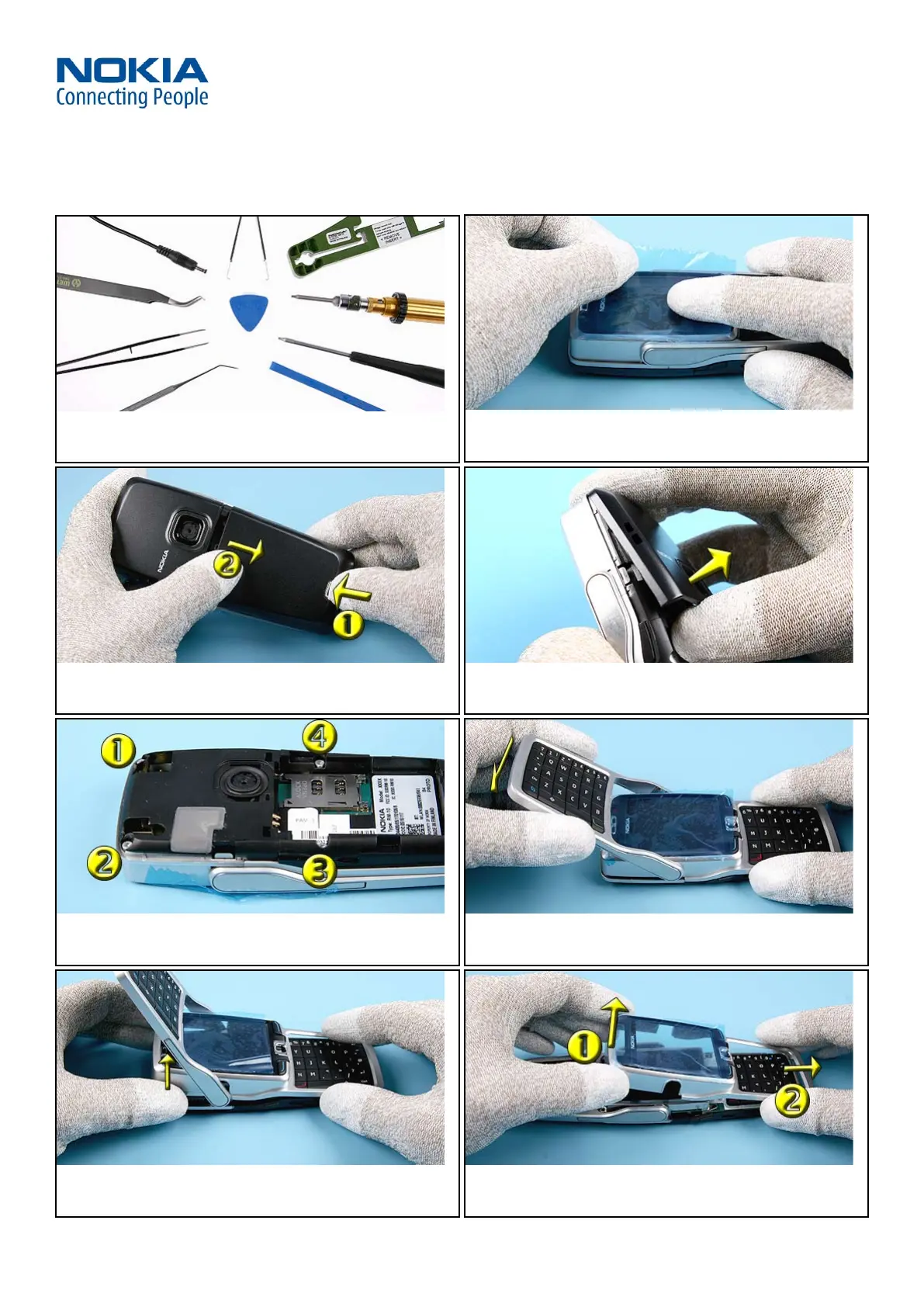

DISASSEMBLY INSTRUCTION9.
1. Needed tools.
2. Protect the window with a lm.
3. Unlock and remove the BATTERY COVER. 4. Remove the ANTENNA MODULE, beginning from the battery
compartment.
5.
Unscrew the four Torx Plus
®
size 6 SCREWS in the order shown.
For assembly use a reverse order and Torque driver with a torque
setting of 20Ncm.
6. Open the FLIP MODULE.
7. Lift a bit the A-COVER.
8. Remove the A-COVER ASSY in the shown order.
SS-34
SS-15
DC Plug
Angled tweezers
Metal tweezers
Dental tool
SS-93
Torx plus® size 6 driver
Torque driver
SRT-6
Torx Plus
®
size 6 bit

Nokia E70 Specifications

General

Zoom capability	2x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 288 pixels
2G standards	GPRS
Ringer type	Polyphonic
FM radio	No
Panel type	TFT
Display resolution	352 x 416 pixels
Internal memory	75 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	PC Suite
Product color	Silver
Talk time (2G)	7.3 h
Battery capacity	1150 mAh
Standby time (2G)	216 h
Keyboard layout	QWERTY

Weight and Dimensions

Depth	53 mm
Width	117 mm
Height	22 mm
Weight	127 g
