Nokia E70 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
28.Apr.2006
16
Service Manual E70 RM-10 / RM-24
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (20)

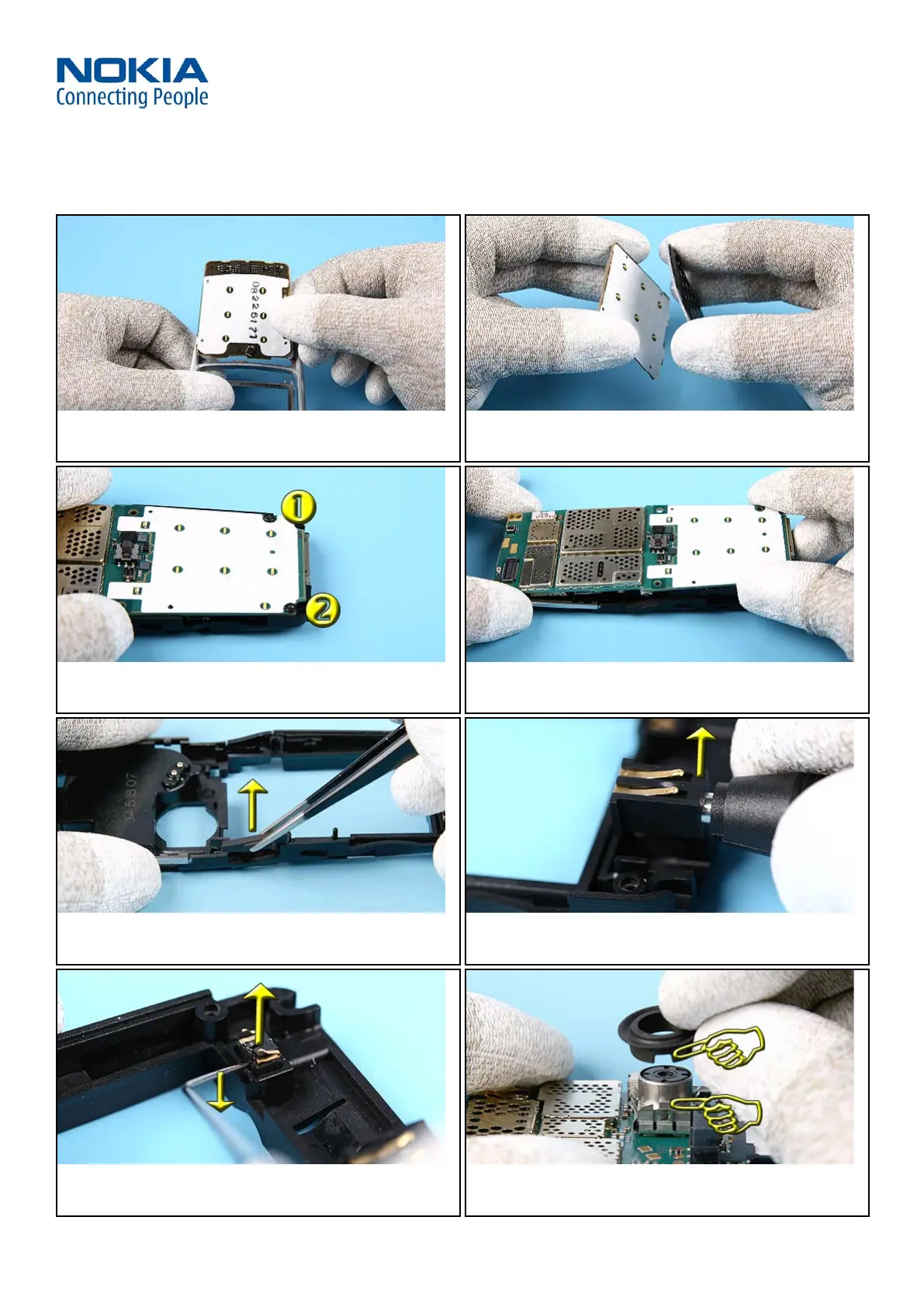

33. Remove the modules from the FLIP FRAME. 34. Separate the FLIP QWERTY KEYMAT from the FLIP PWB ASSEMBLY
35. Unscrew the two Torx Plus size 6 SCREWS in the order shown.
For assembly use a reverse order and Torque driver with a torque
setting of 21Ncm.
36. Remove the ENGINE MODULE from the B-COVER.
37. Remove the VOICE KEY. 38. Remove the DC- JACK with the DC-Plug.
39. Use the dental tool as a lever to remove the MICROPHONE.
Do not reuse the MICROPHONE.
40. Remove the CAMERA GASKET.

Nokia E70 Specifications

General

Zoom capability	2x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 288 pixels
2G standards	GPRS
Ringer type	Polyphonic
FM radio	No
Panel type	TFT
Display resolution	352 x 416 pixels
Internal memory	75 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	PC Suite
Product color	Silver
Talk time (2G)	7.3 h
Battery capacity	1150 mAh
Standby time (2G)	216 h
Keyboard layout	QWERTY

Weight and Dimensions

Depth	53 mm
Width	117 mm
Height	22 mm
Weight	127 g
