Nokia E90 Service Manual

26
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
E90 RA-6
Page (51) ISSUE 1
Service Manual Level 1&2

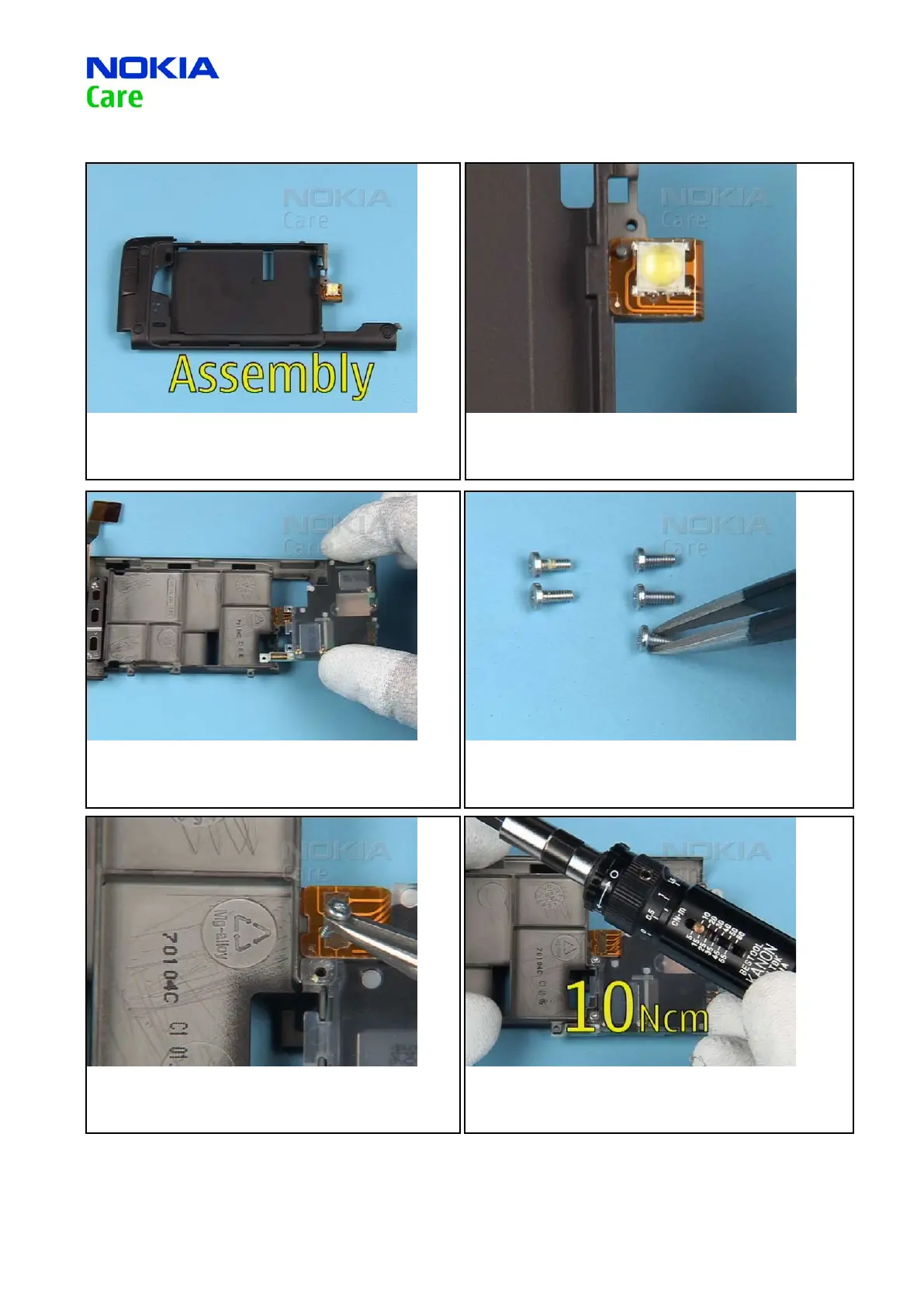

1. Assembly.
2. Note that the FLASH MODULE is very delicate and becomes
useless in consequence of mechanical stress.
3. Replace the ANTENNA/IHF MODULE.
4. First take the 3 new screws 1.4M x 3.4 ...
5. …and place them.
6. Set the correct torque.
LOWER BLOCK ASSEMBLY16.
3 screws for IHF
Antenna M1.4 x 3.4
2 screws for DUAL
AXIS HINGE MODULE
M1.4 x 4.5
