Nokia E90 Service Manual

12
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
E90 RA-6
Page (51) ISSUE 1
Service Manual Level 1&2

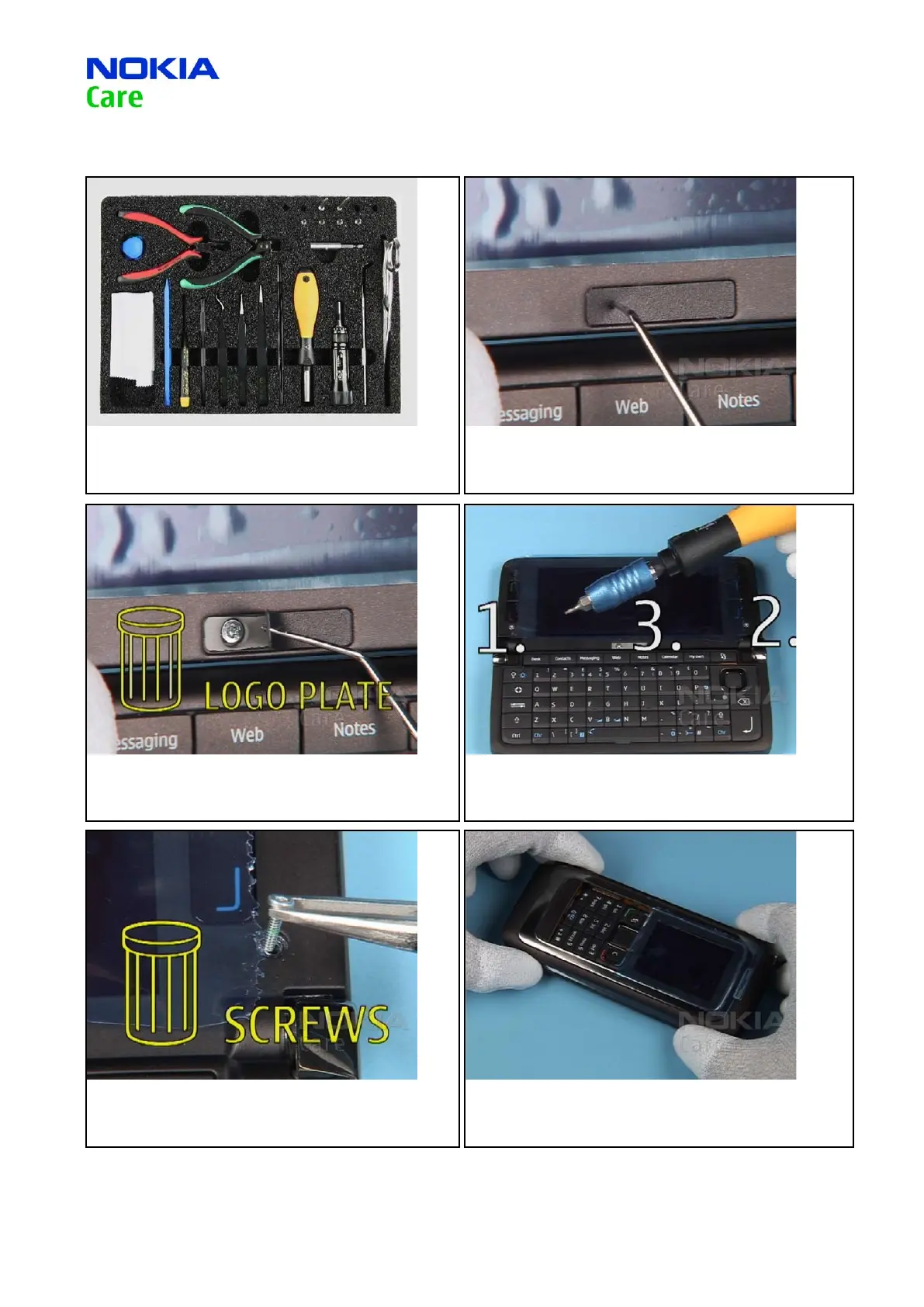

UPPER BLOCK DISASSEMBLY13.
1. You will need the Nokia Standard Toolkit version 2. Also
refer the General Mechanical Guideline video for additional
hints about the tools and component handling.
2. Open the assembly. Peel up the LOGO PLATE with the dental
pick.
3. Discard the LOGO PLATE. Do not use it again when
reassembling.
4. Unscrew the 3 Torx Plus size 4 screws in the order shown.
5. Discard these screws. Do not use them again when
reassemble.
6. Close the assembly again. Lift up the A-COVER at the hinge
side. Move it away from the hinge side. Now it can be removed
easily.
