UPPER BLOCK ASSEMBLY 14.

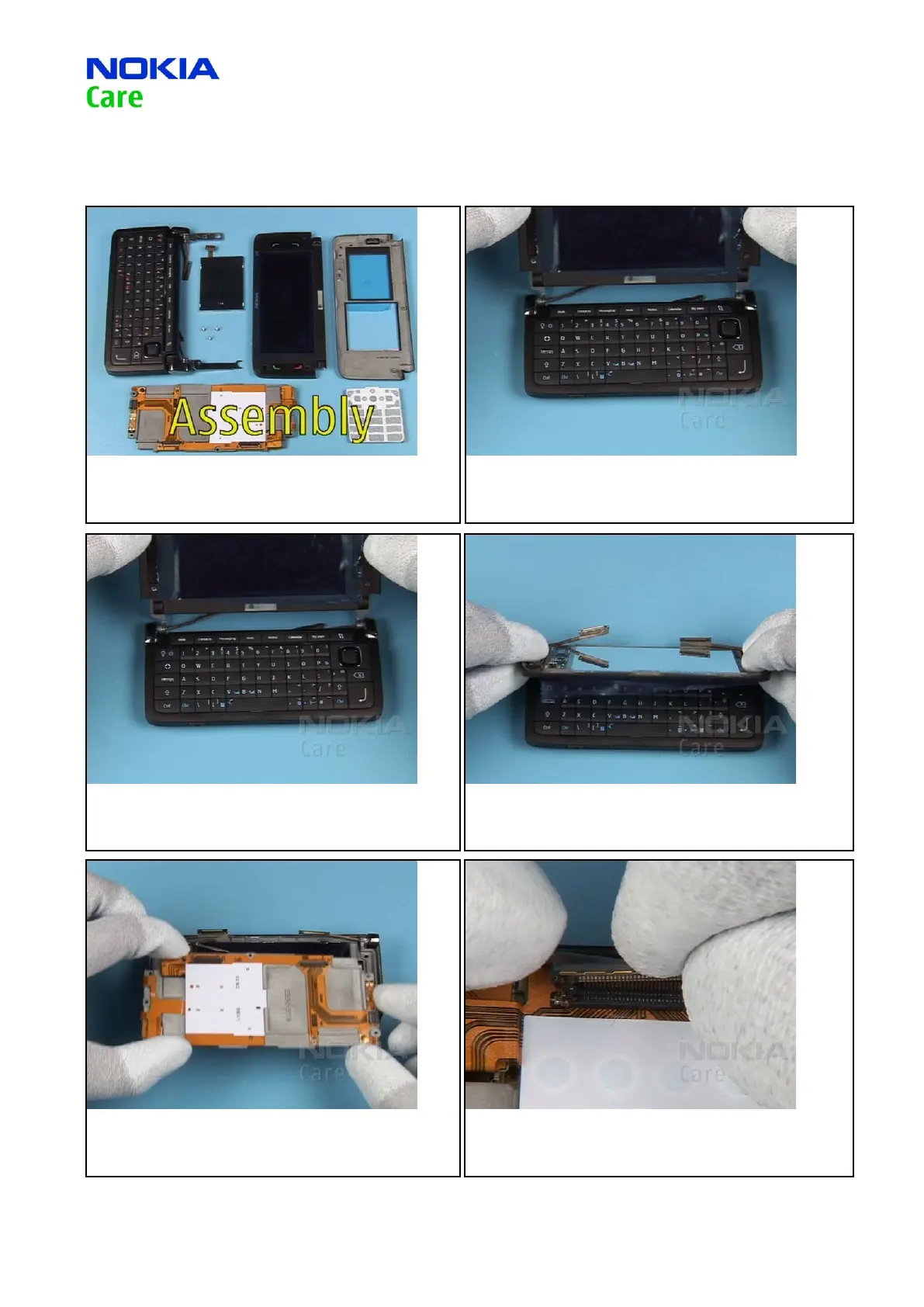

1. Assembly.
2. Bring the hinge parts in the position shown.
3. Fit the C-COVER. Note the correct alignment to the mounting
parts of the hinge.
4. Flip over the C-COVER ASSEMBLY together with the mounting
parts of the hinge.
5. Now place the CHASSIS ASSEMBLY.
6. Close both MICROCOAX HARNESS connector. Check for correct
tting of the connectors before going on.
