Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0
Assembly hints

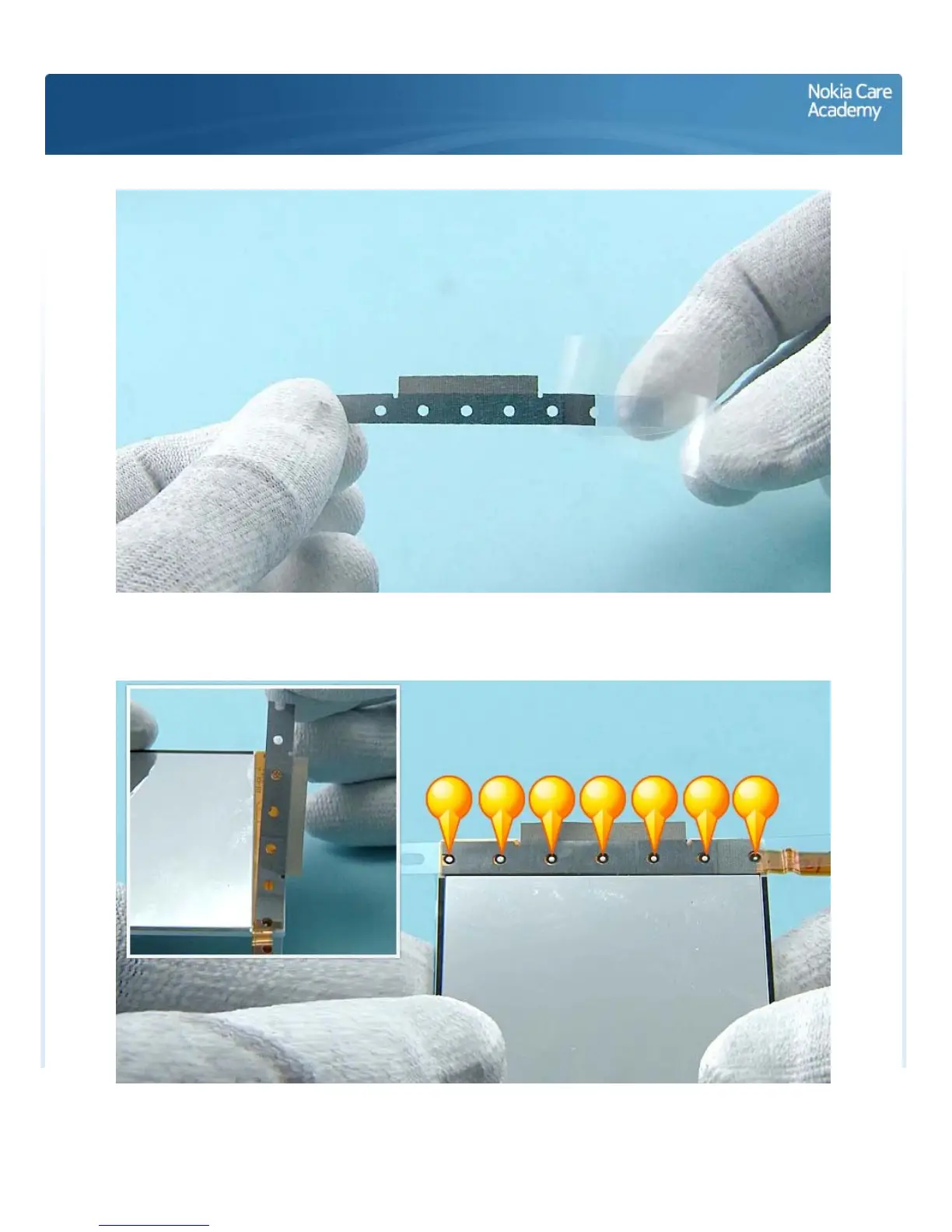

1) Before assembling the DISPLAY attach the DISPLAY CONDUCTIVE TAPE to the bottom back side of the
DISPLAY. Start by removing the shown protective film from the DISPLAY CONDUCTIVE FILM.
2) Attach the DISPLAY CONDUCTIVE TAPE to the DISPLAY FPC as shown. Make sure that the shown holes
of the DISPLAY CONDUCTIVE TAPE are aligned correctly with the DISPLAY FPC.
