Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

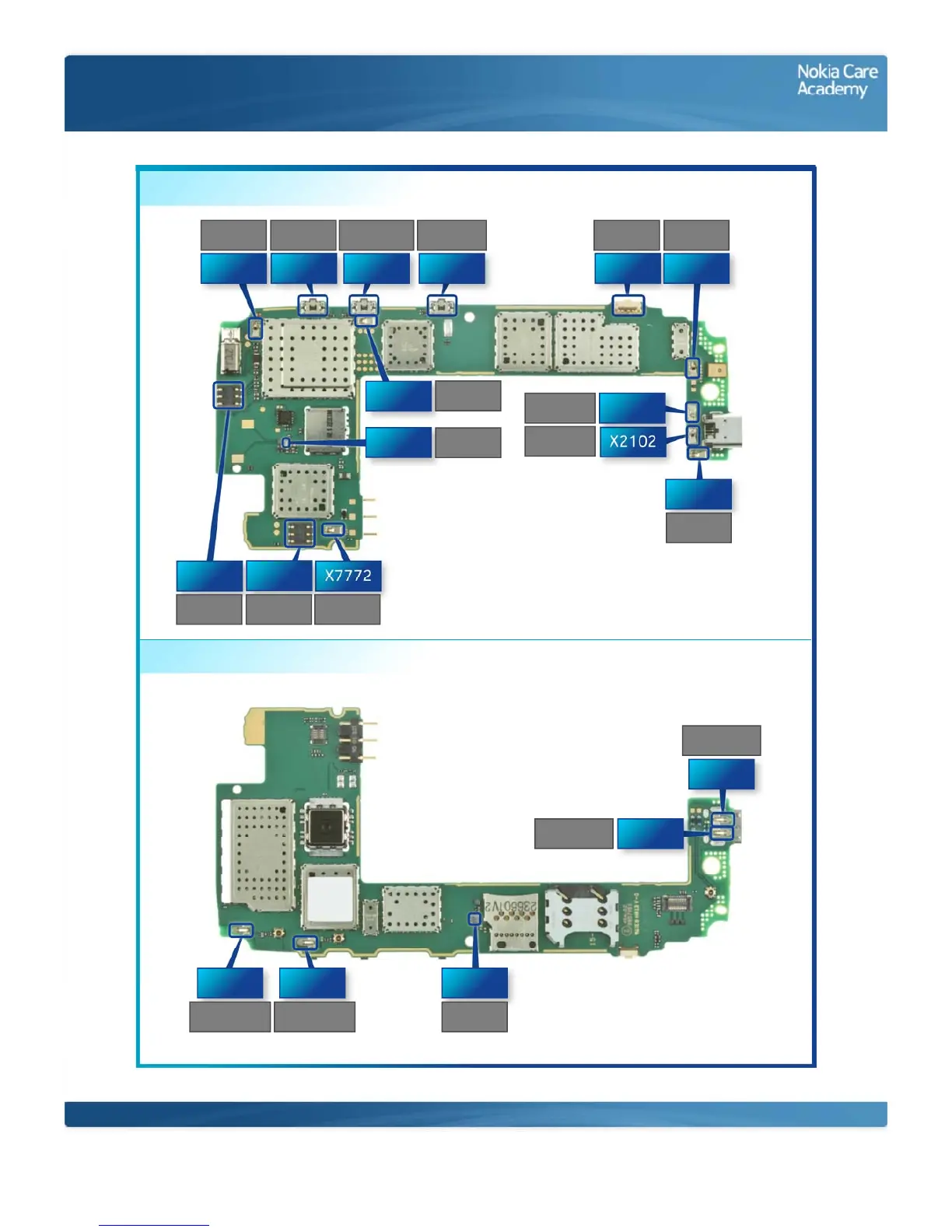

Solder components
S4402X7771 S4403 S4401 S4400 X7770
X7761
X7760
F1400
X1353 X2105
X7773
X7774
X2101
X7767 Z5200X7720
Volume up
switch
Antenna
GND spring
Antenna
GND spring
Antenna
GND spring
WLAN Antenna
spring
GNSS Antenna
spring
Main antenna
GND spring
Main antenna
spring
Micro SD
ASIP filter
Camera
fuse
ALS/Proxy
connector
AV Jack
connector
Volume down
switch
Power/Lock
switch
Camera
switch
Antenna
GND spring
Antenna
GND spring
IHF Speaker
spring +
IHF Speaker
spring -
BOTTOM
TOP
©2013 Nokia | Confidential | All Rights Reserved.
