Nokia Lumia 525 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

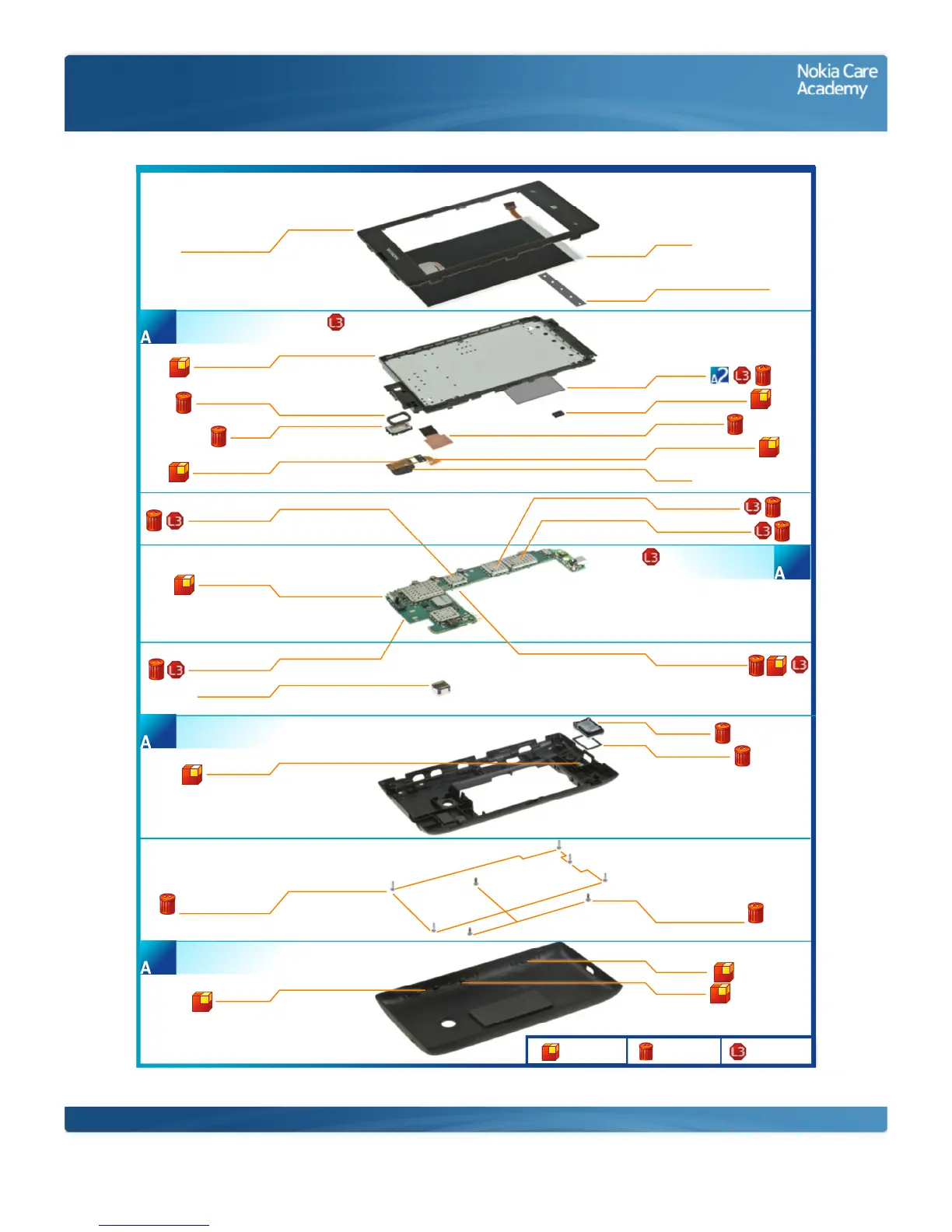

Exploded view
EARPIECE GASKET
I0005
TOUCH WINDOW &
A-COVER ASSEMBLY
I0001
DISPLAY SUPPORT
I0003
EARPIECE
I0004
AV JACK ADHESIVE
I0007
LIGHT SWAP PWB
I0011
CAMERA MODULE
I0015
MAIN ANTENNA
I0024
WCN SHIELDING LID
I0019
VOLUME KEY
I0026
PMU SHIELDING LID
I0016
DISPLAY
I0002
DISPLAY CONDUCTIVE TAPE
I0029
AV JACK FLEX ADHESIVE
I0008
CAMERA KEY
I0027
HEAT SPREADER
I0009
TYPE LABEL
I0012
AV JACK
I0006
SPEAKER GASKET
I0022
IHF SPEAKER
I0023
POWER KEY
I0028
CELL PA SHIELDING LID
I0021
RF IC SHIELDING LID
I0018
MICROPHONE GASKET
I0010
SCREW TORX+
SIZE 4 M1.4 X 3.4
I0013
EMMC SHIELDING LID
I0017
SCREW TORX+
SIZE 4 M1.4 x 4.5
I0025
DISPLAY SUPPORT ASSEMBLY
(I0003 - I0010)
1
B-COVER ASSEMBLY
(I0026 - I0028)
4
D-COVER ASSEMBLY
(I0022 - I0024)
3
LIGHT SWAP PACKAGE
(I0011 - I0012)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
