Service Manual Level 1 and 2
Nokia Lumia 610
RM-835 RM-836
Version 1.0

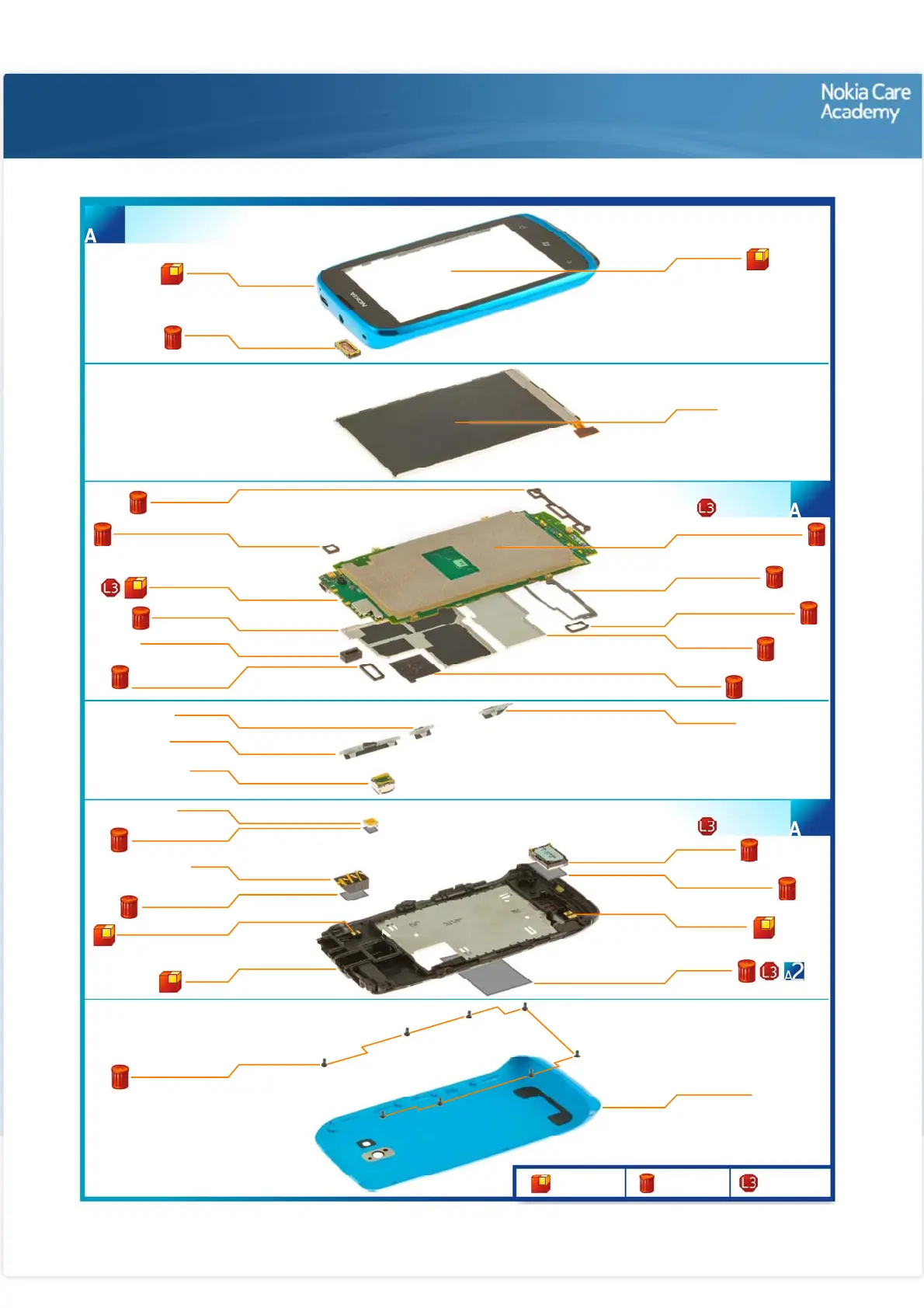

Exploded view
A-COVER
I0002
EARPIECE
I0003
SECONDARY MIC RUBBER
I0008
LIGHT SWAP PWB
I0018
SHIELDING LID 2
I0016
TOUCH PANEL
CONNECTOR RUBBER
I0012
LED FLASH RUBBER
I0017
POWER KEY
I0006
VOLUME KEY
I0004
CAMERA
I0020
LED FLASH
I0025
LED FLASH ADHESIVE
I0026
AV JACK
I0023
AV JACK ADHESIVE
I0024
D-COVER
I0029
BT/GPS/WLAN ANTENNA
I0028
KEY LED RUBBER
I0009
TOUCH PANEL
I0001
DISPLAY
I0007
DISPLAY CONDUCTIVE TAPE
I0010
ANTENNA RUBBER
I0014
LCD CONNECTOR RUBBER
I0011
BATTERY COVER
I0031
SHIELDING LID 1
I0015
SIM TAPE
I0013
CAMERA KEY
I0005
IHF SPEAKER GASKET
I0022
IHF SPEAKER
I0021
TYPE LABEL
I0019
MAIN ANTENNA
I0027
SCREW TORX+ SIZE 4
I0030
A-COVER ASSEMBLY
(I0001 - I0003)
1
LIGHT SWAP PACKAGE
(I0008 - I0019)
2
D-COVER ASSEMBLY
(I0021 - I0029)
3
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
