Nokia Lumia 610

Service Manual Level 1 and 2
Nokia Lumia 610
RM-835 RM-836
Version 1.0

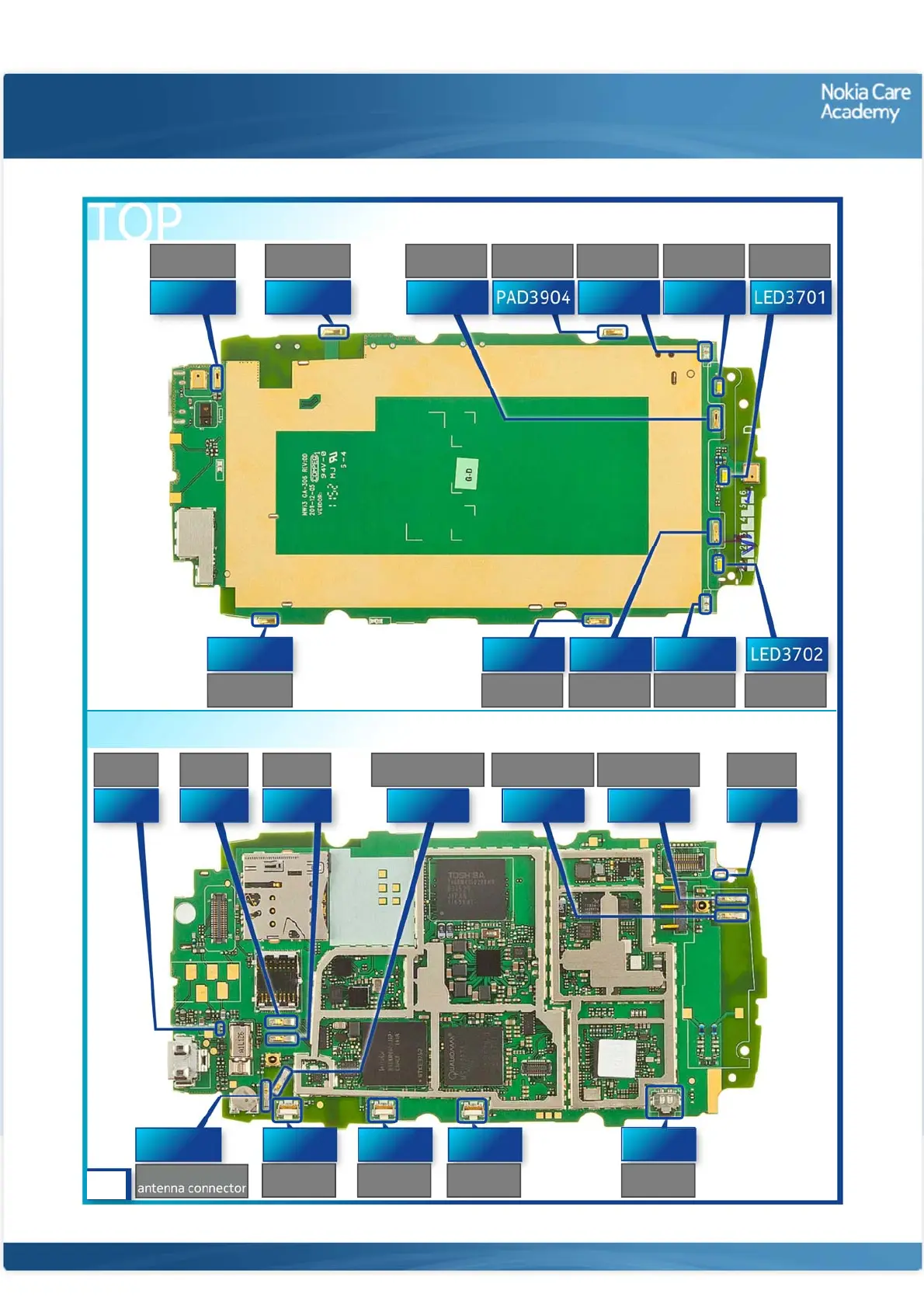

Solder components
F1601
PAD3902
PD2302 PD2301
PAD3903 PAD3905
PAD3907
PAD3906 PAD3910
PAD3911PAD3901 LED3705
PAD3502
PAD3501
SK3702SK3701SK3704SK3703
PAD3202 PAD3201 SH11
Back key
LED
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Grounding
spring
Search key
LED
Start key
LED
USB
Fuse
LED flash
connector
LED flash
connector
BT/WLAN/GPS
antenna connector
RF antenna
spring connector
Grounding
spring
RF antenna
spring connector
Camera
switch
Power
switch
Volume
down switch
Volume
up switch
BT/WLAN/GPS
BOTTOM
v1.0
