Nokia Lumia 620

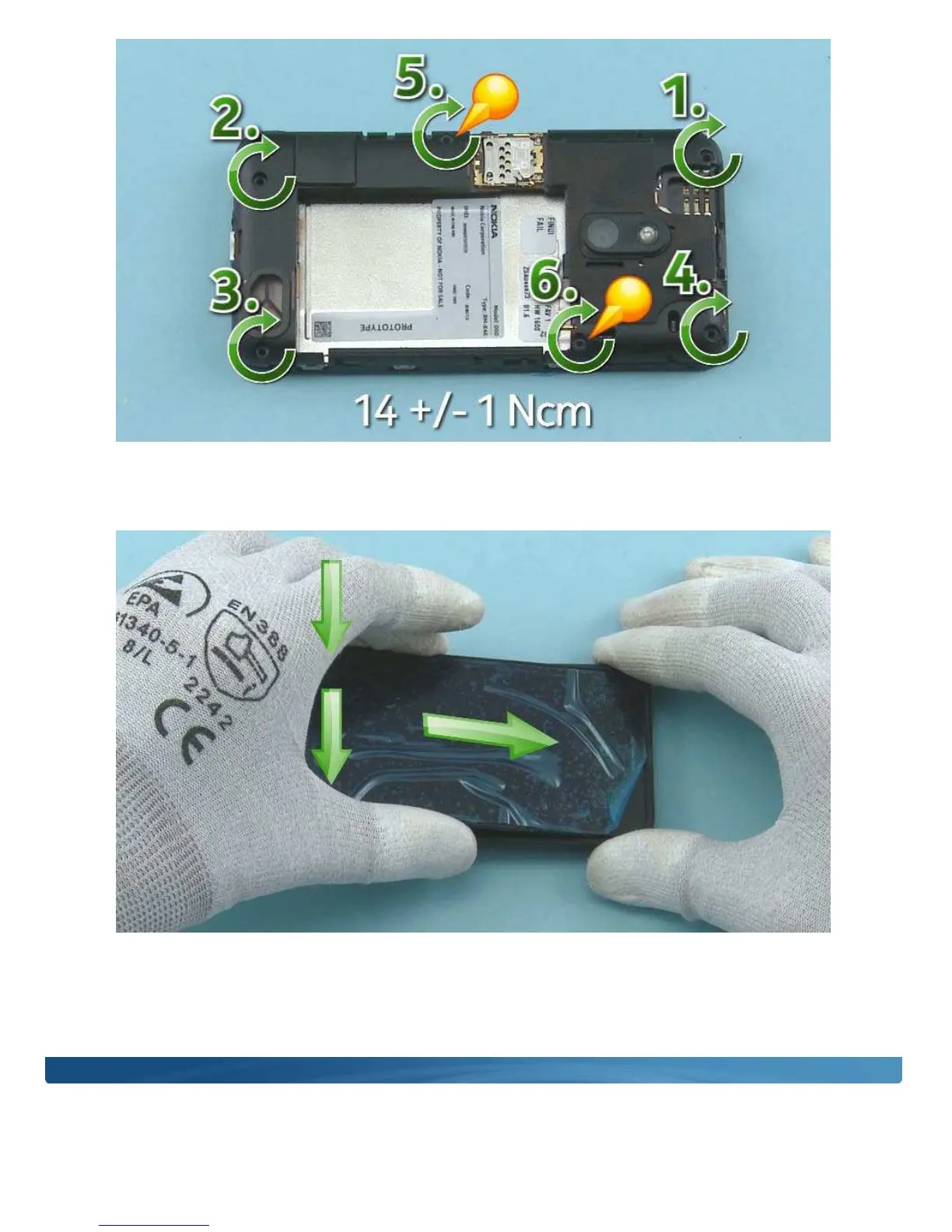

Fasten the six Torx+ size 4 screws to the torque of 14 +/- 1 Ncm. Note that the two screws in the
middle are different type of screws than the other four screws!
Place the device to the BACK COVER bttom end first. Then lower down the top end and press it until it
snaps to place.
