Nokia Lumia 620

Service Manual Level 1 and 2
Nokia Lumia 620
RM-846
Version 1.0
Assembly hints

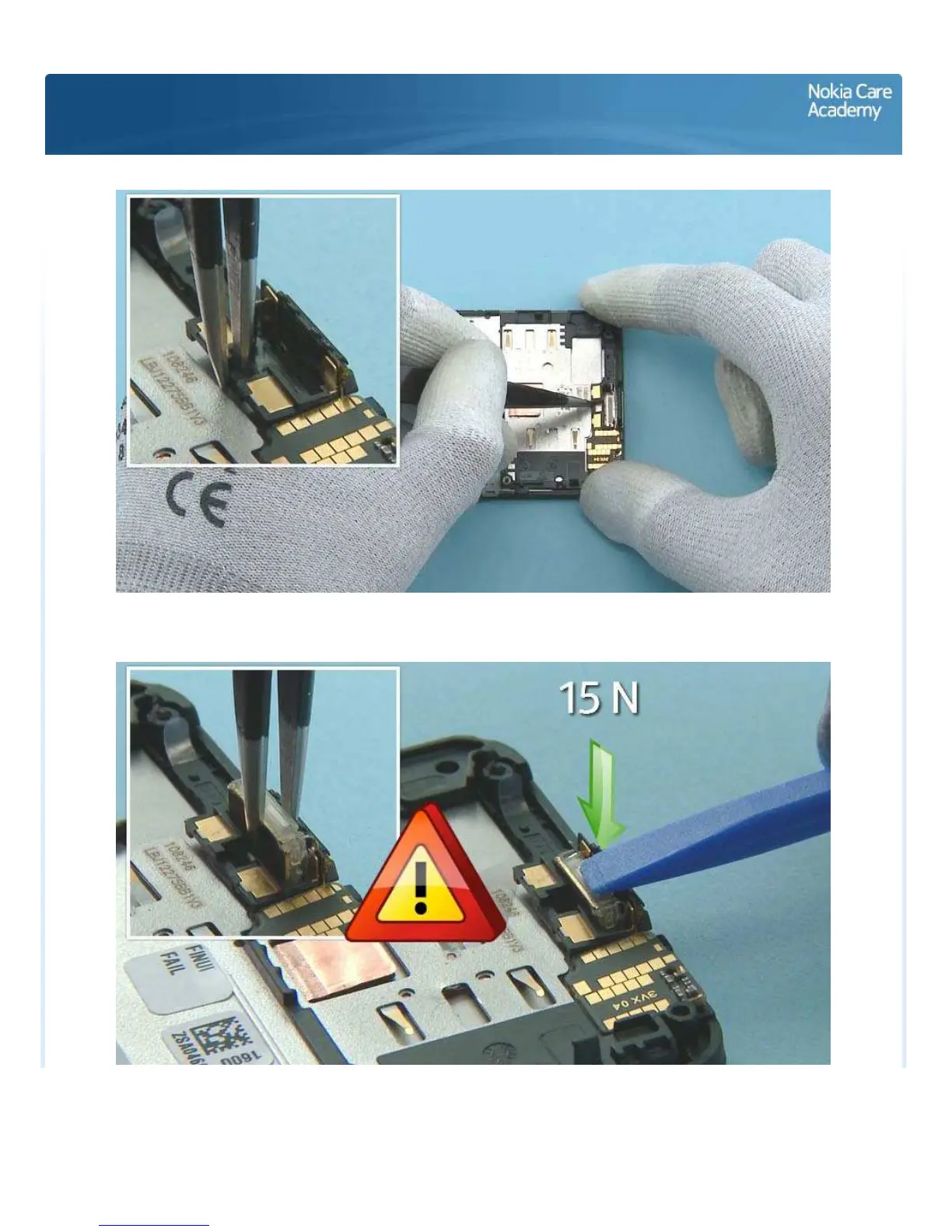

Place the EARPIECE HOLDER with tweezers.
Then place the EARPIECE to the EARPIECE HOLDER with tweezers. Press the EARPIECE gently with the SS-
93 with the maximum pressing power of 15 N. Make sure that the EARPIECE DUSTNET is not misplaced
when pushing the EARPIECE to its place. Be also careful not to damage the EARPIECE springs.
