Nokia Lumia 620

Service Manual Level 1 and 2
Nokia Lumia 620
RM-846
Version 1.0

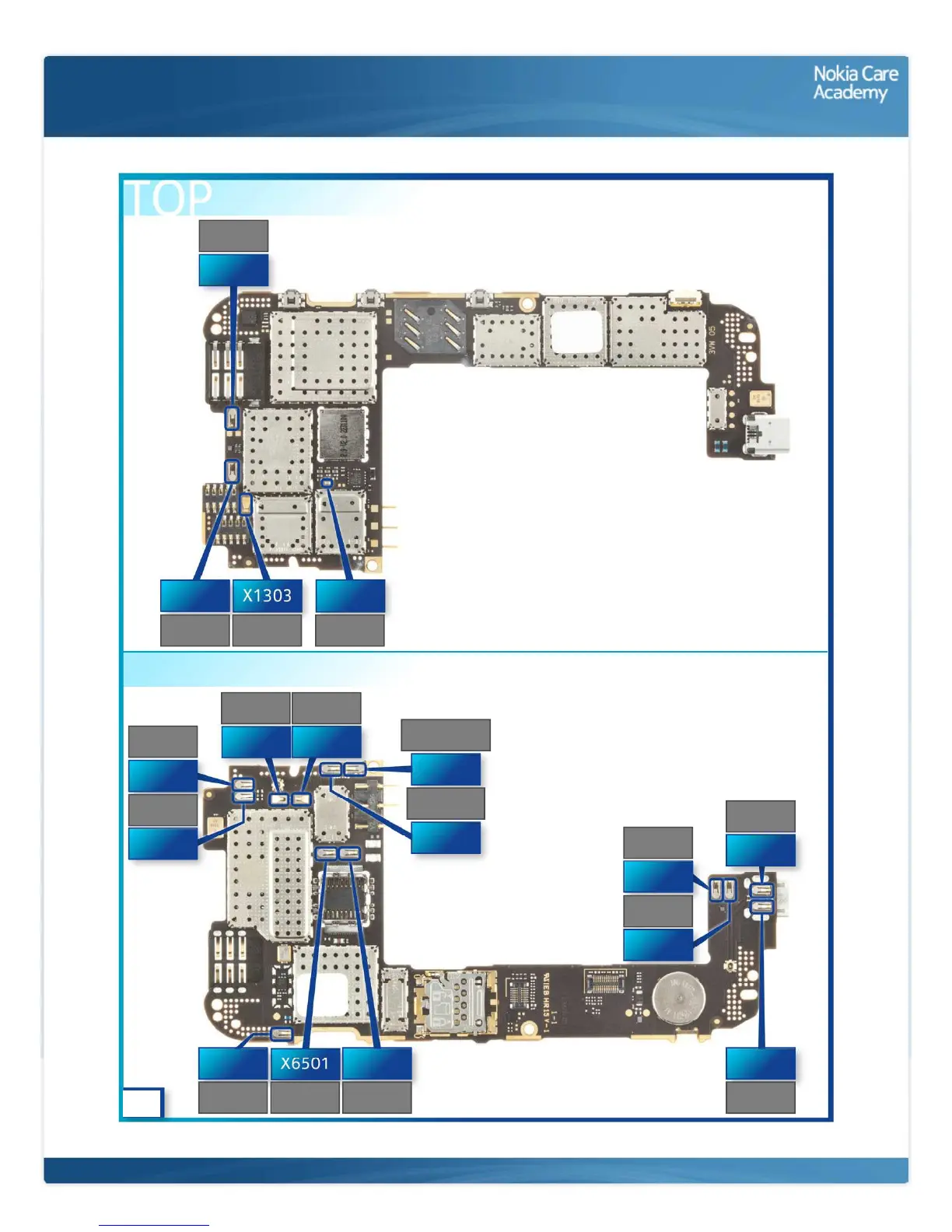

Solder components
X2103
F1400
X2104
X1402 X1401
X6302
X6301
X7751
X7750
X7720 X6500
X2101
X7760
X7761
X2102
Camera
fuse
CDMA GND
Spring
Earpiece
-spring
Earpiece
+ spring
LED Flash
GND spring
LED Flash
spring
BT/WLAN/FM
Ant GND spring
BT/WLAN/FM
Ant spring
Div ant
spring
Div ant
spring
NFC Ant
spring
NFC Ant
spring
GPS Ant
spring
Speaker
+ Spring
Main ant
Spring
Main Ant
GND spring
Speaker
-Spring
BOTTOM
v1.0
