Nokia Lumia 710 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 710
RM-803, RM-809
Version 1.0

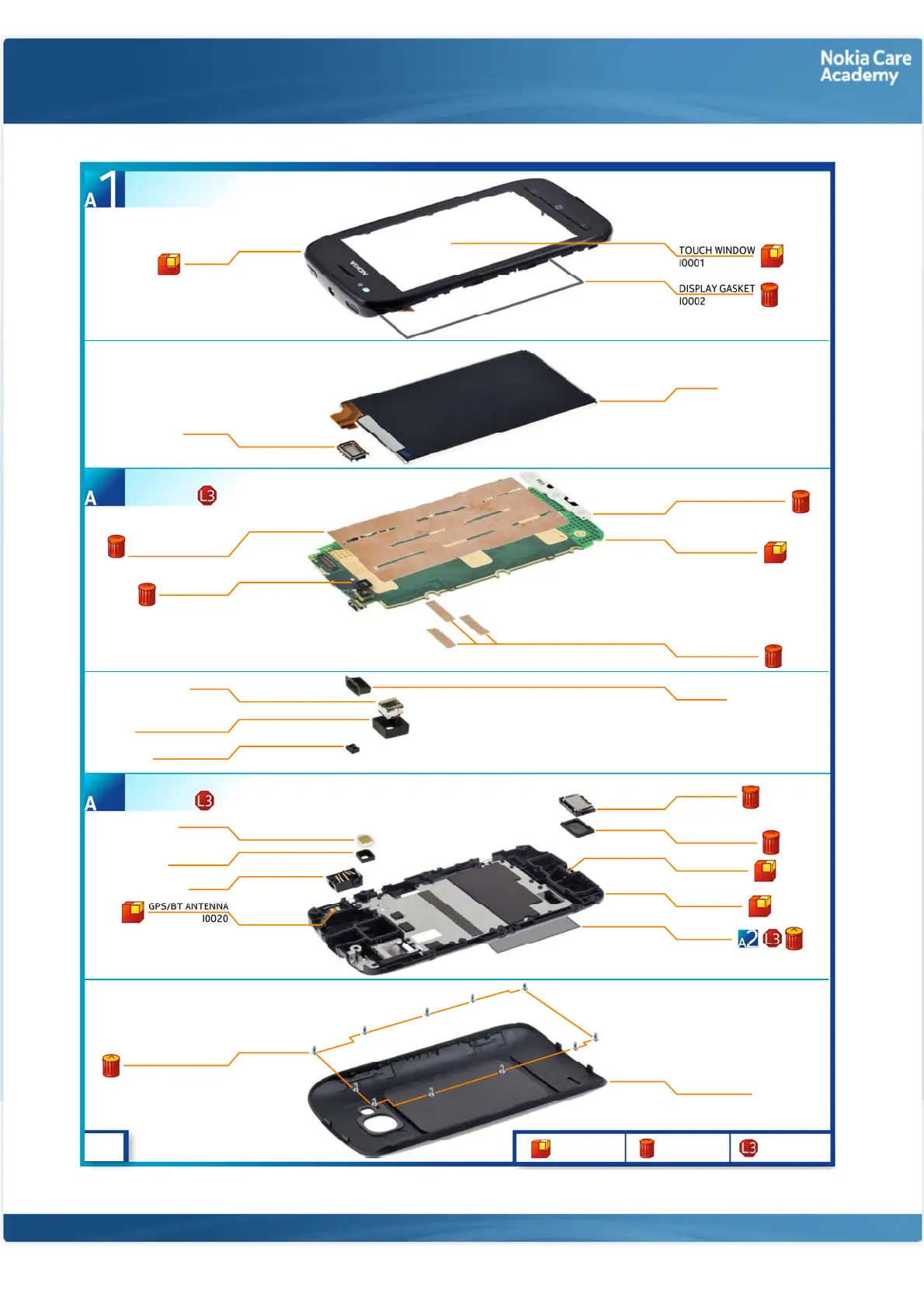

Exploded view
CAMERA
I0013
AV JACK
I0017
EARPIECE
I0003
A-COVER
I0004
DISPLAY CONDUCTIVE
TAPE
I0006
DIPRO GASKET
I0010
CAMERA LENS BOOT
I0014
LED FLASH
I0018
FLASH SUPPORT
I0025
FLASH BOOT
I0019
DISPLAY
I0005
UI KEYMAT DOMESHEET
I0007
IHF SPEAKER
I0015
SHIELD ADHESIVE
I0011
LIGHT SWAP PWB
I0008
SPEAKER GASKET
I0016
USB BOOT
I0012
MAIN ANTENNA
I0021
BATTERY COVER
I0024
MAIN CHASSIS
I0022
TYPE LABEL
I0009
CAMERA CROSS SCREW
I0023
A-COVER ASSEMBLY
(I0001, I0002, I0004)
LIGHT SWAP PACKAGE
(I0006 - I0011)
2
MAIN CHASSIS ASSEMBLY
(I0015 - I0022)
3
v1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2011 Nokia | Confidential | All Rights Reserved.

Nokia Lumia 710 Specifications

General

Panel type	TFT
Display diagonal	3.7 \
Display resolution	480 x 800 pixels
Ringer type	MP3
Internal memory	512 MB
Auto focus	-
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
USB version	2.0
HDMI ports quantity	0
2G standards	EDGE, GPRS
3G standards	HSDPA, WCDMA
Bluetooth version	2.1+EDR
SIM card capability	Single SIM
Mobile network generation	3G
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Personal info management (PIM)	Calculator, Calendar
Audio formats supported	AAC, eAAC+, MP2, MP3, WMA
Form factor	Bar
Product color	Black
Talk time (2G)	6.9 h
Talk time (3G)	7.6 h
Battery capacity	1300 mAh
Standby time (2G)	400 h
Orientation sensor	No
Processor frequency	1.4 GHz
Platform	Windows
Operating system installed	Windows Phone

Weight and Dimensions

Depth	12.5 mm
Width	62.4 mm
Height	119 mm
Volume	81 cm³
Weight	126 g
