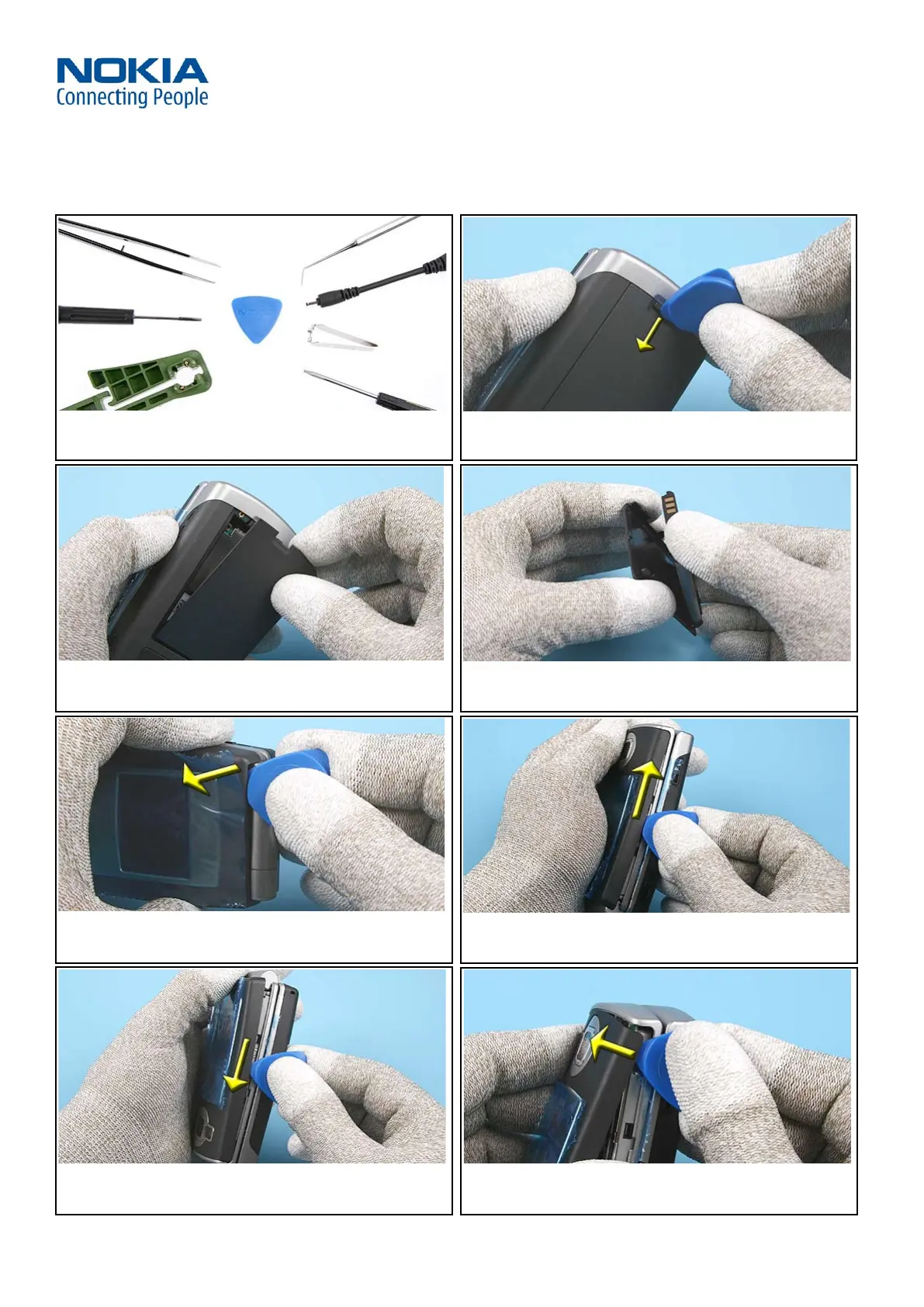

DISASSEMBLY INSTRUCTION11.
1. Needed tools. 2. Unlock the BATTERY COVER.
3. Remove the BATTERY COVER with the BATTERY. 4. Separate the parts from each other.
5. Open the A-COVER ASSY by lifting it with the SRT-6 on the
shown side.
6. Unlock the A-COVER.
7. Unlock the other side of the A-COVER.
8. Release the clips on both sides.
Metal tweezers
SRT-6
SS-51
Camera removal tool
Torx Plus
®
size 5
screwdriver
Slotted screwdriver
Dental tool
SS-15
DC-Plug
