13
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
N77 RM-194/RM-195
Page (35) ISSUE 1
Service Manual Level 1&2

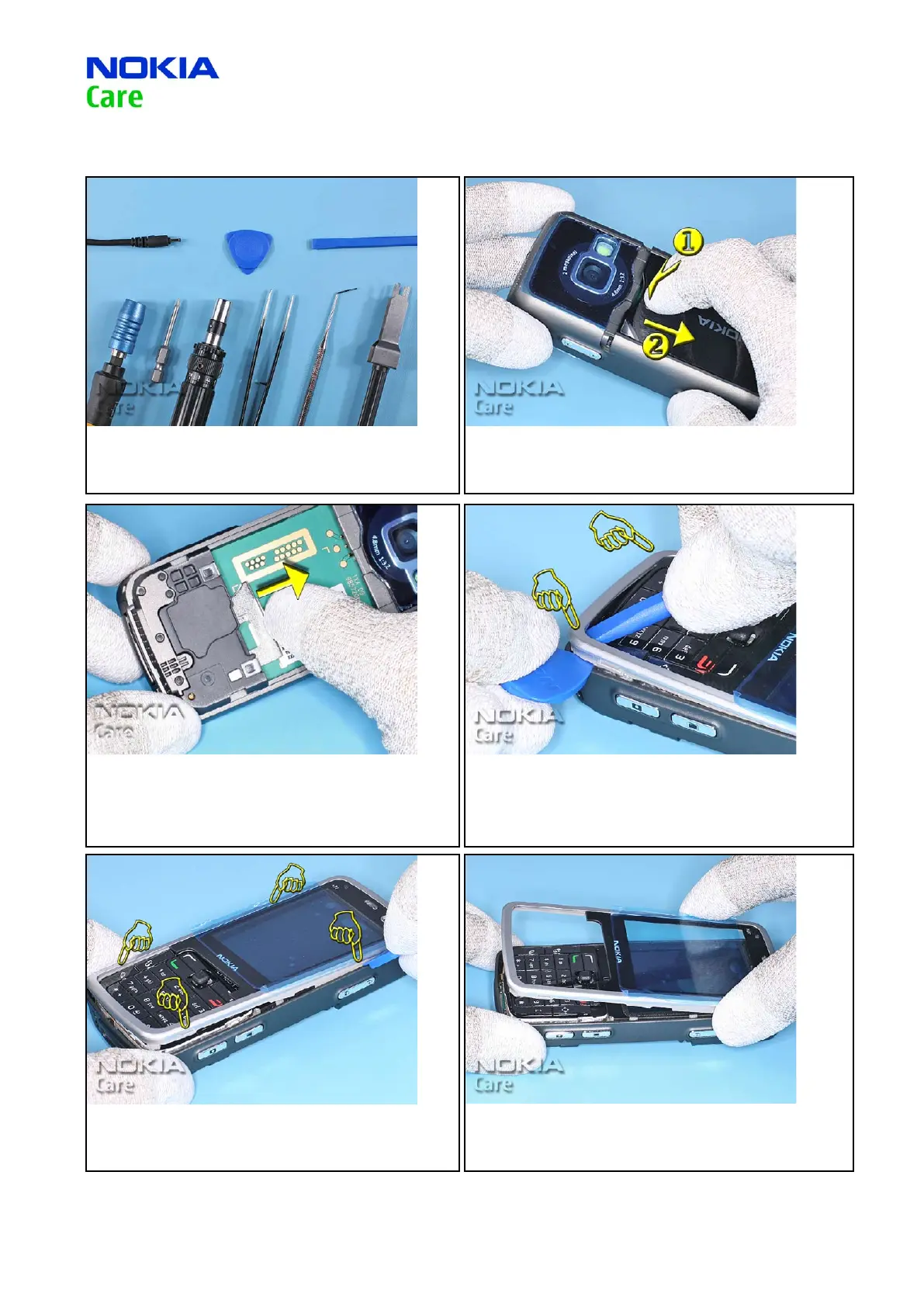

DISASSEMBLY INSTRUCTION14.
1. Needed tools: A Torx driver, a Torx Plus© size 6 bit, a
torque driver, metal tweezers, a dental pick, the SS-45 camera
removal tool, a DC plug, the SRT-6 and the SS-93 opening tool.
2. Cover all sensitive surfaces with a protective lm. Unlock and
open the C-COVER ASSEMBLY. Remove the Battery if inserted.
3. Remove the SIM SLEDGE.
4. Place the SS-93 between the KEYMAT and the edge of the
A-COVER and unlock the buttom clip rst. Hold the SS-93 in the
shown position and unlock the side clip with SRT-6 by pressing it
between the A-COVER and the B-COVER. Do the same on the other
side.
5. Slide the SRT-6 along the marked edges to unlock the snaps.
6. Gently remove the A-COVER from the B-COVER ASSEMBLY.
