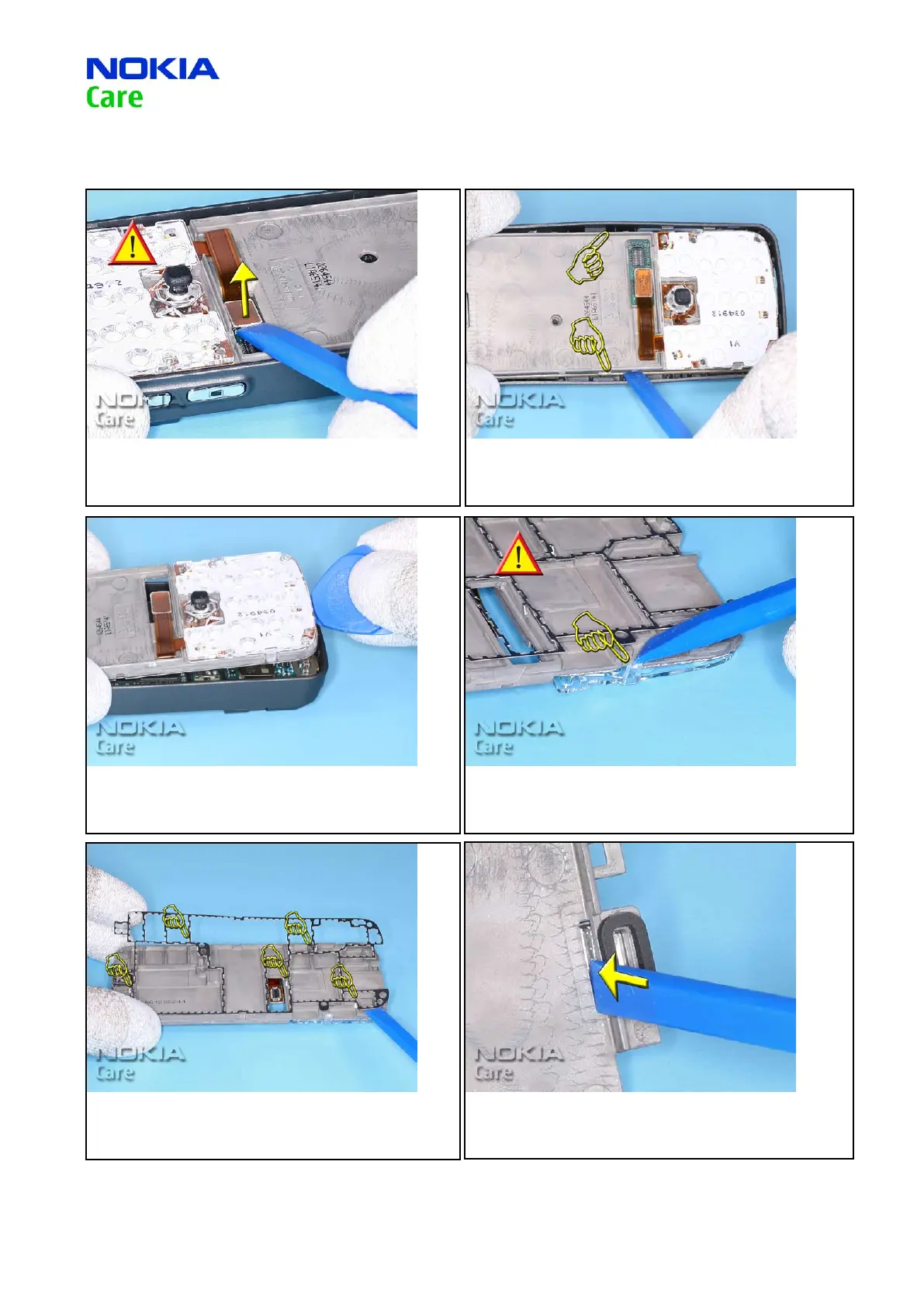

13. Open the UI PWB connector.
14. The UI FRAME is attached with two snaps to the B-COVER.
Unlock the UI FRAME with the SS-93.
15. Lift the UI FRAME a bit with the SRT-6 and remove it.
16. Release the LIGHT GUIDE.
17. Very gently remove the BASEBAND GASKET with the SS-93.
18. Push out the EARPIECE from the UI FRAME as shown.
