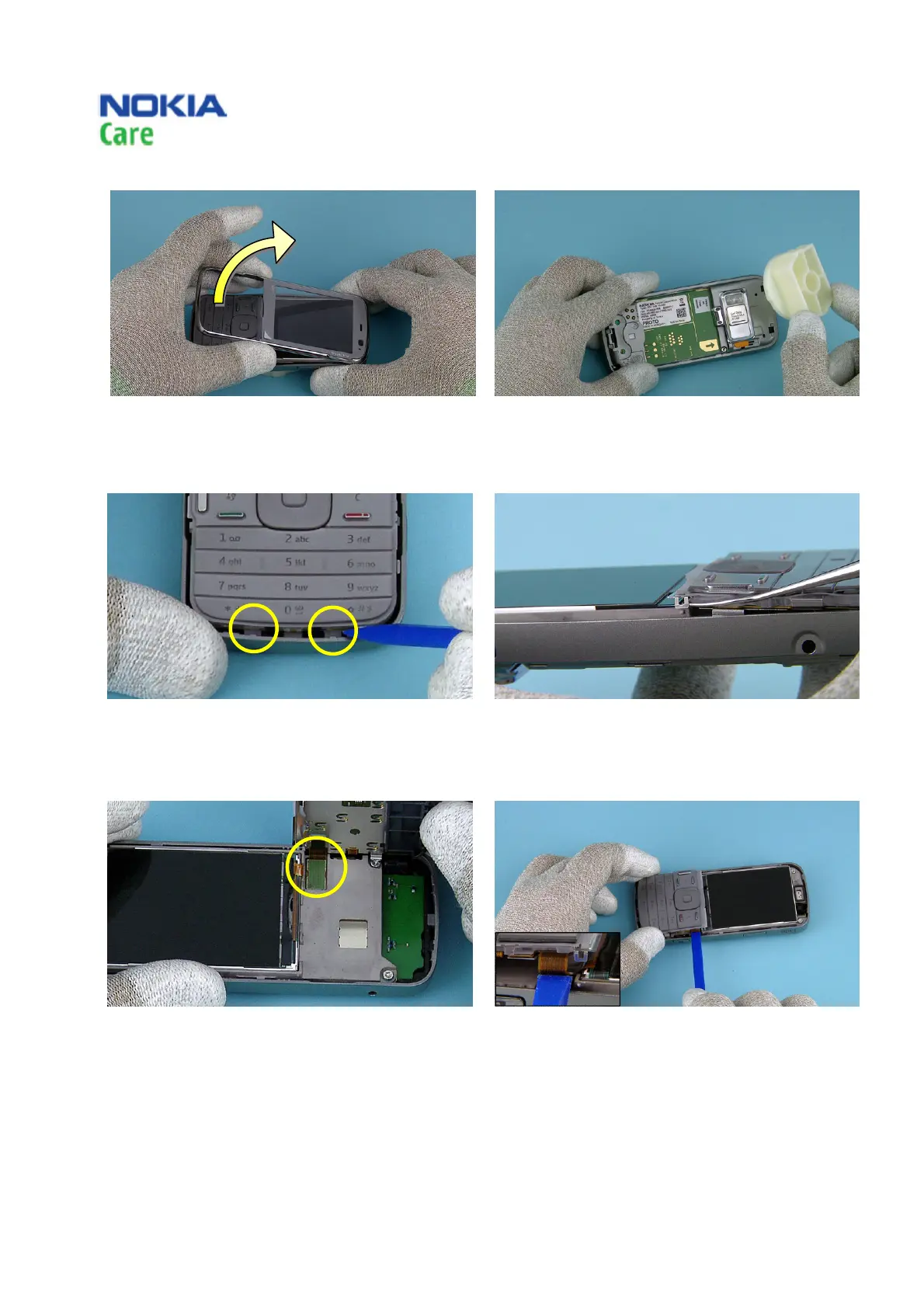

13) Flip the A-COVER in the direction shown.
14) Remove the SS-148.
15) Use the SS-93 to release the UI ASSEMBLY.
16) Use the dental tool to open the small clips on the
sides of the UI ASSEMBLY.
17) The UI ASSEMBLY is connected to the PWB with a
flexboard connector.
18) Open the flexboard connector of the UI ASSEMBLY
with the SS-93 and remove the UI ASSEMBLY.
