Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
13 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

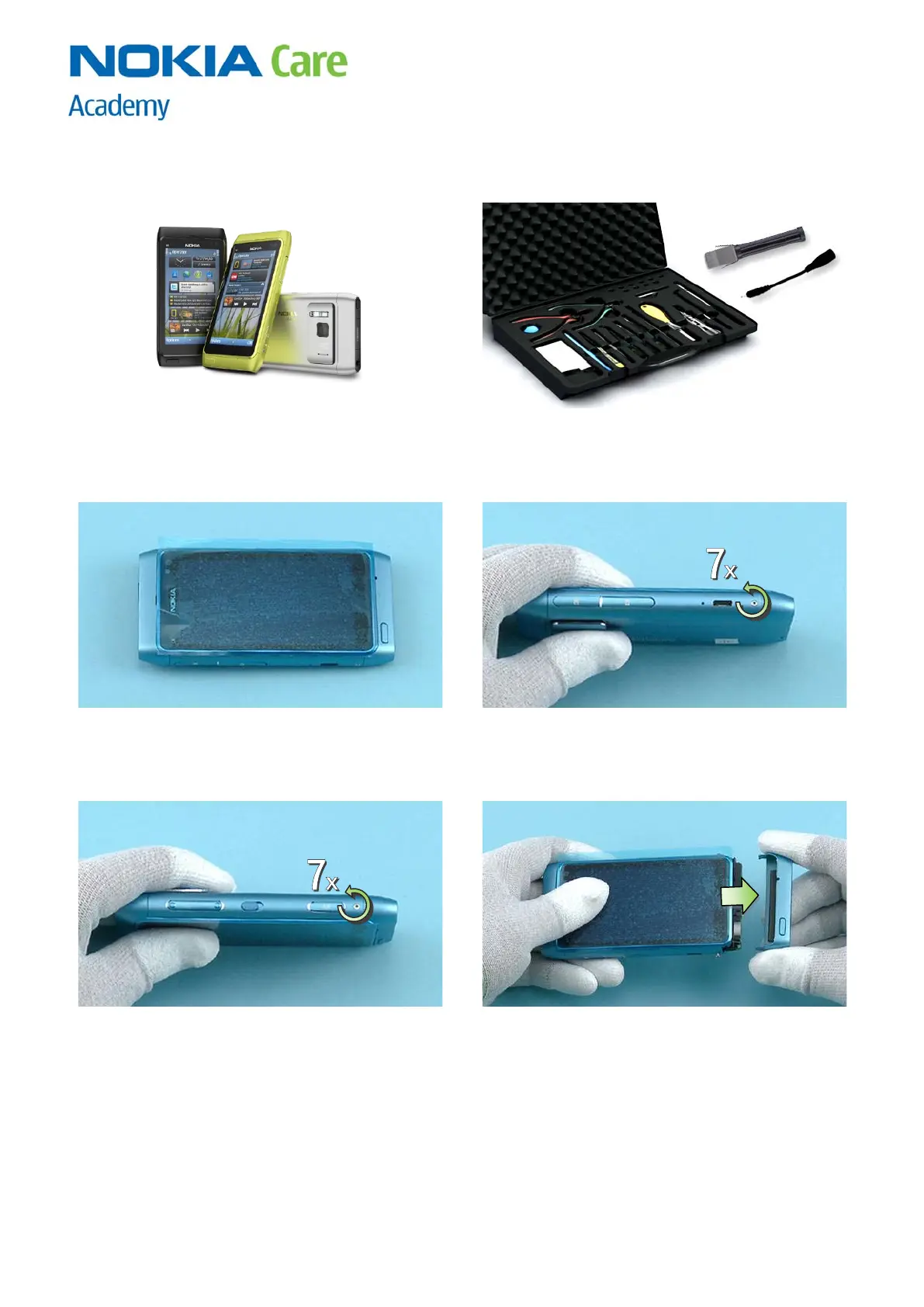

9. DISASSEMBLY INSTRUCTIONS
1) Nokia N8-00 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the camera removal tool SS-182
and the DC plug.
3) Protect the WINDOW ASSY with protective film. 4) Unscrew the Torx+ size 4 screw 7 full turns. Do not
remove the screw completely!
5) Unscrew also the second Torx+ size 4 screw on the
other side of the phone 7 full turns. Do not remove
the screw completely!
6) Pull out the BOTTOM COVER to the direction shown
and remove it.
