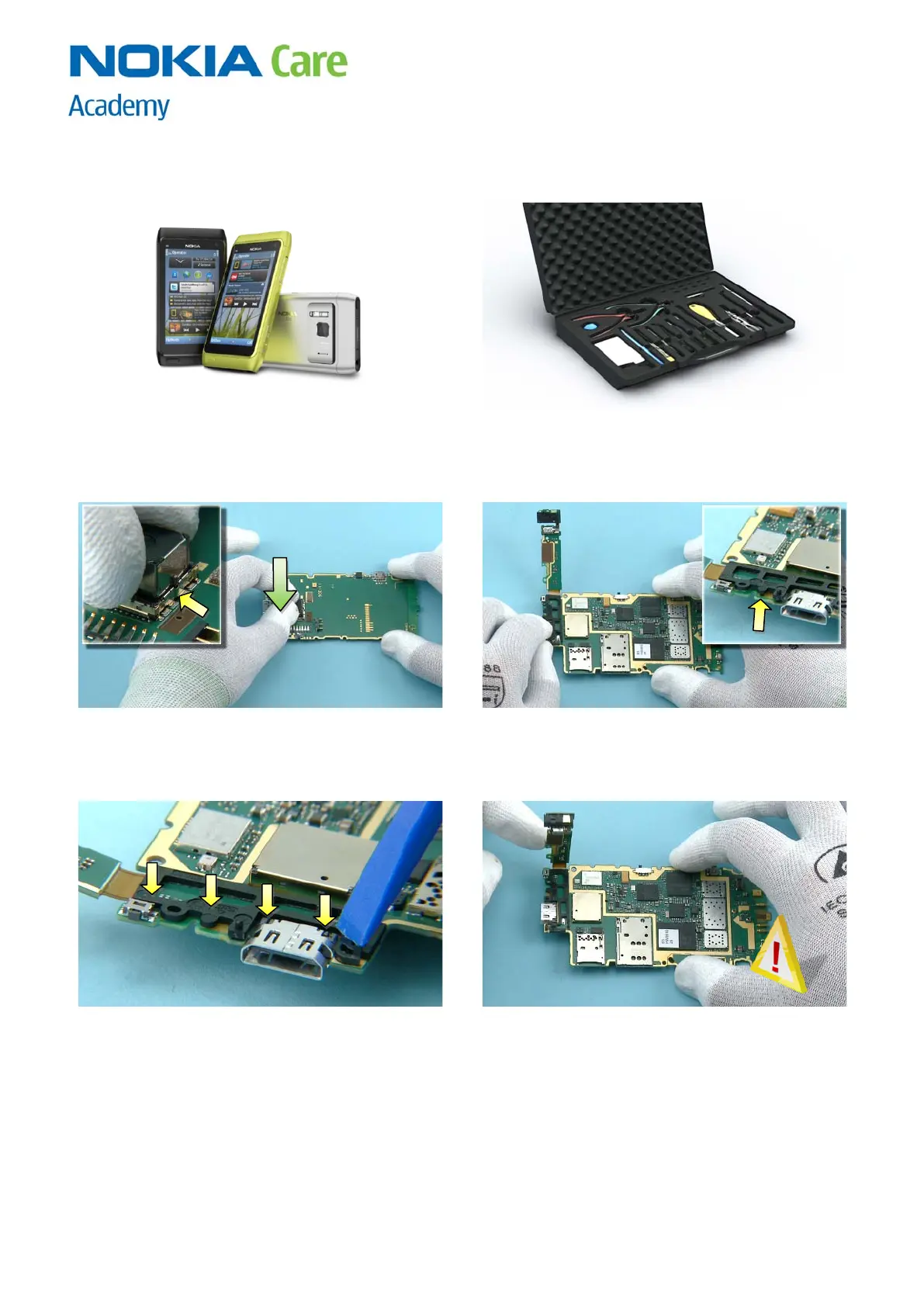

10. ASSEMBLY INSTRUCTIONS
1) Nokia N8-00 assembly. 2) For assembling you need the Nokia Standard
Toolkit version 2.
3) When inserting the CAMERA MODULE, check that
the shown clip is on the same side as the guiding
notch. Press the CAMERA MODULE carefully to attach
the camera retaining clips.
4) Place a new PWB SPACER ASSY to the ENGINE
BOARD by using the shown guiding pin.
5) Press the PWB SPACER ASSY along the edges with
the SS-93 to activate the adhesive.
6) Place the SUB PWB on top of the PWB SPACER ASSY.
Be careful not to damage the flex!
