Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
16 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

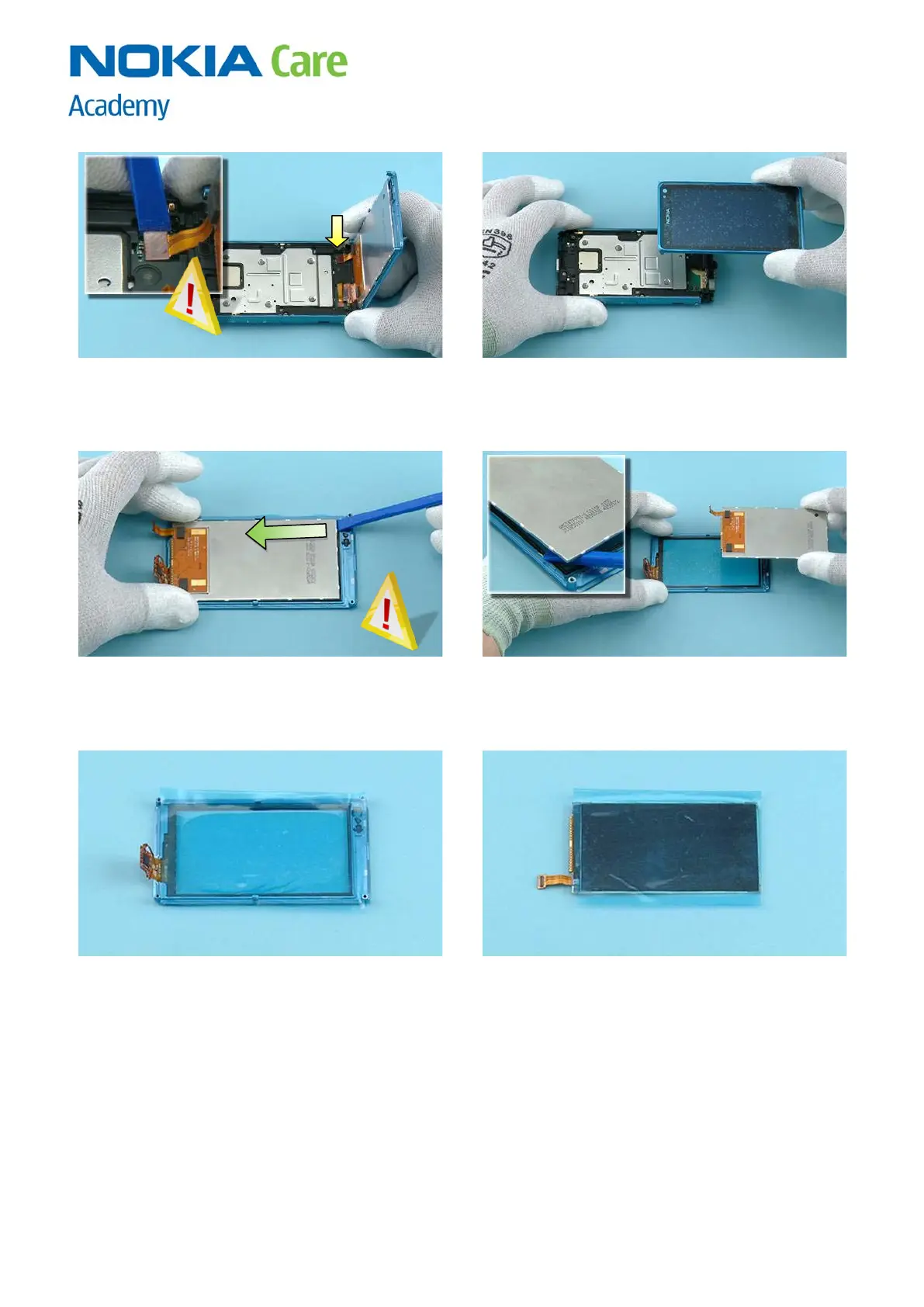

19) Open also the DISPLAY CONNECTOR with the SS-93
by lifting it from the side shown. Be careful not to
damage the connector or components nearby!
20) The WINDOW ASSY can now be separated.
21) Insert the SS-93 between the DISPLAY and the
WINDOW ASSY. Slide the SS-93 to the direction
shown to release one side of the DISPLAY. Be careful
not to damage the DISPLAY while releasing it!
22) Release also the other side of the DISPLAY with
the SS-93. The DISPLAY can now be removed.
23) Protect the other side of the WINDOW ASSY with
protective film.
24) Protect the DISPLAY with protective film.
