Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
15 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

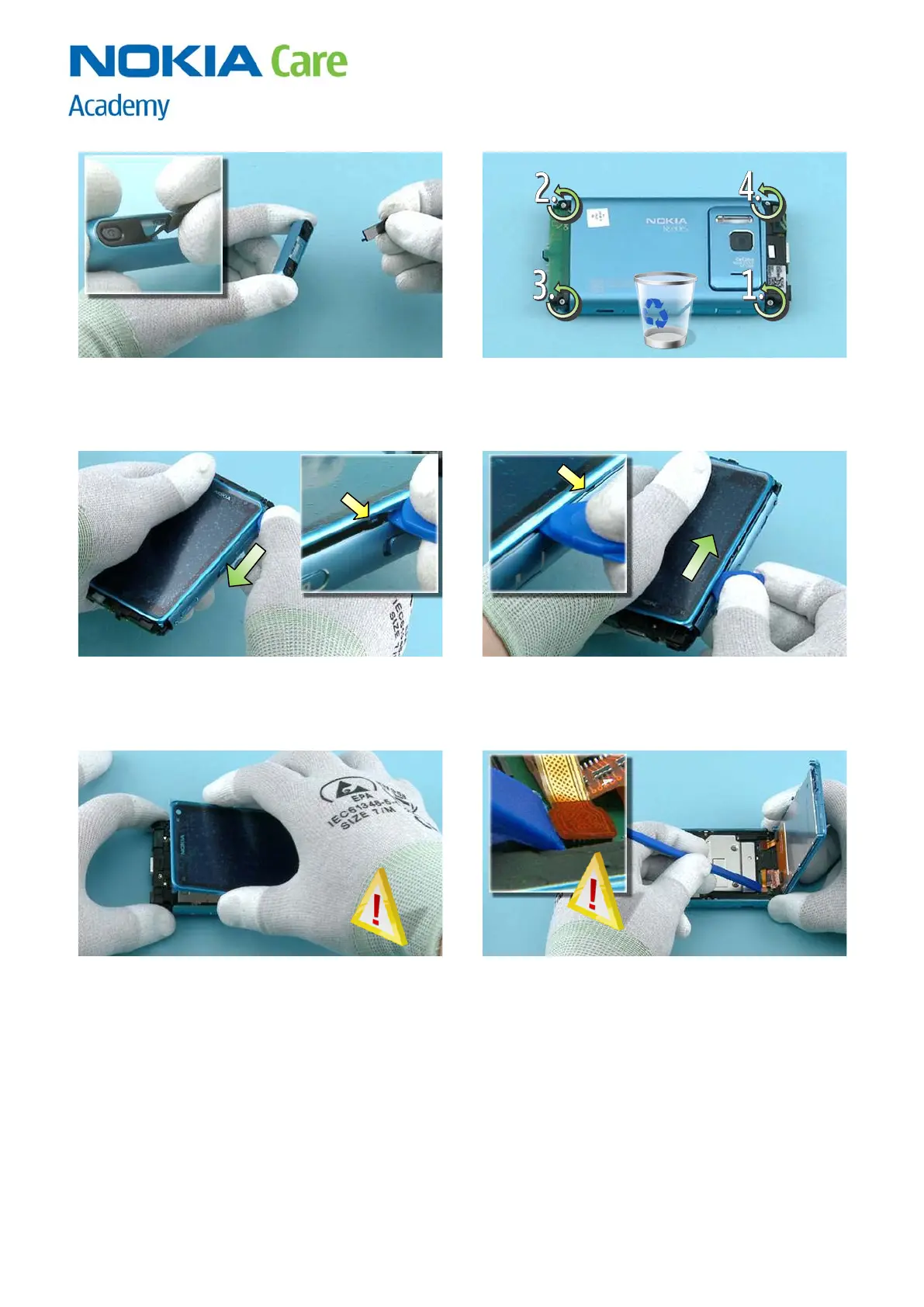

13) Pull out and remove the HDMI HATCH. 14) Unscrew the four Torx+ size 4 screws in the order
shown. These screws cannot be used again. Discard
them.
15) Slide SRT-6 to the direction shown to release the
clip holding the WINDOW ASSY.
16) Release also the second clip on the other side of
the phone by sliding the SRT-6 to the direction
shown.
17) Carefully lift up the top side of the WINDOW ASSY
to gain access to the connectors underneath. Be
careful not to damage the connectors while lifting
up the WINDOW ASSY!
18) Use the SS-93 to open the WINDOW ASSY
CONNECTOR. Be careful not to damage the connector
or components nearby!
