Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
18 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

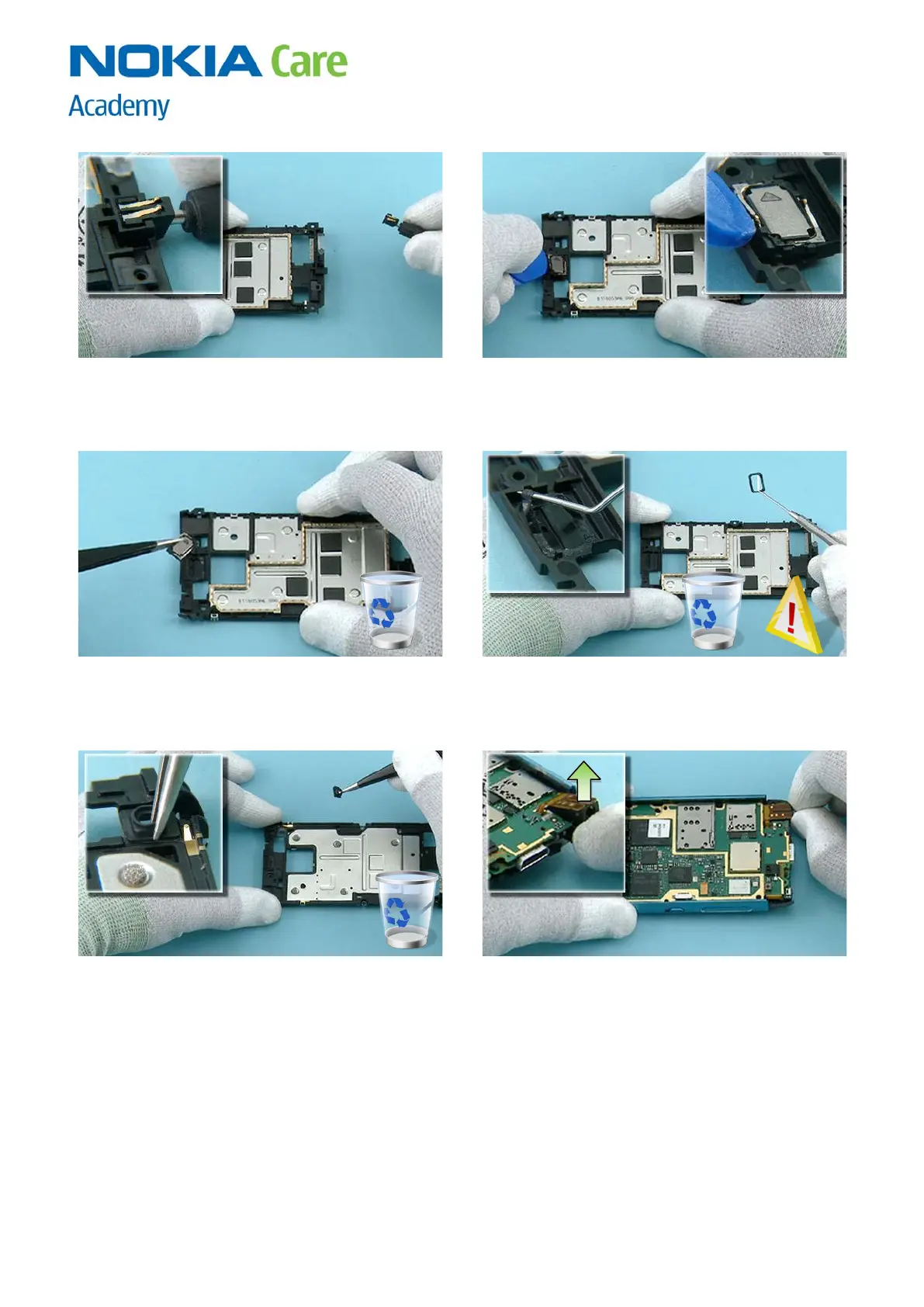

31) Use the DC plug to lift up the DC JACK. 32) Release the EARPIECE with the SRT-6 as shown.
33) Remove the EARPIECE with the tweezers. The
EARPIECE cannot be used again. Discard it.
34) Remove the EARPIECE GASKET with the dental
tool. Be careful not to injure yourself with the sharp
end of the dental tool! The EARPIECE GASKET is not
reusable. Discard it.
35) Remove the FRONT CAMERA BOOT with the
tweezers. Do not use it again. Discard it.
36) Lift up the AV JACK carefully as shown before
releasing the ENGINE BOARD.
