Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
19 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

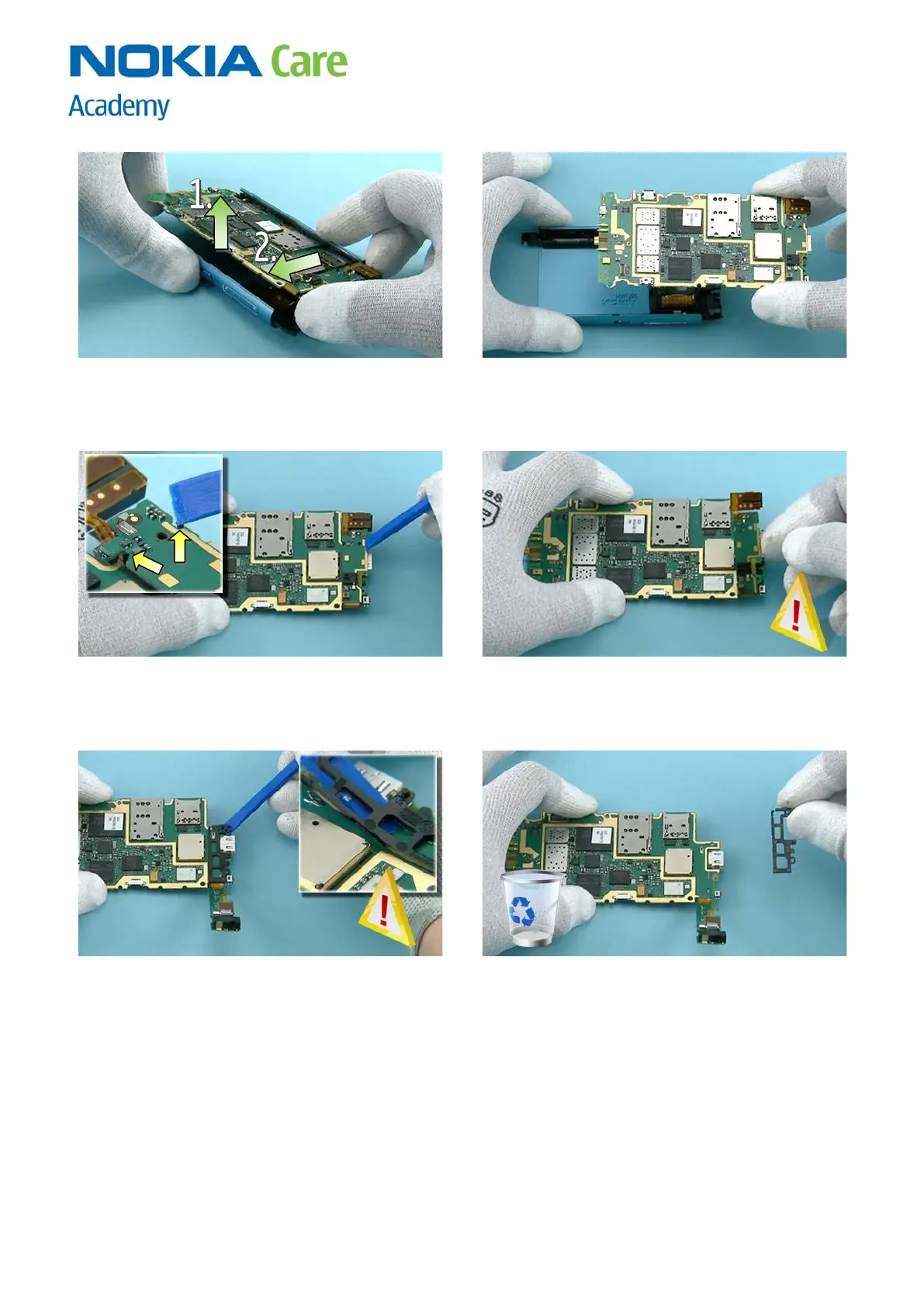

37) To separate the ENGINE BOARD from the BODY
ASSY, lift up the shown side (1). Then pull the ENGINE
BOARD to the direction shown (2).
38) The ENGINE BOARD can now be separated.
39) Open the two clips holding the SUB PWB with the
SS-93.
40) Turn over the SUB PWB. Be careful not to damage
the flex!
41) Use the SS-93 to release the PWB SPACER ASSY. Be
careful not to damage the components nearby!
42) Remove the PWB SPACER ASSY. Do not use it
again.
