Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
20 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

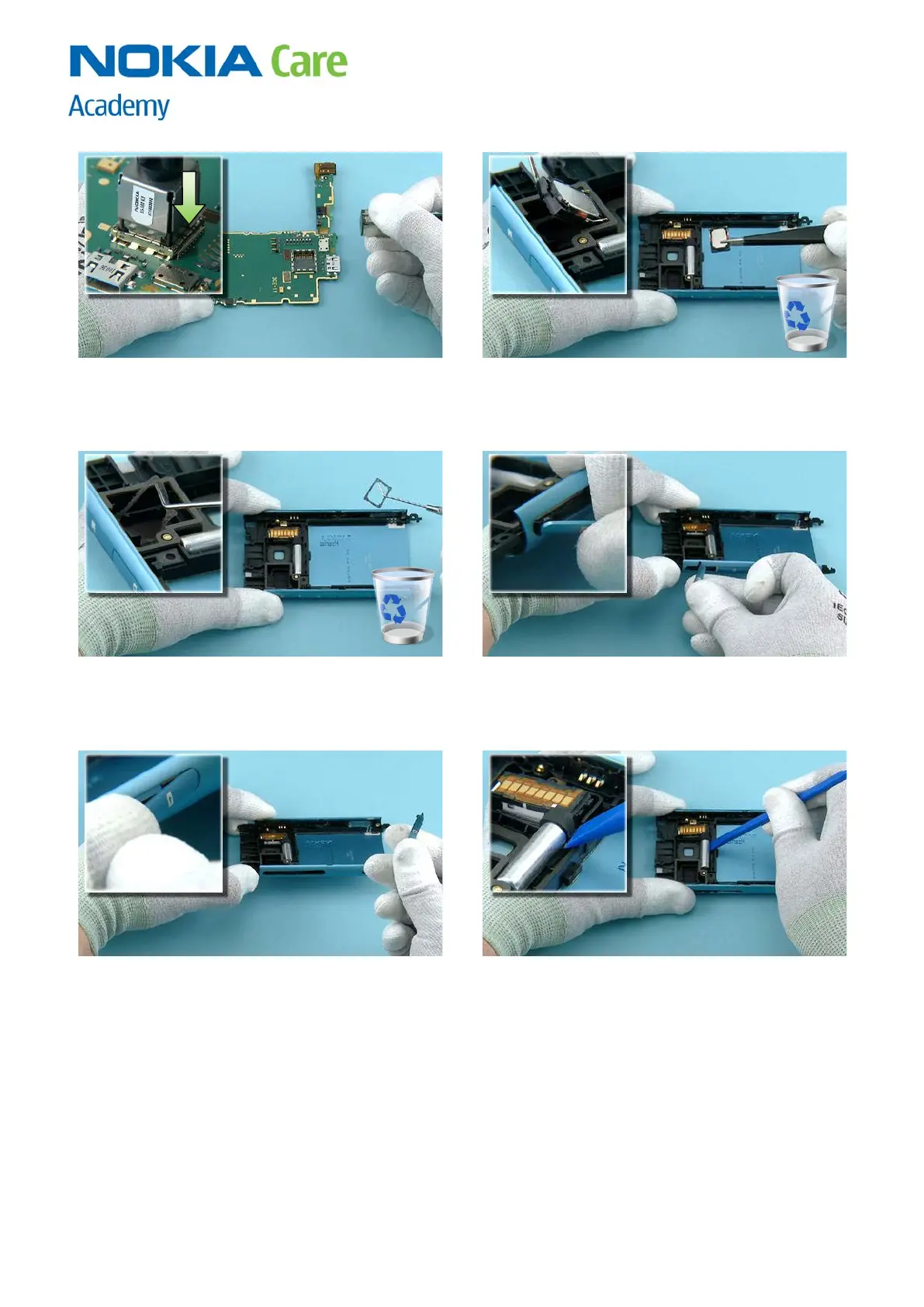

43) To release the CAMERA MODULE, push down the
camera removal tool SS-182 until camera retaining
clips are released. Lift up the SS-182 and remove the
CAMERA MODULE.
44) Release the IHF SPEAKER with the dental tool and
remove it with the tweezers. Do not use the IHF
SPEAKER again.
45) Remove the IHF GASKET with the dental tool. Do
not use it again. Discard it.
46) Pull out and remove the MICRO SD CARD HATCH.
47) Remove also the SIM CARD HATCH. 48) Carefully lever out the FLASH MODULE with the SS-
93.
