Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
21 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

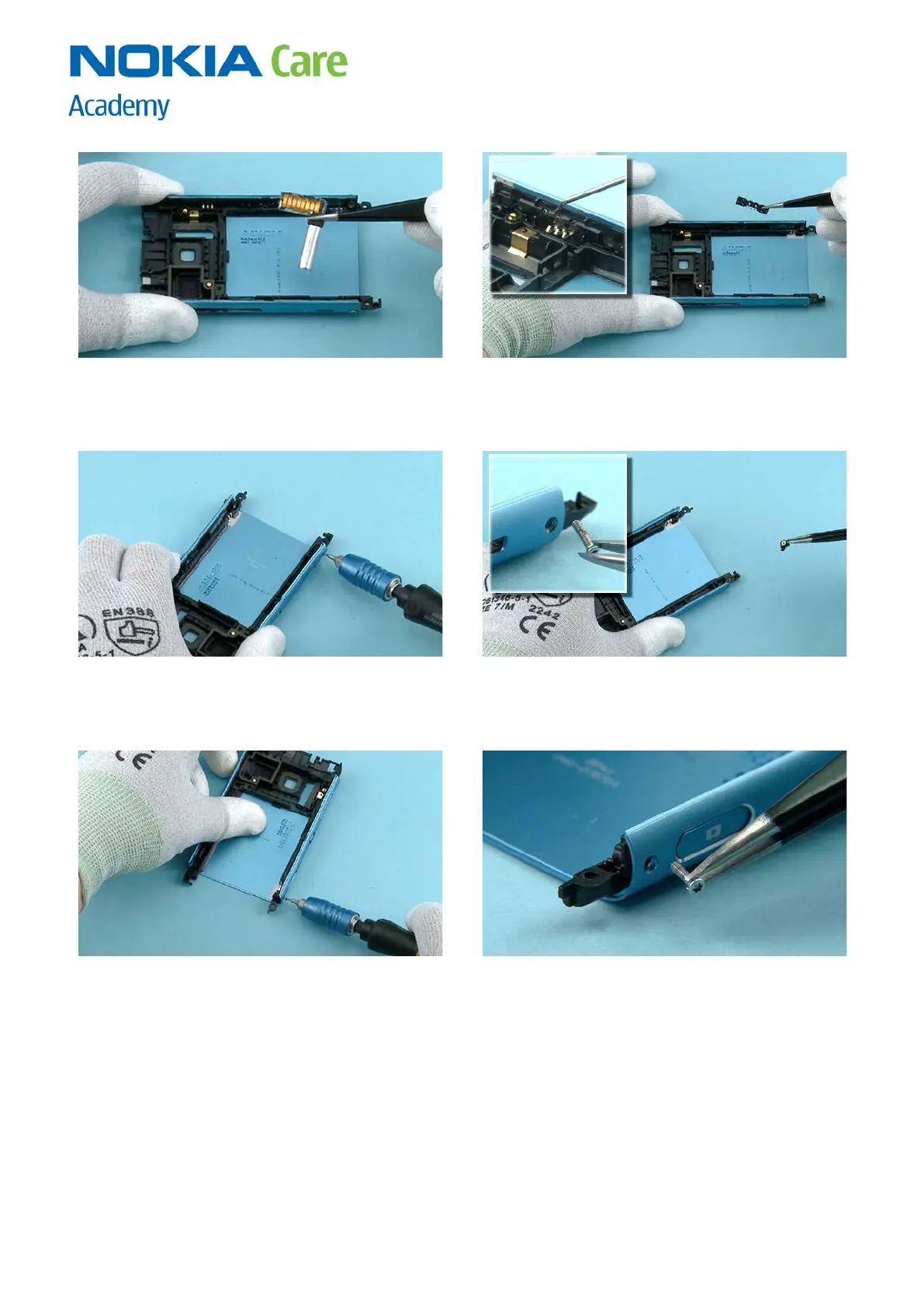

49) Remove the FLASH MODULE with the tweezers. 50) Release the SIDE SWITCH with the dental tool.
Remove it with the tweezers.
51) Unscrew the Torx+ size 4 screw to release the
FIXING NUT.
52) Remove the screw and the FIXING NUT with the
tweezers.
53) To release the second FIXING NUT, unscrew the
Torx+ size 4 screw.
54) Remove the screw with the tweezers.
