Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
31 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

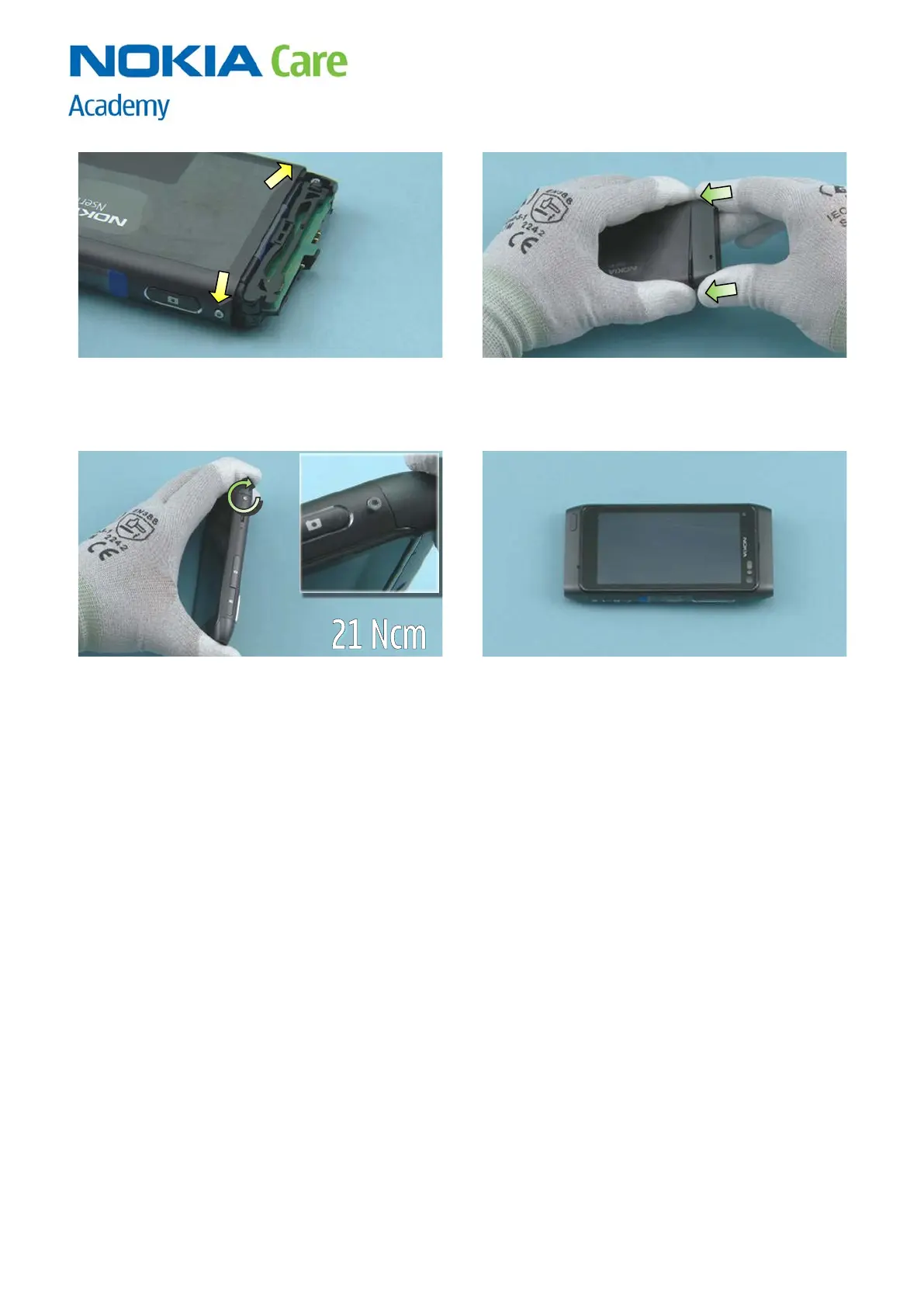

49) Press and hold both of the two shown screws in. 50) Then place the BOTTOM COVER as shown and
press it into its place. If the BOTTOM COVER does not
go in properly, loosen up the side screws a bit.
51) Hold the BOTTOM COVER in its place and tighten
the TORX + size 4 screws to the torque of 21 Ncm on
both sides.
52) Nokia N8-00 assembly is now complete.
-END OF ASSEMBLY-
