Nokia N8–00

Confidential Copyright © 2011 Nokia Only for training and service purposes

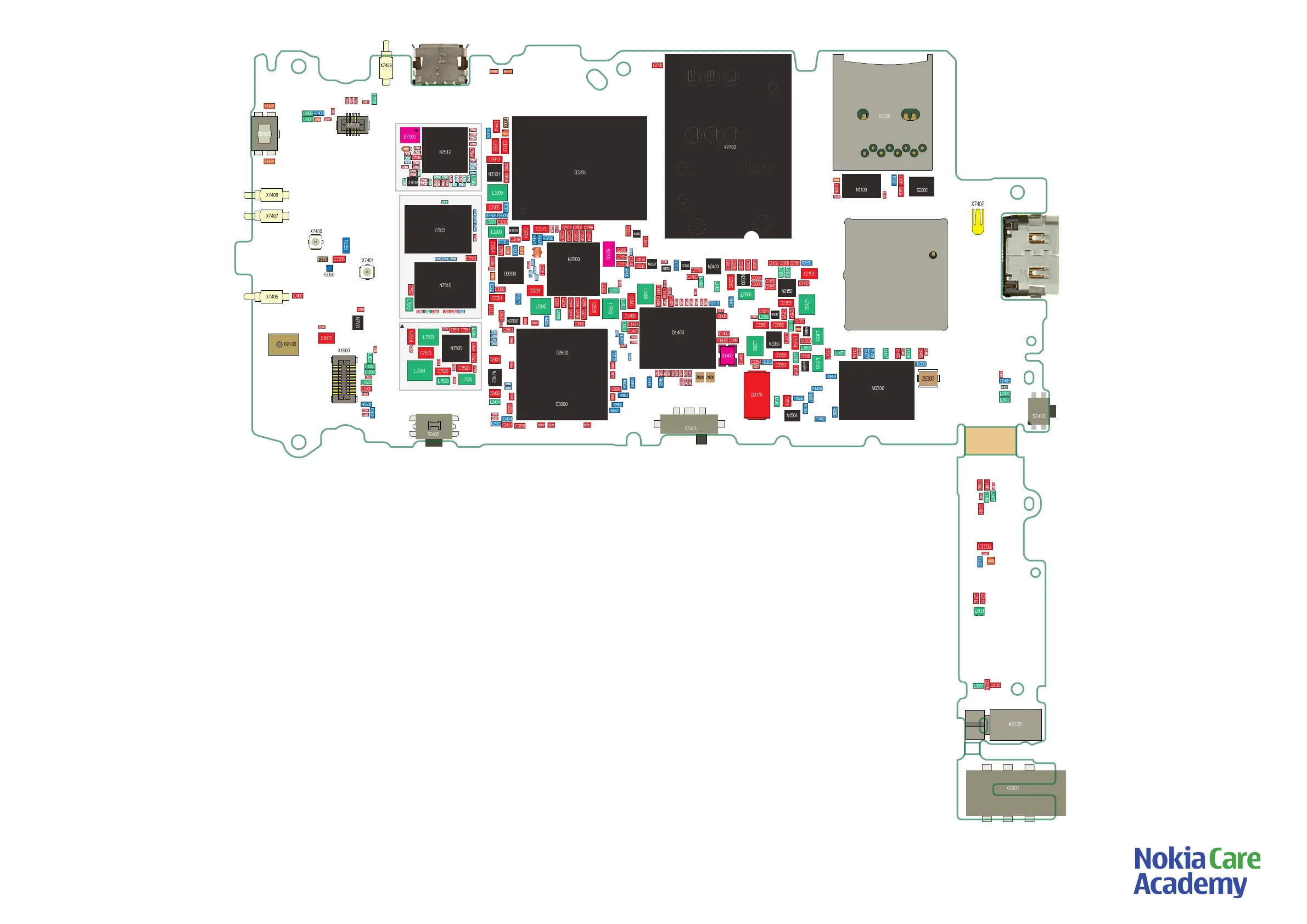

Page 12 (13) | Component link layout top | N8-00 RM-596 | Board: 3CE_14 | v3.0 | 11.04.2011
uSD
Power
key
X1650
X3300
High/Low band antenna GND spring
High band antenna spring
High band antenna
test conn
HDMI conn
Low band antenna
test conn
Low band antenna spring
Primary Mic
Menu key
ÄLLI
QuBBE
UKKO
AURA
USB
module
GAZOO
RAPUYAMA
Page 3
Page 4
Page 2
Page 3
Page 5
Page 6
Combo Memory
Imaging processor
IHF
amplifier
Charger
SMPS
32.768 MHz
19.2 MHz
HW reset
Headphone amplifier
eMMC switch
ASIP
Analog
switch
eMMC
SIM
Backup
battery
3D
accelerometer
BOB
38.4 Mhz
Display conn
Level shifter
Camera key
Lock key
VCAM_1V8
regulator
LED flash
driver
VCAM_2V8
regulator
VHDMI
regulator
USB conn
Body GND spring
Touch panel conn
SAW filter
LED driver
Audio clock
VMEM2 regulator
USB SMPS
Eflex GND spring
Bandpass filter
AV conn
VIBRA
