Nokia N8–00

Confidential Copyright © 2011 Nokia Only for training and service purposes

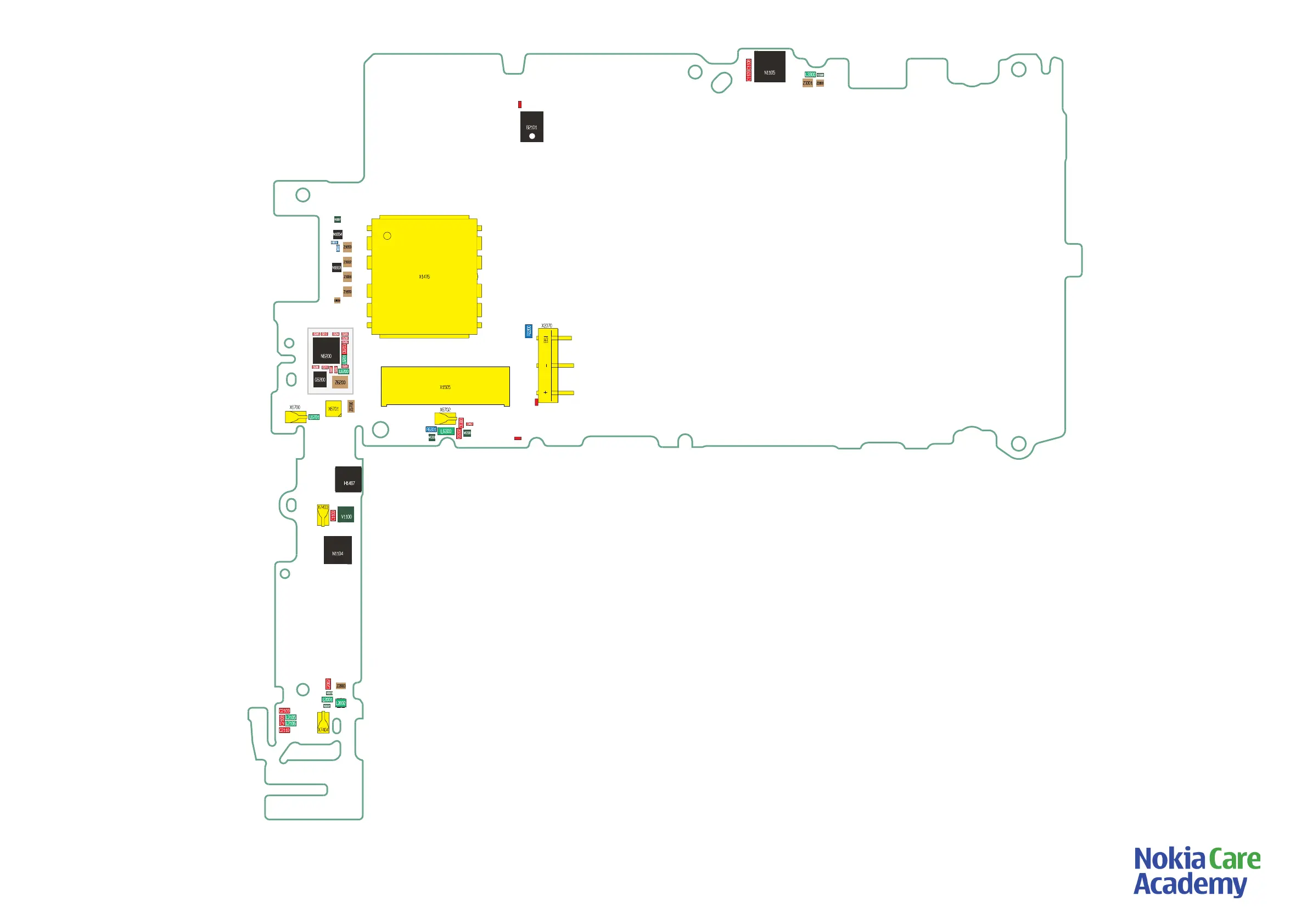

Page 13 (13) | Component link layout bottom | N8-00 RM-596 | Board: 3CE_14 | v3.0 | 11.04.2011
C2413
C2071
C2101
Video
MIC
Main camera
conn
Control bus ASIP
Data bus
ASIP
GPS
module
16.368 MHz
BT/WLAN/GPS
antenna spring
BT/WLAN/GPS
antenna
test conn
Secondary
camera
ALS
Window frame
GND spring
Window frame
GND spring
ASIP
Proximity
sensor
Diplexer
FMTX
antenna
spring
Xenon flash conn
Battery conn
3D
magneto-
meter
Current
sense
resistor
