Nokia N82 - Exploded View

7
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
N82 RM-313/RM-314
Page (22)
ISSUE 1
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

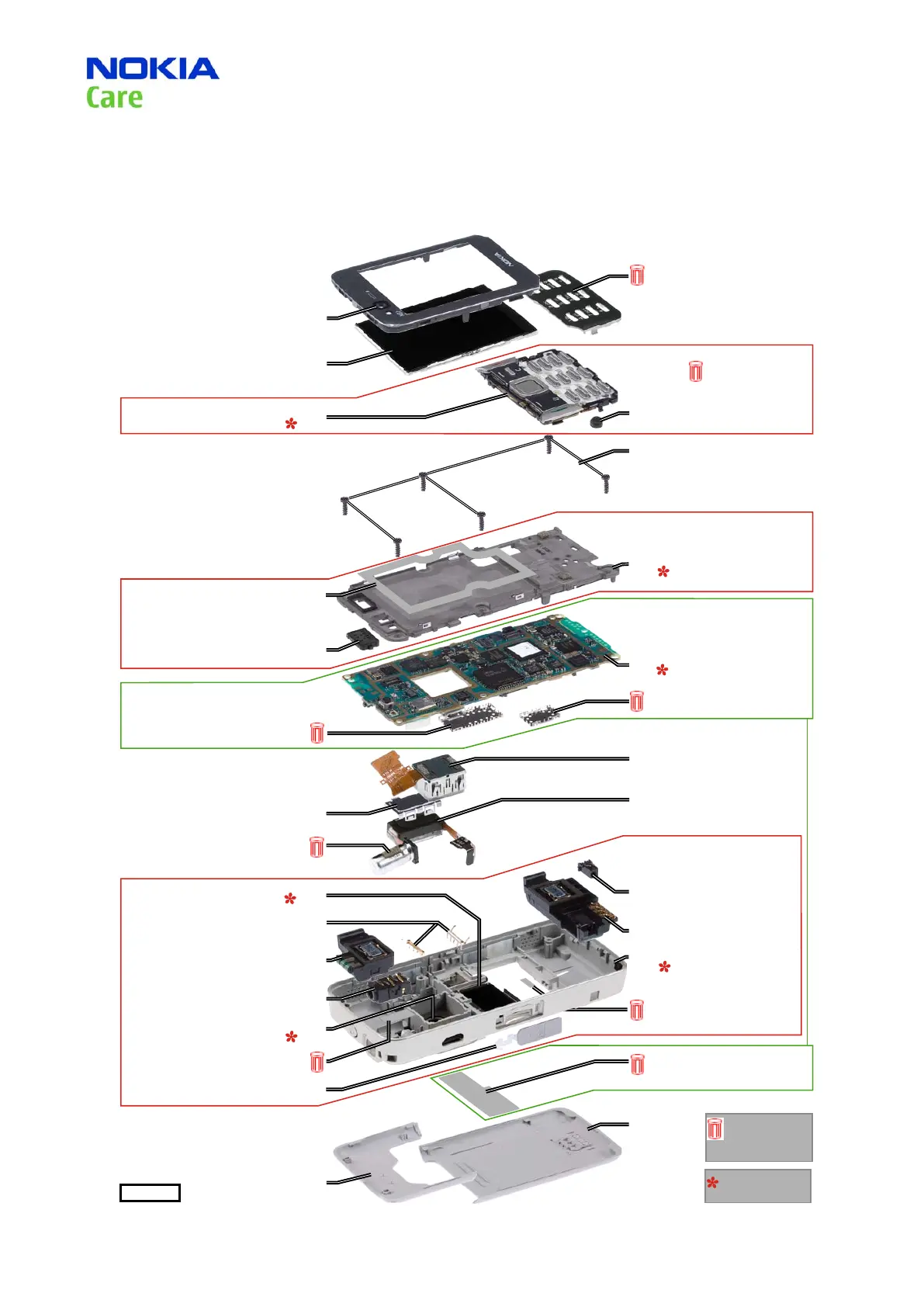

EXPLODED VIEW8.
= only available as
assembly
Ver. 3.0
LIGHT SWAP PWB/ ENGINE MODULE (A3)
I0009
UI MODULE (A1)
I0004
MICROPHONE (A1)
I0005
EARPIECE (A2)
I0008
DISPLAY ADHESIVE (A2)
I0029
WINDOW ASSY
I0001
LCD AM 240x320 16MCO BRIXTON
I0002
MAIN FRAME (A2)
I0007
D-COVER ASSY
I0027
C-COVER ASSY
I0028
CONN CHR DIA 2.0mm (A4)
I0022
ANTENNA CELLULAR ASSY (A4)
I0021
CAMERA MOD 5M AF SHARK incl. FlexA
I0013
FLASH HOLDER
I0014
FLASH MODULE
I0015
CAPACITOR GROUNDING GASKET
I0016
= These parts can
not be reused
after removal.
N82 RM-313/ RM-314 EXPLODED VIEW
KEYMAT COVER
I0003
A1=UI ASSY WT
(I0004-I0005)
6xSCREW M1.8x6
I0006
WLAN SHIELD LID (A3)
I0011
SD BUNG (A4)
I0023
B-COVER (A4)
I0024
CAMERA REVEAL (A4)
I0025
LABEL PLATE (A4)
I0026
CONN AUDIO DC12V 1A
DIAMETER 3.5mm (A4)
I0017
ANTENNA GPS ASSY (A4)
I0018
CAMERA GROUNDING SPRING (A4)
I0019
CAPACITOR ADHESIVE (A4)
I0020
TYPE LABEL (A3)
(LEVEL 3&4 ONLY)
I0012
WATER INGRESS LABEL (A4)
(LEVEL 3&4 ONLY)
I9998
IHF AMP SHILED LID (A3)
I0010
A2=MAIN FRAME ASSY
(I0007-I0008, I0029)
A3=LIGHT SWAP PACKAGE
(I0009-I0012) (LEVEL 3&4 ONLY)
A4=B-COVER W/T
(I0017-I0026, I9998)
